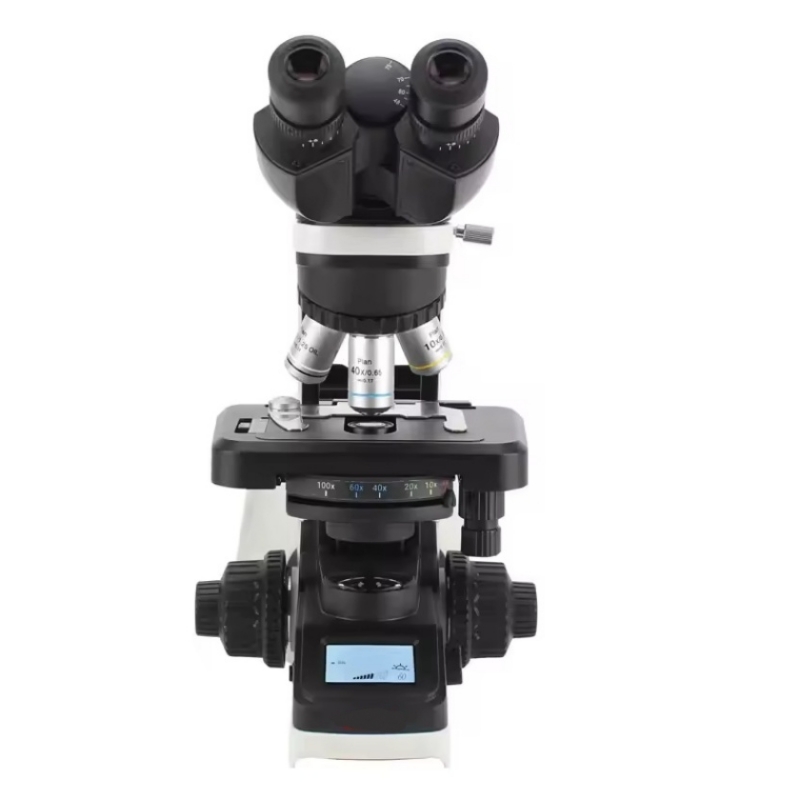

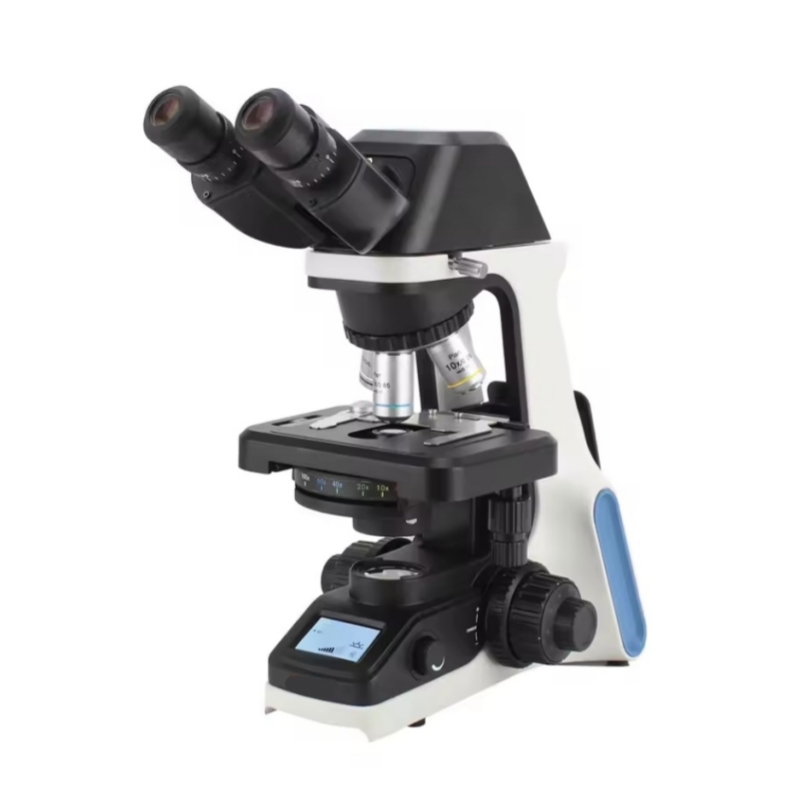

Biological Microscope QS AX-400
The AX-400 microscope features an Infinity Optical System, paired with infinity flat-field achromatic objectives (4×, 10×, 40×, 100×—with 20×/60× optional) and a 10× (22mm field) eyepiece.
Its 5-hole inward converter ensures precise objective switching, while a pendulum condenser (NA0.9/0.25) and 6V/30W halogen illumination (with aspherical collector) deliver sharp, high-contrast imaging—ideal for detailed laboratory observations.
With optional accessories like C-mount interfaces (1X/0.5X), darkfield devices, and fluorescence attachments (XY-400/XY-LED), the AX-400 adapts to specialized tasks—from polarimetry to fluorescence imaging.
Category | Specific Configuration | AX-400 |
|---|---|---|
Optical System | Infinity Optical System | ● |
Viewing Head | Hinged trinocular head, 30° tilt, tracking distance 48-75mm | ● |
Objective (Optics) | Infinity flat field achromatic objective 4X,10X,40X,100X | ● |
Resolver | Inward-facing 5-hole converter | ● |
goggles | Eyepiece with large field of view EW10X/22, mirror ∅30 | ● |
objective (optics) | Infinity flat field achromatic objective 20X,60X | character used in Taiwan as a substitute for a real name (like "X" in English) |
Spotting Scope | Pendulum Spotting Scope NA0.9/0.25 | ● |
Focusing System | Coaxial coarse and fine focusing mechanism, fine adjustment grid value 0.001mm, coarse travel 37.7mm per turn, fine travel 0.2mm per turn, focusing range 17mm | ● |
Litter-Bearing Platform | Double-deck movable platform, size 216x152mm, travelling range 78x57mm. | ● |
Illumination | Aspherical light collector, 6V/30W halogen lamp | ● |
Illumination | Aspherical light collector,24V/100W halogen lamp | character used in Taiwan as a substitute for a real name (like "X" in English) |
Illumination | 3W LED light | character used in Taiwan as a substitute for a real name (like "X" in English) |
Attachment | Photographic accessories | character used in Taiwan as a substitute for a real name (like "X" in English) |
Attachment | C-Mount Camera Interface C Mount 0.5X | character used in Taiwan as a substitute for a real name (like "X" in English) |
Attachment | polariser | character used in Taiwan as a substitute for a real name (like "X" in English) |
Dark Field Device | Oil-type dark-field spotting scopes | character used in Taiwan as a substitute for a real name (like "X" in English) |
Dark Field Device | XY-400 Drop Fluorescence Device | character used in Taiwan as a substitute for a real name (like "X" in English) |
Dark Field Device | XY-LED falling fluorescence device | character used in Taiwan as a substitute for a real name (like "X" in English)
|
