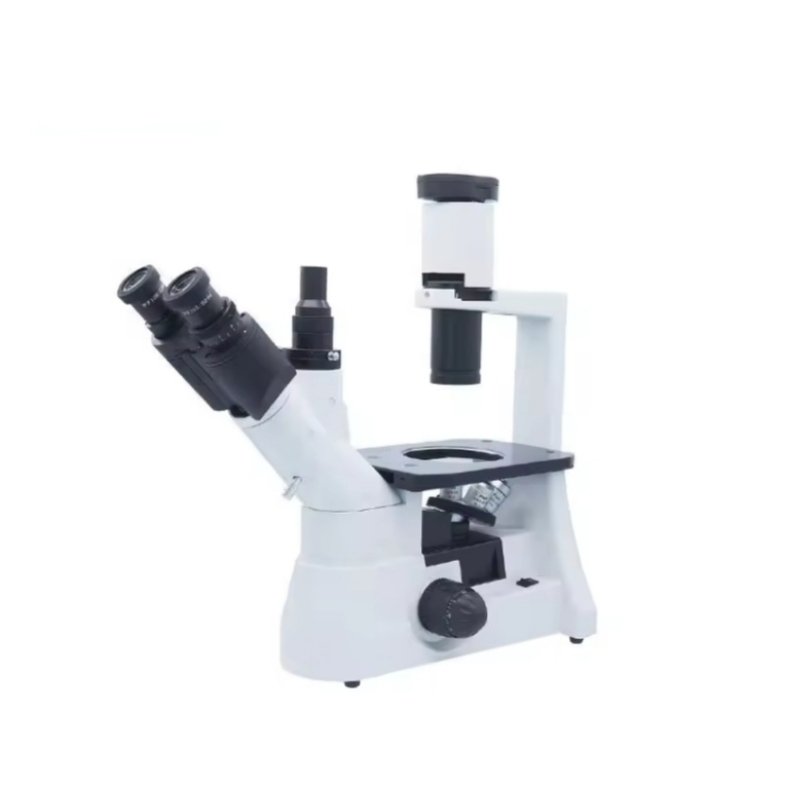

XD Inverted Biological Microscope QS
The XD-2H inverted biological microscope leverages an Infinity Optical System, paired with long working distance flat-field objectives (4× to 40×, NA 0.15–0.60)
Featuring a compact, high-rigidity main body with vibration resistance, the microscope includes a 45° hinged trinocular head (50–75mm pupil adjustment) for comfortable viewing and documentation.
Suitable for research institutes, universities, and healthcare settings, the XD-2H supports diverse workflows with optional accessories: 15×/20× eyepieces, extended working distance condensers
Technical Specifications
- Infinity optics for superior optical performance.
- The XD-2 series of inverted microscopes have emerged to meet the needs of the fields of biology, histology, microbiology, immunology, and medicinewith their excellent optical performance, wide range of applications, robust frame, and dexterous exterior design.
- The inverted microscope offers excellent features, high resolution and high contrast long working distance objective lens for high quality images, high liner phase contrast objective lens for clearer outline and structure of cells, and long working distance spotting lens to accommodate taller vessels or loaded samples.
- The stable and reliable T-base, streamlined design and easy-to-use operating system make your work easier and more enjoyable.
technical specification | XD-1 | XD-2 | XD-1A | |
|---|---|---|---|---|
viewing head | 45 degree hinged binocular head (50mm-75mm) | ● | ● | |
viewing head | 45 degree hinged trinocular head (50mm-75mm) | ● | ||
goggles | WF10X/ 20mm | ● | ● | |
goggles | WF10X/ 22mm | ● | ||
goggles | WF10X/18mm with 0.1mm Scale Cross Section Plate | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name |
objective (optics) | Long workingdistancelevel the field andeliminatechromaticaberration objective(physics) | LWPDL4X/0.1W.D .25mm | ● | ● |
objective (optics) | Long workingdistancelevel the field andeliminatechromaticaberration objective(physics) | lwdl10x/0.25 w.d .11mm | ● | ● |
objective (optics) | Long workingdistancelevel the field andeliminatechromaticaberration objective(physics) | lwdl10x/0.25 w.d .8mm | ● | ● |
objective (optics) | Long workingdistancelevel the field andeliminatechromaticaberration objective(physics) | lwdl10x/0.25 w.d .6mm | ● | ● |
resolver | Triple Nosepiece | ● | ● | ● |
resolver | Quadruple Nosepiece | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name |
litter-bearing platform | litter-bearing platform | Double layer movable platform:115x125mm Actualrange15*75 Double layer mechanicalstage,size:115x125mm | ● | |
litter-bearing platform | Plain Stage with paired clips | ● | ||
focusing mechanism | Coaxial Coarse And Fine Adjustment , Focusing Range 20mm | ● | 45 degree hinged binocular head (50mm-75mm)● | ● |
spotting scope | Spotting scope NA=1.25 with variable light bar N.A=1.25Abbe condenser &lris diaphragm | ● | ● | ● |
light source | Electric light source (LED or Halogen Lamp) | ● | ● | ● |
light source | Concave-plane reflector | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name |
light source | Power supply DC Power supply or Charging type | character used in Taiwanas a substitute for a real name | character used in Taiwanas a substitute for a real name | character used in Taiwanas a substitute for a real name |
imaging system | Optional 0.1Mega-14Mega pixels CCD camera or Electronic eyepiece | character used in Taiwanas a substitute for a real name | character used in Taiwanas a substitute for a real name | character used in Taiwanas a substitute for a real name |
