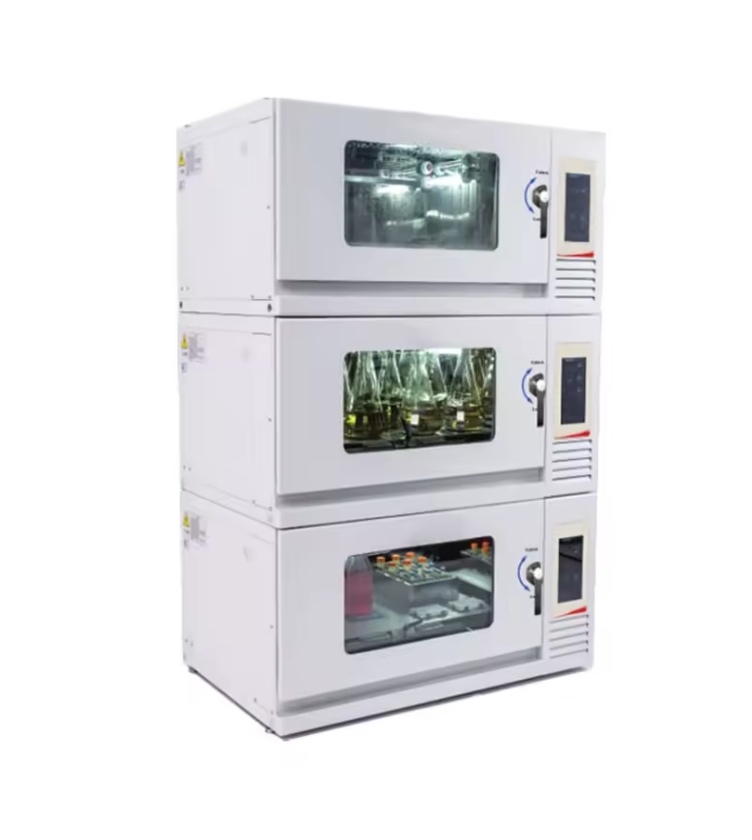

Magnetic Drive Stacked Lab Incubator Shaker LBA 190L

  • Magnetic drive incubator shaker with high-precision temperature and speed control, 12-segment programming, optional WiFi monitoring, UV sterilization. Multiple models for small to medium experiments.

  • Lab incubator shaker: magnetic drive, variable frequency cooling, 12-segment programming, long data storage, optional CO₂ control, low noise, easy to clean.

  • Incubator shaker: precise temperature (±0.1℃) and speed (±1rpm) control, 12-segment programming, UV sterilization, optional WiFi, fits various containers. Ideal for small to medium tests.

Description

Technical Specifications

OVERVIEW

This is a desktop shaker that can be used directly in the greenhouse or in the incubator. It is widely used in the fixation of various electrophoresis gels, the shaking and shaking during Coomassie blue staining and decolorization, and the fixation and staining of silver nitrate staining. After the development, fixation and electrophoresis transfer of the X-ray film in the autoradiography experiment, the cellulose membrane is further processed, such as molecular hybridization, antigen-antibody reaction and staining, and cell culture.

FEATURES

1. The domestic original single-axis drive mechanism, silent operation, durable.

2. The most advanced finishing technology in China ensures the stability and reliability of mechanical operation.

3. The key parts of the movement are made of expensive chromium alloy materials, high-quality cast iron, and original imported bearings.

4. Automatically memorize the last set speed, and slowly accelerate to the last running speed after starting up.

5.  The unique slow start circuit prevents sudden start and splashing, effectively ensuring the safety of reagents.

6.  Unique automatic power-off protection device for motor overheating and temperature out of control.

7.  Unique high-precision frequency control system, the frequency accuracy can reach ±1rpm.

8.  The most advanced high torque motor, maintenance-free, to ensure continuous work.

9.  The electrostatic color spray box is beautiful and rust-proof, and it has a very aesthetic design concept.

SPECIFICATIONS

ModelLIS-AMLIS-ACMLIS-A5CM
Feature190L, Touch   screen190L, Touch   screen, with CO2 function190L, Touch   Screen, with co2 function, Amplitude 50
Shaker size550*470mm
Number of   flask clamps / stickers

Flask clamp:

50ml*72/100ml*30/150ml*30/200ml*30/250ml*30/500ml*17/1000ml*12/2000ml*8/5000ml   (Thomson)*4

Adhesive   pad:

50ml*72/100ml*53/150ml*41/200ml*32/250ml*30/500ml*20/1000ml*12/2000ml*8/5000ml   (Thomson)*4

Capacity190L
Maximum load10kg
Temperature   control rangeBelow room   temperature 18 ℃ -60 ℃ (max. 4 ℃)
Temperature   control accuracy+/-0.1℃
Temperature uniformity+/-0.5 ℃(@37 ℃)
Rotation   speed0(stop),30-300rpm
Rotation   accuracy+/-1 rpm
Magnetic   driveYES
Amplitude26mm50mm
CO2 sensorIR   (infrared)
CO2   concentration control range0-20%
CO2   concentration control accuracy+/-0.1%
Temperature   recovery time after opening door after 30S restart≤6 min (@37 ℃)
CO2   concentration recovery time after 30S restart≤6 min (@5%)
Humidity   typeNatural   humidification
Humidity95%
Programmable   number of segments12 segments
IlluminationTwo-way   lighting
SterilizeUV   sterilization
Door opening   methodLeft open
Set   parameter protectionpassword   protection
Curve   display typeTemperature   curve, speed curve,Temperature   curve, speed curve, CO2 concentration curve, humidity curve
Display   methodCapacitive,   7-inch color touch screen
Timing range0-999 hours   and 59 minutes
USB flash   drive export dataYES
Days of   operation parameters can be checked on the screenWithin 7   days
Run data   storage cycleMore than   912 days
Operation   data storage interval1 minute
Data storage   contentRunning   time, temperature parameters, speed parameters, running statusRunning   time, temperature parameters, speed parameters, humidity parameters, running   status
Automatic defrostYES
Turn off   screen display automaticallyYES
Auto lock   screenYES
Third shake   plate height1315mm
Rocker with   trackYES
Noise level≤55Db (When   cooling)
WashableYES
DriveMagnetic   drive
Interface   languageEnglish
Automatic   call reply functionYES
Heating   power≤600W
Cooling   power70-180W
Power≤730W≤780W
Power supplyAC   220V+/-22V,50HZ/60HZ
Active   humidification (optional)10% -95%   above ambient humidity(optional )
WIFI mobile   monitoring (optional)Optional
Computer   monitoring (optional)Optional
Net weight170kg
Inner cavity   working height303mm
Dimensions970*780*(530+80   High feet) mm
