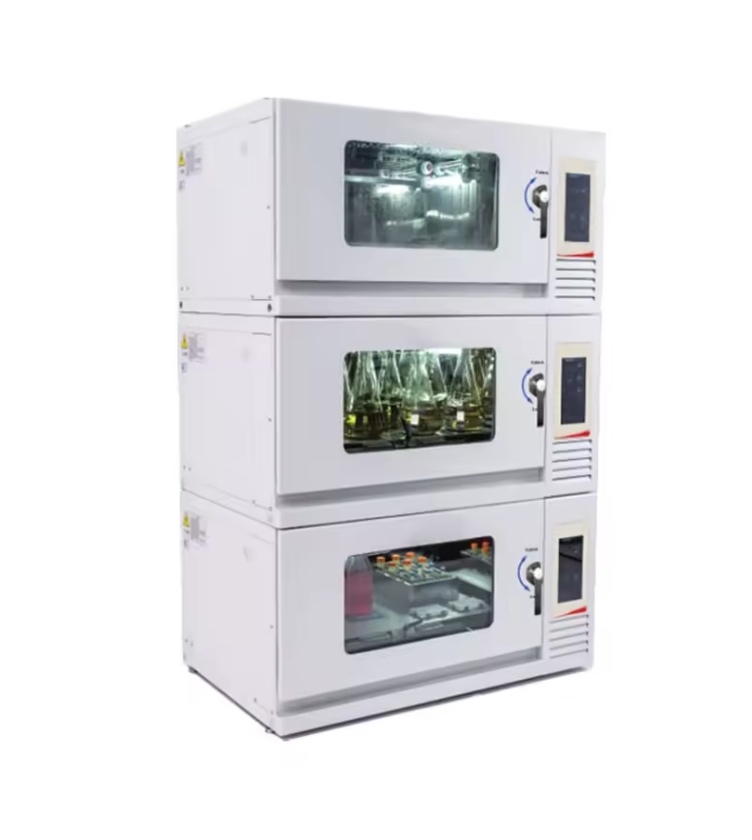

Magnetic Drive Stacked Lab Incubator Shaker LBA 190L
Description
FEATURES
1. Uses three-axis eccentric magnetic force to drive the movement, which is stable and reliable and has a long service life.
2. Rotational speed control system with speed terminal feedback system, the machine maintains high-precision oscillation
3. The combination and innovation of PID control technology and fuzzy control technology are used to achieve high-precision control in the temperature range.
4. Has a half product compressor for refrigeration, high efficiency, low energy consumption and more accurate refrigeration
5. With 12-segment programming operation, the same sample can automatically create the required environment under different environmental conditions and different running times.
6. Optional WIFI monitoring conditions can be used to remotely wirelessly control the same machine with multiple mobile phones at the same time, and obtain alarm information such as no air in time (optional)
SPECIFICATIONS
| Model | LIS-AM | LIS-ACM | LIS-A5CM |
| Feature | 190L, Touch screen | 190L, Touch screen, with CO2 function | 190L, Touch Screen, with co2 function, Amplitude 50 |
| Shaker size | 550*470mm | ||
| Number of flask clamps / stickers | Flask clamp: 50ml*72/100ml*30/150ml*30/200ml*30/250ml*30/500ml*17/1000ml*12/2000ml*8/5000ml (Thomson)*4 Adhesive pad: 50ml*72/100ml*53/150ml*41/200ml*32/250ml*30/500ml*20/1000ml*12/2000ml*8/5000ml (Thomson)*4 | ||
| Capacity | 190L | ||
| Maximum load | 10kg | ||
| Temperature control range | Below room temperature 18 ℃ -60 ℃ (max. 4 ℃) | ||
| Temperature control accuracy | +/-0.1℃ | ||
| Temperature uniformity | +/-0.5 ℃（@37 ℃） | ||
| Rotation speed | 0（stop），30-300rpm | ||
| Rotation accuracy | +/-1 rpm | ||
| Magnetic drive | YES | ||
| Amplitude | 26mm | 50mm | |
| CO2 sensor | – | IR (infrared) | |
| CO2 concentration control range | – | 0-20% | |
| CO2 concentration control accuracy | – | +/-0.1% | |
| Temperature recovery time after opening door after 30S restart | – | ≤6 min (@37 ℃) | |
| CO2 concentration recovery time after 30S restart | – | ≤6 min （@5%） | |
| Humidity type | – | Natural humidification | |
| Humidity | – | 95% | |
| Programmable number of segments | 12 segments | ||
| Illumination | Two-way lighting | ||
| Sterilize | UV sterilization | ||
| Door opening method | Left open | ||
| Set parameter protection | password protection | ||
| Curve display type | Temperature curve, speed curve, | Temperature curve, speed curve, CO2 concentration curve, humidity curve | |
| Display method | Capacitive, 7-inch color touch screen | ||
| Timing range | 0-999 hours and 59 minutes | ||
| USB flash drive export data | YES | ||
| Days of operation parameters can be checked on the screen | Within 7 days | ||
| Run data storage cycle | More than 912 days | ||
| Operation data storage interval | 1 minute | ||
| Data storage content | Running time, temperature parameters, speed parameters, running status | Running time, temperature parameters, speed parameters, humidity parameters, running status | |
| Automatic defrost | YES | ||
| Turn off screen display automatically | YES | ||
| Auto lock screen | YES | ||
| Third shake plate height | 1315mm | ||
| Rocker with track | YES | ||
| Noise level | ≤55Db (When cooling) | ||
| Washable | YES | ||
| Drive | Magnetic drive | ||
| Interface language | English | ||
| Automatic call reply function | YES | ||
| Heating power | ≤600W | ||
| Cooling power | 70-180W | ||
| Power | ≤730W | ≤780W | |
| Power supply | AC 220V+/-22V,50HZ/60HZ | ||
| Active humidification (optional) | – | 10% -95% above ambient humidity（optional ） | |
| WIFI mobile monitoring (optional) | Optional | ||
| Computer monitoring (optional) | Optional | ||
| Net weight | 170kg | ||
| Inner cavity working height | 303mm | ||
| Dimensions | 970*780*(530+80 High feet) mm | ||
