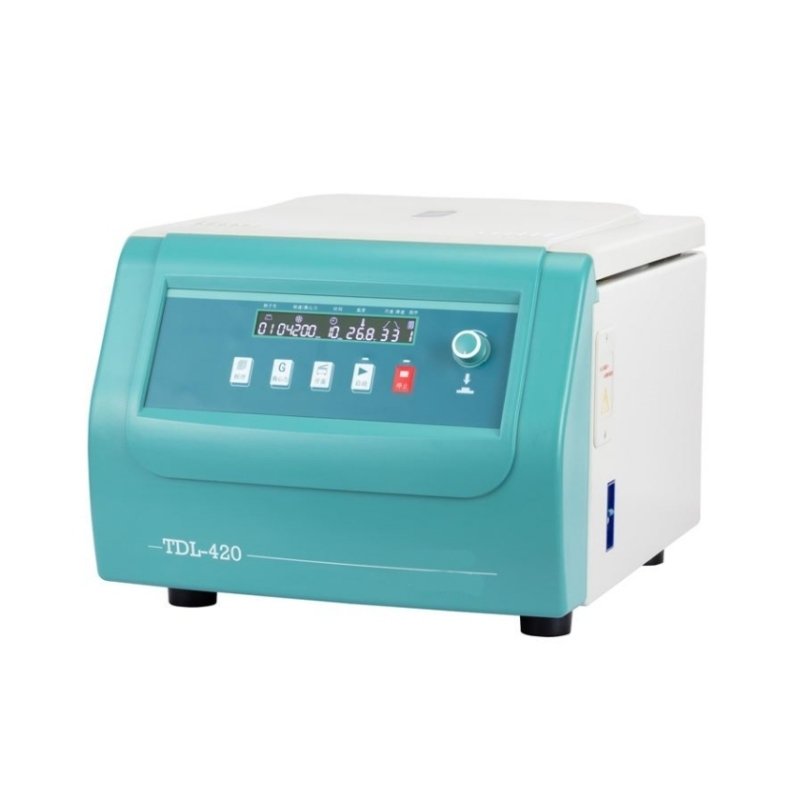

Low Speed Centrifuge BO TDL-420
This low – speed benchtop centrifuge (Model: TDL – 420) combines AC brushless motor technology with microcomputer control, offering 5000 rpm max speed and 4695×g RCF.
Its intuitive single – knob interface and 9 programmable cycles simplify operation, while real – time parameter adjustment (rpm/rcf) ensures flexibility. The soft – brake function and 9 – level acceleration/deceleration optimize sample integrity, making it ideal for medical and biological applications.
Featuring a spring – suspended balance system (20g unbalance tolerance) and dual – channel airflow cooling, this centrifuge maintains stable operation and sample safety.
Description
Technical Specifications
- Driven by an AC variable-frequency brushless motor, maintenance-free, equipped with a Hall speed measurement system.
- Microcomputer variable-frequency control technology, with liquid crystal display.
- Parameters (rpm/rcf) can be changed at any time during operation without stopping the machine.
- Programmable operation, 9 sets of program storage, 9 levels of acceleration and deceleration, and soft-brake function.
- Single-knob setting key for quick parameter setting.
- Adopt a spring-suspended balance system, with an unbalance capacity of up to 20 grams.
- Constant-speed timing function: the countdown starts only after reaching the set speed.
- With automatic rotor balance measurement function, it will automatically stop running when unbalance occurs.
- Dual-channel airflow heat dissipation technology, equipped with a temperature anomaly detector to protect sample safety.
- After centrifugation, the centrifuge cover opens automatically for easy sample loading and unloading.
- Micro-motor double-suction electronic door lock, press lightly to close the door cover quickly, safe and quiet.
- With an automatic fault diagnosis system, providing multiple protections for overspeed, over-temperature, unbalance, electronic door cover, etc., to ensure the safe operation of the instrument.
PARAMETER NAME | PARAMETER VALUE |
|---|---|
Typical Configuration | Horizontal Rotor Centrifuge |
Origin Category | Domestic |
Maximum Relative Centrifugal Force | 4695Xg |
Centrifugation Grade | Cell/Bacteria |
Maximum Speed | 6000rpm |
Price Range | To be negotiated |
Application Field | Medical and Sanitary, Comprehensive |
Size | 570×450×370mm |
Maximum Capacity | 250ml |
PARAMETER NAME | PARAMETER VALUE |
|---|---|
Maximum Speed | 5000R/MIN |
Maximum Capacity | 250ml×4 pieces |
Maximum Relative Centrifugal Force | 4695Xg |
Control System | Variable-frequency Processor |
Drive System | AC Variable-frequency Motor |
Power Supply | AC220V 50Hz |
Input Power | 500W |
Size | 570×450×370mm |
Net Weight | 40kg |
