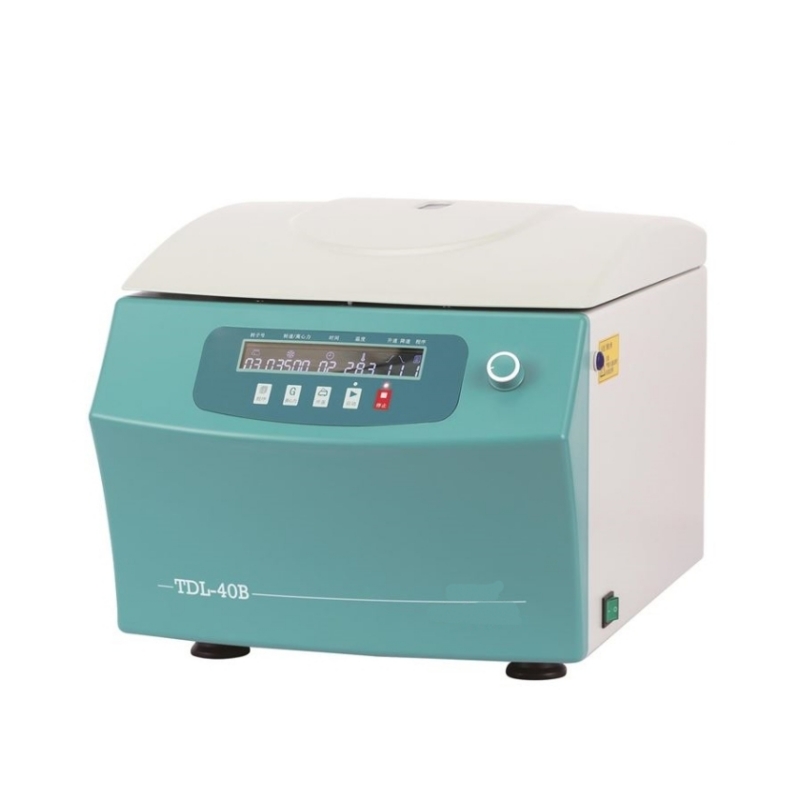

Low Speed Centrifuge BO TDL-40B

The TDL – 40B benchtop centrifuge, engineered for cell/bacteria separation, delivers 6000rpm max speed (5200×g RCF) and 100ml×4 capacity. Powered by a maintenance – free AC brushless motor with Hall speed sensing, it features microcomputer – controlled variable frequency tech and an LCD interface. Ideal for medical/biotech labs, it supports 9 programmable protocols, 9 – stage acceleration/deceleration, and includes a 20g unbalance – tolerant spring suspension system—ensuring stable, precise sample processing.
Designed for lab workflow optimization, the TDL – 40B offers real – time parameter adjustment (rpm/rcf) during operation, no need to stop. Its single – knob control simplifies quick setup, while constant – speed timing (countdown activates only at target speed) and soft – brake protect samples. Post – run, the lid auto/manual open option and dual – channel airflow cooling boost efficiency. The micro – motor electronic door lock ensures quiet, secure closure—balancing safety and convenience.

Driven by an AC variable-frequency brushless motor, maintenance-free, equipped with a Hall speed measurement system.
Microcomputer variable-frequency control technology, with liquid crystal display.
Parameters (rpm/rcf) can be changed at any time during operation without stopping the machine.
Programmable operation, 9 sets of program storage, 9 levels of acceleration and deceleration, and soft-brake function.
Single-knob setting key for convenient and quick parameter setting.
Adopt a spring-suspended balance system, with an unbalance capacity of up to 20 grams.
Constant-speed timing function: the countdown starts only after reaching the set speed.
With automatic rotor balance measurement function, it will automatically stop running when unbalance occurs.
Dual-channel airflow heat dissipation technology, equipped with a temperature anomaly detector to protect sample safety.
After centrifugation, the centrifuge cover can be opened automatically or manually for easy sample loading and unloading.
Micro-motor electronic door lock, press lightly to close the door cover quickly, safe and mute.
With an automatic fault diagnosis system, providing multiple protections for overspeed, over-temperature, unbalance, electronic door cover, etc., to ensure the safe operation of the instrument.

PARAMETER NAME	PARAMETER VALUE
Typical Configuration	Horizontal Rotor Centrifuge
Origin Category	Domestic
Instrument Function	Ordinary Centrifuge
Centrifugation Grade	Cell/Bacteria
Maximum Speed	6000rpm
Price Range	To be negotiated
Application Field	Medical and Sanitary, Biological industry, Comprehensive
Size	520×400×360mm

PARAMETER NAME	PARAMETER VALUE
Maximum Speed	6000R/min
Control System	Variable-frequency Processor
Maximum Capacity	100ml×4 pieces
Drive System	AC Variable-frequency Motor
Maximum Relative Centrifugal Force	5200Xg
Power Supply	AC220V 50Hz
Timing Range	1s – 99min59s
Noise	≤ 65dB (A)
Size (Length * Width * Height)	52×40×36cm
Net Weight	30kg
