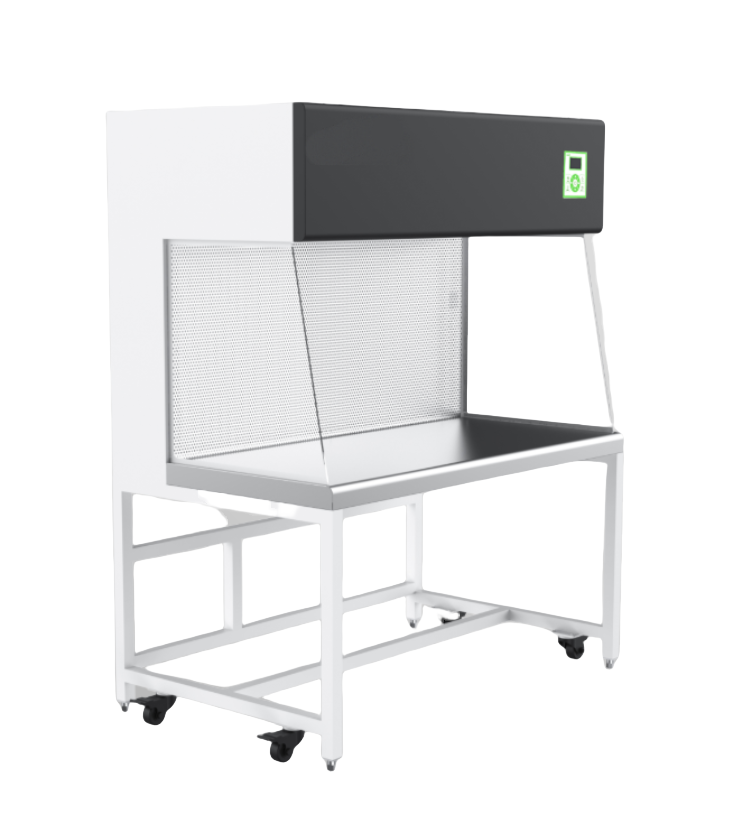

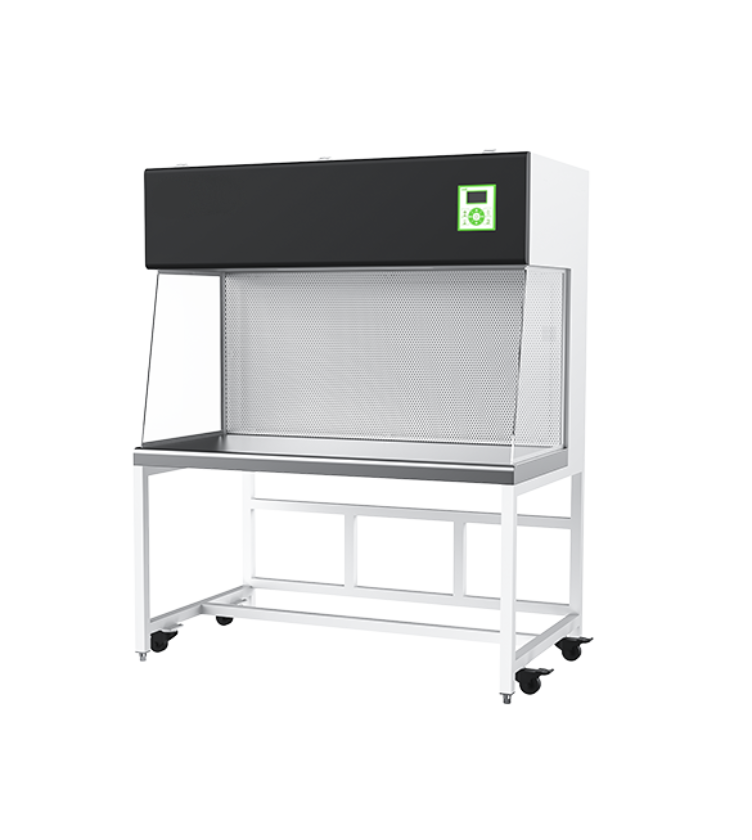

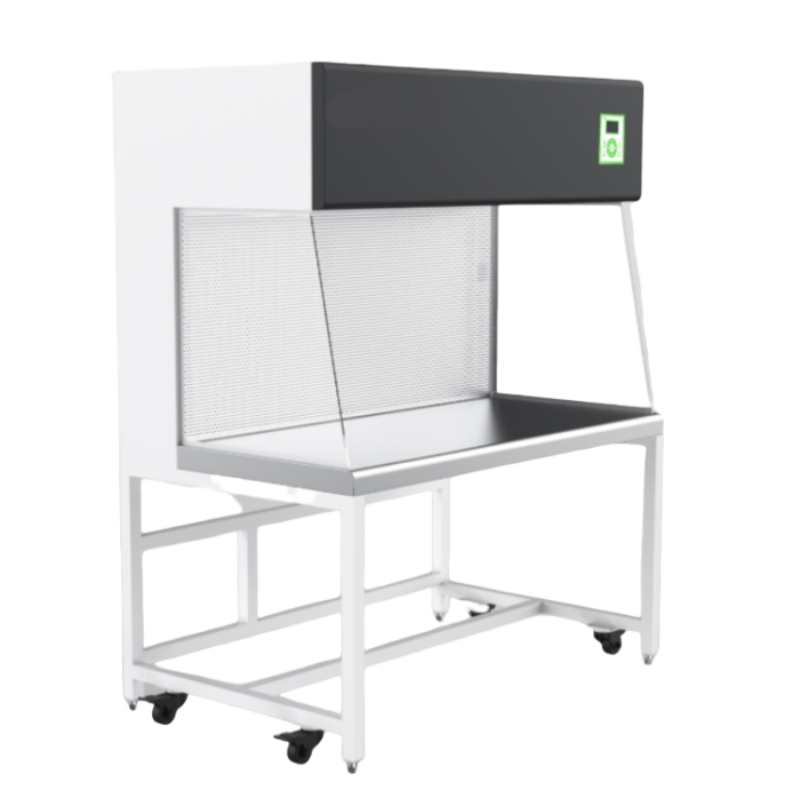

Horizontal Flow Clean Bench DE

Product Introduction

A clean bench is an enclosure-type air purification device that provides a local Class 100 (ISO Class 5) dust-free and sterile working environment. During operation, it maintains performance parameters (airflow velocity, cleanliness, noise, vibration, illumination) to meet laboratory requirements. Common types include horizontal flow clean benches and vertical flow clean benches.

Structural & Performance Features

• Full-steel structure with fingerprint-resistant 304 stainless steel worktop

• UV-resistant tempered glass side windows (clear view, easy observation)

• Ergonomic tilted cabinet design (comfortable operation)

• Full clean airflow coverage in work area (achieves ISO Class 5 / Class 100 cleanliness)

• Physical button control panel + LCD real-time digital display

• HEPA high-efficiency filtration (99.995% efficiency @0.3μm)

• Imported high-airflow fan (low energy consumption, low noise)

• Form caster base + built-in threaded leveling feet (adjustable worktop level)

  Model	CB-940AHF-H	CB-1270AVM-H
  Airflow Mode	Horizontal Flow	Horizontal Flow
  Work Mode	Single-person	Double-person
  Overall Size (mm)	1010×765×1830	1340×830×1680
  Work Area (mm)	940×610×550	1300×600×600
  Worktop Height (to Ground)	≥750mm	≥750mm
  Rated Power	250W	250W
  Front Window Safe Height	/	/
  Nominal Airflow Velocity	0.22~0.32m/s	0.22~0.32m/s
  Noise	≤62dB(A)	≤62dB(A)
