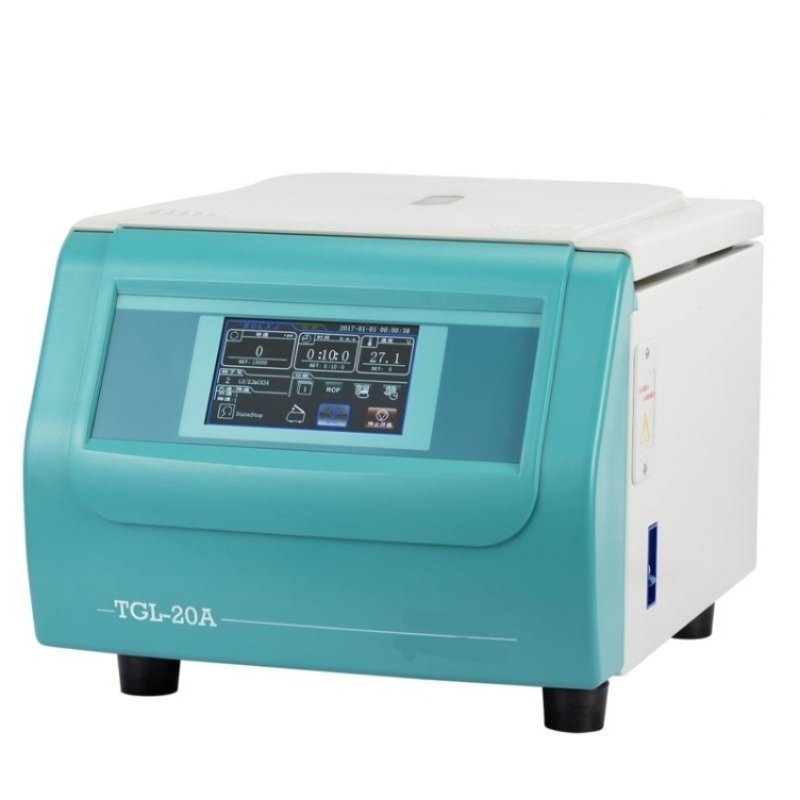

High Speed Centrifuge BO TGL-20A
The TGL-20A benchtop high-speed centrifuge, engineered for biomacromolecule separation, hits 21,000rpm (30,840×g RCF) with 250ml×4 capacity. Powered by a maintenance-free AC brushless motor (Hall speed sensing) and a 7-inch IPS touchscreen, it stores 99 programs with 15-stage acceleration/deceleration.
Ideal for medical/biotech labs, it auto-balances rotors, adjusts parameters mid-run, and ensures corrosion-free sample processing (stainless steel 316 chamber)—delivering precision for high-speed workflows.
Safety-centered, the TGL-20A includes auto rotor balance detection, imbalance-triggered shutdown, and multi-protection (overspeed/overtemp). Operating at ≤60dB (58×45×37cm, 64kg), it fits lab spaces quietly.
Designed for lab efficiency, the TGL-20A features a gloves-friendly 7-inch IPS touchscreen (Chinese/English), 99 customizable programs, and Short Spin-like real-time adjustments. Its expansion-type rotor mount simplifies swaps, while dual-suction door lock enables silent closure.
Technical Specifications
Driven by an AC variable-frequency brushless motor with maintenance-free operation and Hall speed measurement system.
Microcomputer-controlled variable-frequency system with a 7-inch high-definition IPS capacitive touchscreen and LCD display.
Programmable with 99 program storage slots, 15 acceleration/deceleration levels, and soft-brake function.
Bilingual (Chinese/English) interface displaying real-time centrifugation status.
Automatic rotor balance detection with auto-shutdown in case of imbalance.
Real-time parameter adjustment (rpm/rcf) during operation without .
Stainless steel 316 inner chamber for corrosion resistance and durability.
Automatic rotor recognition and imbalance detection for enhanced safety.
Expansion-type rotor mounting system for quick and easy rotor changes.
Constant-speed timing: countdown starts only after reaching the set speed.
Gloves-friendly control panel cleanable with detergents.
Micro-motor dual-suction electronic door lock for silent, secure closure.
Parameter | Specification | Parameter | Specification |
|---|---|---|---|
Maximum Centrifugal Force | 30,840xg | Instrument Function | Ordinary Centrifuge |
Instrument Type | Benchtop Centrifuge | Maximum Capacity | 250ml |
Dimensions | 580×450×370mm | Maximum Capacity | 250ml |
Feature Parameter | High–Speed | Maximum Speed | 21,000rpm |
Typical Configuration | Angle Rotor Centrifuge | Price Range | Negotiable |
Origin Category | Domestic | Application Fields | Medical & Healthcare, Biotechnology Industry, Comprehensive |
Parameter | Specification | Parameter | Specification |
|---|---|---|---|
Maximum Speed | 21,000r/min | Speed Accuracy | ±10rpm |
Maximum Capacity | 250ml×4 tubes | Power Supply | AC220V 50Hz |
Maximum RCF | 30,840×g | Input Power | 1.0kW |
Timer Range | 1s-99h/59min59s | Drive System | AC Variable-Frequency Motor |
Noise Level | ≤60dB (A) | Dimensions (L×W×H) | 58×45×37cm |
Control System | Variable-Frequency Processor | Net Weight | 64KG |
