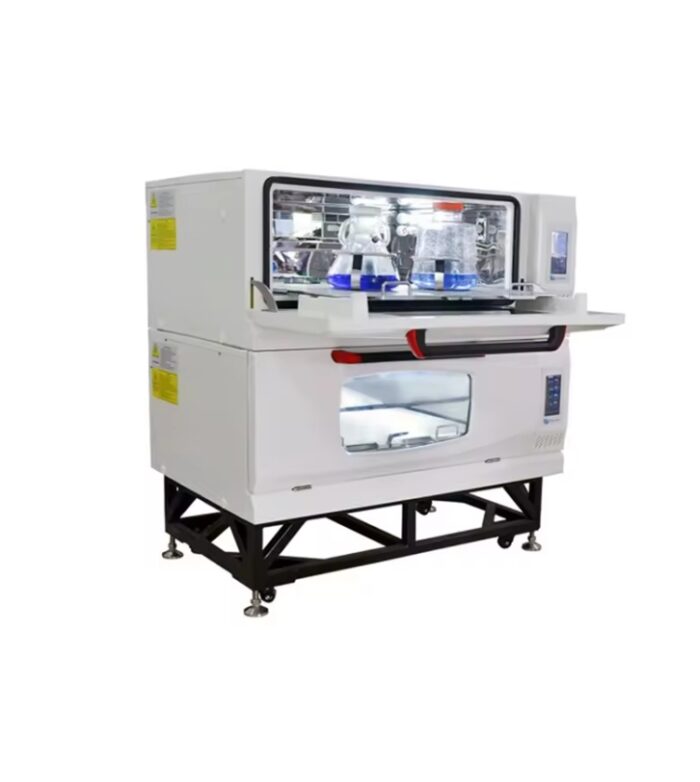

High Precision Stackable CO2 Incubator Shaker LBA LIS-18
Description
FEATURES
1. 7″ High-Res Color Touch Screen with intuitive graphic interface
2. Chamber design features smooth rounded internal corners for easy cleaning
3. Capacity is 6 x 5L Erlenmeyer shaker flasks
4. Infra-Red(IR) CO2 sensor for precise arid reliable CO2 detection
5. Optional WiFi and RDS485 monitorin and control
6. Set of UV f fights for easy sterilization
7. Audible and visual alarms
8. Mirror finish, pharmaceutical grade stainless steel chamber
9. Stackable design up to 3 units.
10. 25mm and 50mm orbit models available
SPECIFICATIONS
| Model | LIS-18 | LIS-18C | LIS-18C5 |
| Temp. Range | Room Temp. Minus 20℃~60℃ (Lowest Temp. is 4℃) | ||
| Power | ≤1000W | ||
| Speed | 0 (Stop)，30~300rpm | ||
| Speed Accuracy | ±1rpm | ||
| Orbit Diameter | φ26mm | φ50mm | |
| CO2 Sensor | NA | IR | |
| CO2 Control Range | NA | 0~20% | |
| CO2 Display Accuracy | NA | 0.1 | |
| CO2 Control Accuracy | NA | ±0.2%(@ 5%) | |
| Recover Time on the Temp. Close Door | ≤6min（@ 37℃） | ||
| Recover Time on the CO2 Close Door | NA | ≤6min（@ 5%） | |
| Application range of CO2 temperature | NA | 5~60℃ | |
| RH Type | Active Humidification | ||
| Max. Humidity | Ambient Rh~95% | ||
| Programing Numbers | 12 Sections | ||
| Disinfection | UV | ||
| Door Open Direction | Downward | ||
| Display | 7” Color Capacitance Touch Screen | ||
| Touch Screen Type | Capacitance Type | ||
| Auto-lock | Yes | ||
| Auto-close Screen | Yes | ||
| Protect Set Parameters | Passwords Protect | ||
| Display the Date | In a week | ||
| Date Curve Display | Temp. Curve, Speed Curve, |
Temp. Curve, Speed Curve, CO2 Curve, RH Curve |
|
| Max. Capacity | Clamp Capacity: 25mlx134/ 50ml×134/ 100ml×60/ 150ml×60/ 200ml×60/ 250ml×60/ 500ml×32/ 1000ml×22/ 2000ml×15/5000ml(Thomson)×6 Sticky Mat: 25mlx134/ 50ml×187/ 100ml×112/ 150ml×104/ 200ml×84/ 250ml×76/ 500ml×40/ 1000ml×28/ 2000ml×15/5000ml(Thomson)×8 | ||
| Max. Load | 20Kg | ||
| Platform Dimensions | 900×560mm | ||
| Temp. Uniformity | ≤±0.15℃（@ 37℃） | ||
| Temp. Volatility | ≤±0.12℃（@37℃） | ||
| Temp. Display Accuracy | 0.1℃ | ||
| Heat Power | ≤800W | ||
| Cool Power | ≤300W | ||
| Automatical Defrost | Yes | ||
| Timer | 0-999Hours59min. | ||
| U Disk Download Date | Yes | ||
| Date Store Years | ＞912 days | ||
| Date Store Time | 1 min. | ||
| Date Store Types | Time, Temp, Speed, Machine Status | Time, Temp, CO2%, Speed, RH, Machine Status | |
| Noise Level | ≤55dB | ||
| Water Sparge Resistant | Yes | ||
| Interface Languages | Chinese or English | ||
| Auto-run after Power Recovery | Yes | ||
| RH Control | Option | ||
| Passive Humidifier AutomaticWater | Option | ||
| Mobile Monitor and Control by WiF | Option | ||
| PC Monitor and Control by RS485 (Option) | Option | ||
| Net Weight | 200Kg | ||
| Internal Dimensions | 985×775×444mm | ||
| Outside Dimensions | 1355×875×535mm | ||
