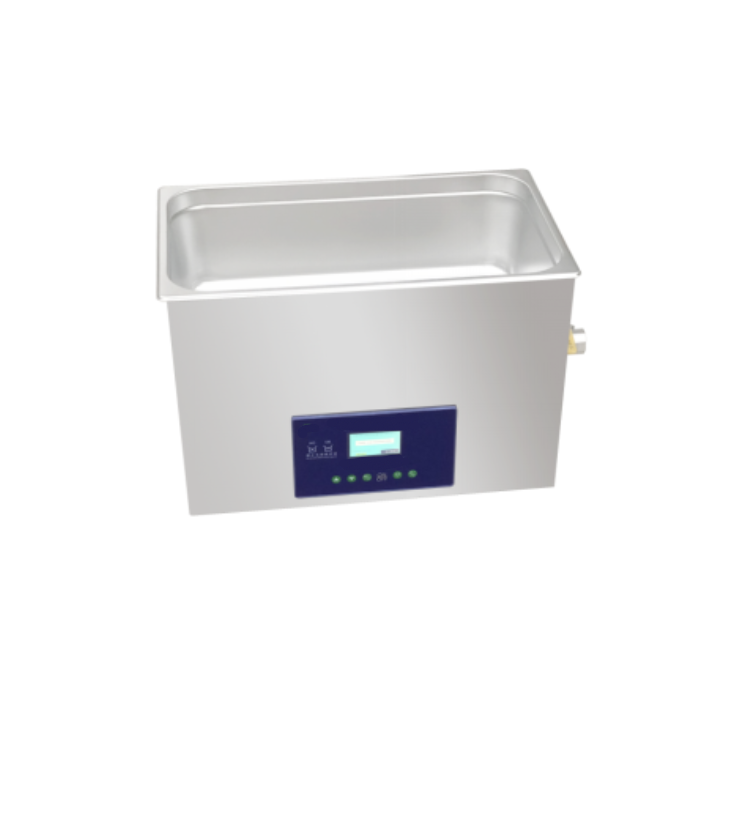

Dual Frequency Ultrasound Cleaner JNK
-
MCU/PLC control with 6 dual-frequency options, auto-switching, parameter memory, imported transducers.
-
Multi-protection systems, no-solution power-off, stainless steel body and grid, corrosion-resistant.
-
3-80L capacities, 0-80°C temperature range, suitable for variousapplications.
Description
Main properties and characteristics:
The instrument operation program is controlled by single chip computer software or LCD touch screen PLC program.
Fully Automatic Conversion of Dual-Frequency Ultrasound Operating Frequency
Display Memory and Set Ultrasound Frequency Automatic Conversion Time
Display the product’s date of departure
Display memory and set working time of ultrasound
Display memory and set temperature and actual temperature
Display no solution protection indication
All Imported Products of Dual-Frequency Ultrasound Transducer for Cleaner
Ultrasound frequencies of 20/40 Khz, 28/45 Khz, 45/60 Khz, 45/100 Khz, 40/100 Khz and 80/100 Khz are optional.
Display cumulative working hours
Indicators for Overtemperature, Overvoltage and Overcurrent Protection
High quality stainless steel deep drawing for inner groove of cleaner
The shell of the cleaner is made of high quality stainless steel.
Argon welding forming of stainless steel mesh sieve for cleaner grids
| Model | capacity
L |
Frequency conversion time adjustable
S |
temperature
Range ℃ |
time
Range min |
| JK-2200DVE | 3 | 1-999 | 0—80 | 1—480 |
| JK-100DVE | 4 | 1-999 | 0—80 | 1—480 |
| JK-3200DVE | 6 | 1-999 | 0—80 | 1—480 |
| JK-300DVE | 10 | 1-999 | 0—80 | 1—480 |
| JK-500DVE | 22.5 | 1-999 | 0—80 | 1—480 |
| JK-600DVE | 22.5 | 1-999 | 0—80 | 1—480 |
| JK-700DVE | 22.5 | 1-999 | 0—80 | 1—480 |
| JK-1000DVE | 52 | 1-999 | 0—80 | 1—480 |
| JK-1500DVE | 80 | 1-999 | 0—80 | 1—480 |
