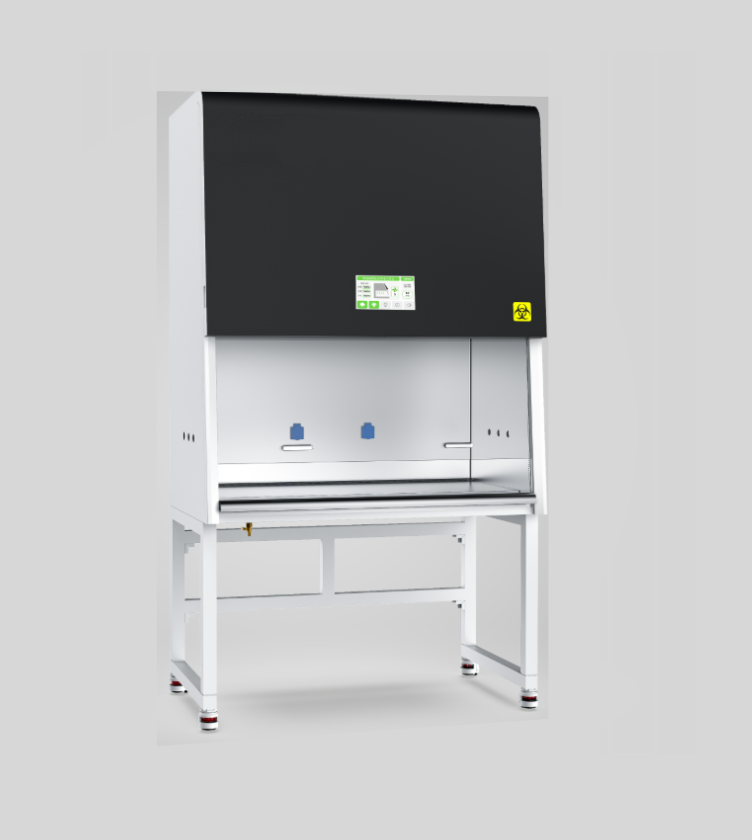

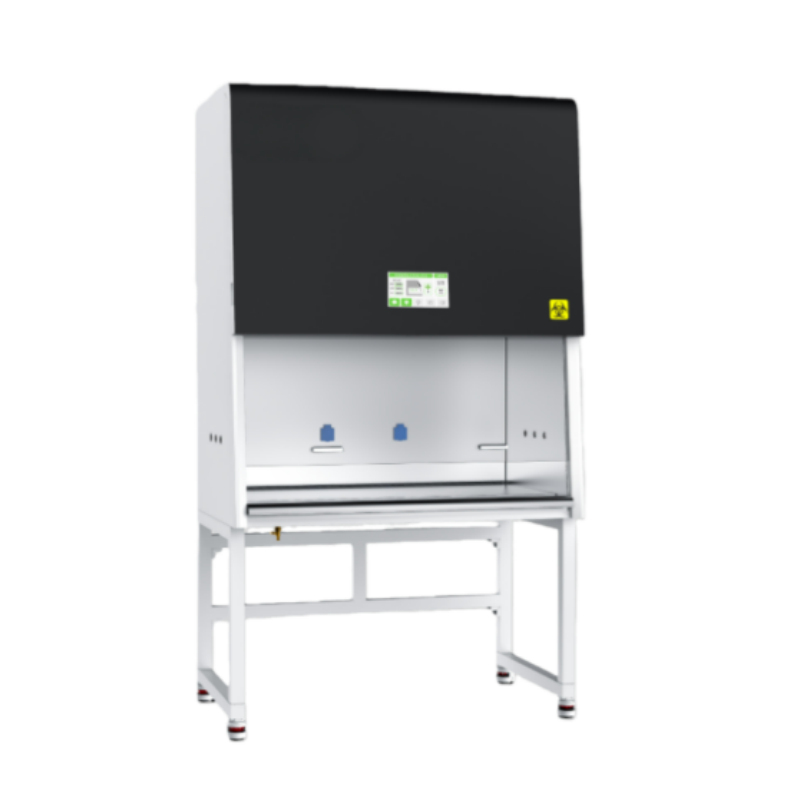

Biological Safety Cabinet DE Export Grade A2
Description
Technical Specifications
- Equipped with a reliable electrical system, compatible with 110V-240V voltage requirements.
- Imported brand fan with low failure rate, featuring excellent durability and reliability for long-term stable operation.
- Both supply & exhaust air filters use HEPA filters (99.995% efficiency @0.3μm; ULPA filters optional, 99.9995% efficiency @0.12μm).
- High-definition 7-inch LCD touchscreen, full digital control, multi-language interface.
- Real-time monitoring of inflow & downflow air velocities.
- Filter/UV lamp lifespan display + alarm (auto-reminder when lifespan <10%).
- UV lamp & fan scheduled timing (freely set auto on/off from 0min to 24h).
- Ergonomic 5° tilt for front operation surface (human engineering design).
- Full-steel construction with silver ion antibacterial coating (99.99% antibacterial rate).
- SUS 304 stainless steel worktop.
- Integrated SUS 304 stainless steel inner liner (weld-free, large arc design, no cleaning dead corners).
- Front window: 6mm safety tempered glass (explosion-proof, shatter-proof, UV-resistant).
- Two waterproof sockets in work area (flexible operation).
- Customizable to meet diverse customer needs.
MODEL | BSC-1000ⅡA2-E | BSC-1200ⅡA2-E | BSC-1500ⅡA2-E | BSC-1800ⅡA2 |
|---|---|---|---|---|
Overall Size (mm) | 1100×800×2140
| 1300×800×2140 | 1600×800×2140 | 2000×800×2140 |
Work Area Dimensions (mm) | 1000×650×640 | 1200×650×640 | 1500×650×640 | 1850×650×640 |
Exhaust Air Volume | 381m³/h | 457m³/h | 572m³/h | 705m³/h |
Downflow Air Volume | 748m³/h | 899m³/h | 1122m³/h | 1384m³/h |
Total Air Volume | 1130m³/h | 1358m³/h | 1695m³/h | 2090m³/h |
Noise | ≤63dB(A) | ≤63dB(A) | ≤67dB(A) | ≤67dB(A) |
Downflow Air Velocity | 0.33m/s | 0.33m/s | 0.33m/s | 0.33m/s |
Inflow Air Velocity | 0.53m/s | 0.53m/s | 0.53m/s | 0.53m/s |
Front Window Safe Height | 200mm | 200mm | 200mm | 200mm |
Weight | 200-250kg | 200-250kg | 200-250kg | 200-250kg |
