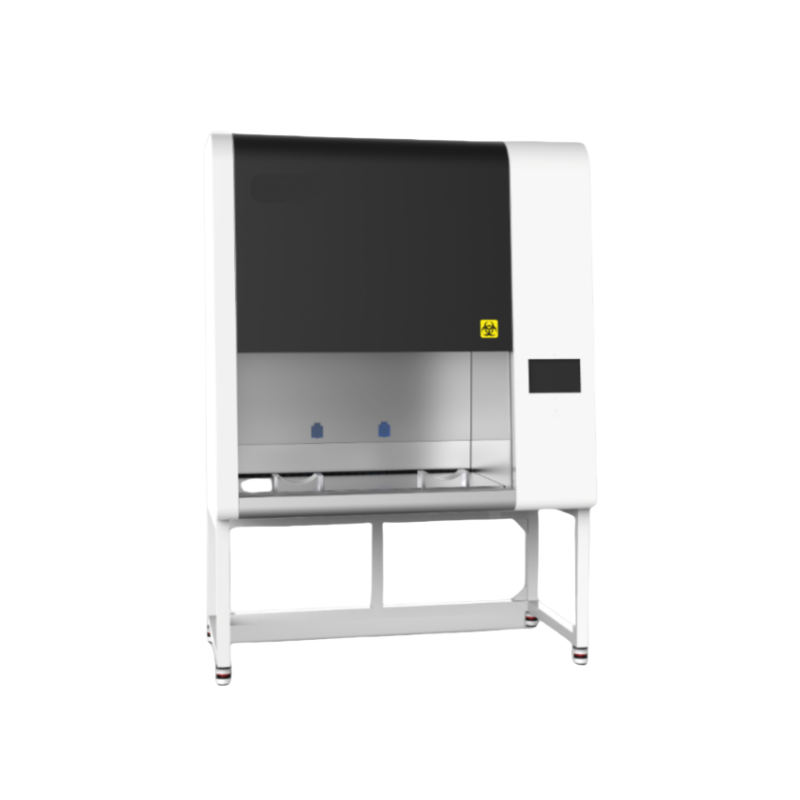

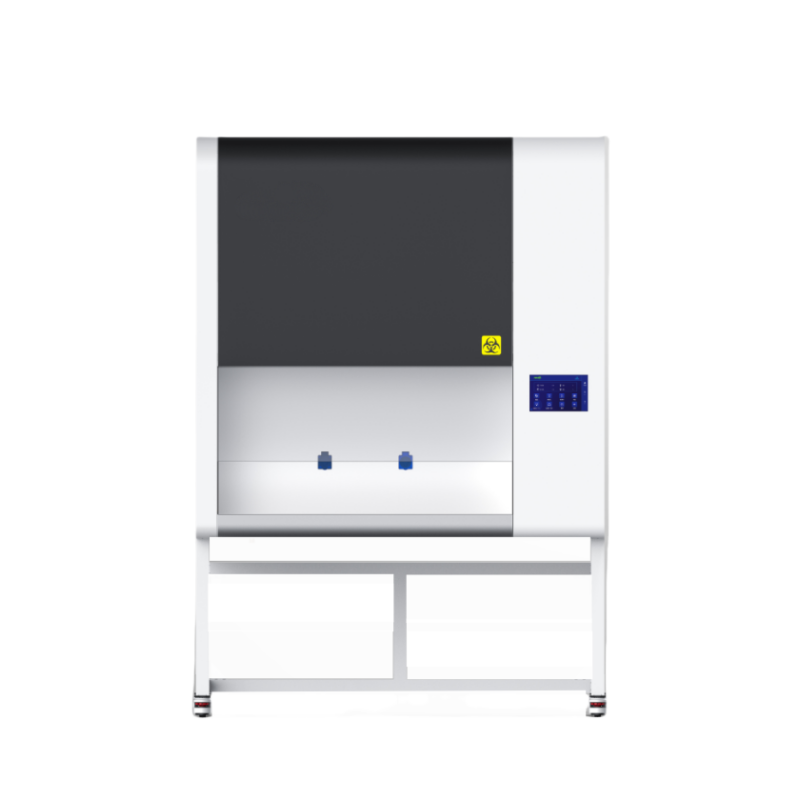

Biological Safety Cabinet DE Medical Grade A2
Description
Technical Specifications
- Equipped with imported brand fans to achieve low noise and high reliability.
- Both supply and exhaust air filters use ULPA filters, with a filtration efficiency of 99.9995% @ 0.12μm.
- Display: 10-inch intelligent color large screen with multi-interface display for convenient multi-level management.
- Control method: Touch screen operation + remote control.
- Usage time and lifespan monitoring for filters/UV lamps; automatic reminder when lifespan drops below 10%.
- Equipped with a high-sensitivity wind speed sensor with speed compensation function.
- Airflow fluctuation alarm function with audible & visual alerts.
- Scheduled on-off for UV lamps and fans (supports 6 preset time groups).
- Interlock function for UV lamps, fans, and front window glass.
- Patent technology for high uniformity airflow—full coverage in the work area, no dead corners.
- Electric lifting front window (anti-pinch patent); controllable via foot pedal or manual switch.
- Front window: 6mm safety tempered glass (explosion-proof, shatter-proof, UV-resistant).
- Humanized 5° tilt design for the front window (ergonomic).
- 14. All-steel structure; cabinet coated with antibacterial silver ion layer (99.99% antibacterial rate).
- Fingerprint-resistant 304 stainless steel one-piece inner liner (weld-free, large arc design—no cleaning dead corners).
- Fingerprint-resistant 304 stainless steel worktop (integrated spill-proof design).
- Double-layer structure at the bottom of the work area + 304 stainless steel liquid collection tank.
- High-strength base with Form casters + built-in threaded support feet (adjustable for worktop leveling).
MODEL | BSC-940ⅡB2 | BSC-1100ⅡB2 | BSC-1300ⅡA2 | BSC-1600ⅡB2 |
|---|---|---|---|---|
Overall Size (mm) | 1360×790×2150 | 1520×790×2150 | 1720×790×2150 | 2020×790×2150 |
Work Area Dimensions (mm) | 940×625×625 | 1100×625×625 | 1300×625×625 | 1600×625×625 |
Exhaust Air Volume | 359m³/h | 420m³/h | 515m³/h | 611m³/h |
Downflow Air Volume | 678m³/h | 793m³/h | 974m³/h | 1154m³/h |
Total Air Volume | 1037m³/h | 1213m³/h | 1489m³/h | 1765m³/h |
Noise | ≤60dB(A) | ≤60dB(A) | ≤65dB(A) | ≤65dB(A) |
Downflow Air Velocity | 0.33m/s | 0.33m/s | 0.33m/s | 0.33m/s |
Inflow Air Velocity | 0.53m/s | 0.53m/s | 0.53m/s | 0.53m/s |
Front Window Safe Height | 200mm | 200mm | 200mm | 200mm |
Weight | 210-300kg | 210-300kg | 210-300kg | 210-300kg |
