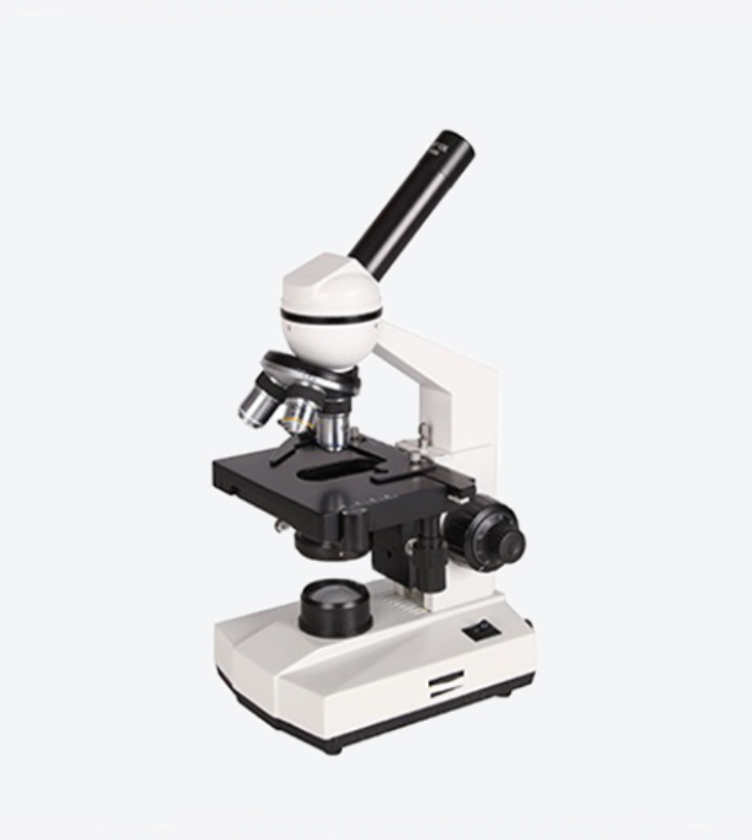

Biological Microscope QS XSP-06
The XSP-06 features a 45° tilted, 360° swiveling monocular head, paired with a 10× (16mm field) eyepiece and achromatic objectives (10×, 40×s, 100×s oil).
Its 3-hole converter, Abbey condenser (NA1.25), and LED lighting ensure clear imaging, while a 115×125mm single-level platform (with mobile feet) and coaxial focusing (20mm range) simplify operation. Compact at 18.5×17×35cm, it’s ideal for basic labs or educational settings requiring straightforward microscopy.
Building on the XSP-06’s design, the XSP-08 upgrades to a 4-hole converter and adds a 4× achromatic objective (complementing 10×, 40×s, 100×s oil), expanding magnification range.
Description
Configuration | XSP-06 | XSP-08 | |
|---|---|---|---|
viewing head | Monocular head, 45 degree tilt, 360 degree swivel | ● | ● |
goggles | Large Field Eyepiece WF10X/16mm | ● | ● |
objective (optics) | Achromatic Objective Lens 10X 40Xs 100Xs(oil) | ● | |
objective (optics) | Achromatic Objective Lens 10X 40Xs 100Xs(oil) | ● | |
resolver | Four-hole converter | ● | |
spotting scope | Abbey Spotting Scope NA1.25 with variable light bar, colour filter | ● | ● |
focusing system | Coaxial coarse and fine focusing mechanism, focusing range 20mm | ● | ● |
litter-bearing platform | Single-level movable platform Dimensions 115x125mm; mobile feet | ● | ● |
illumination | 6V/20W Halogen Lamp | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name |
illumination | LED lighting | ● | ● |
Product unit size | 18.5x17x35cm | ● | ● |
