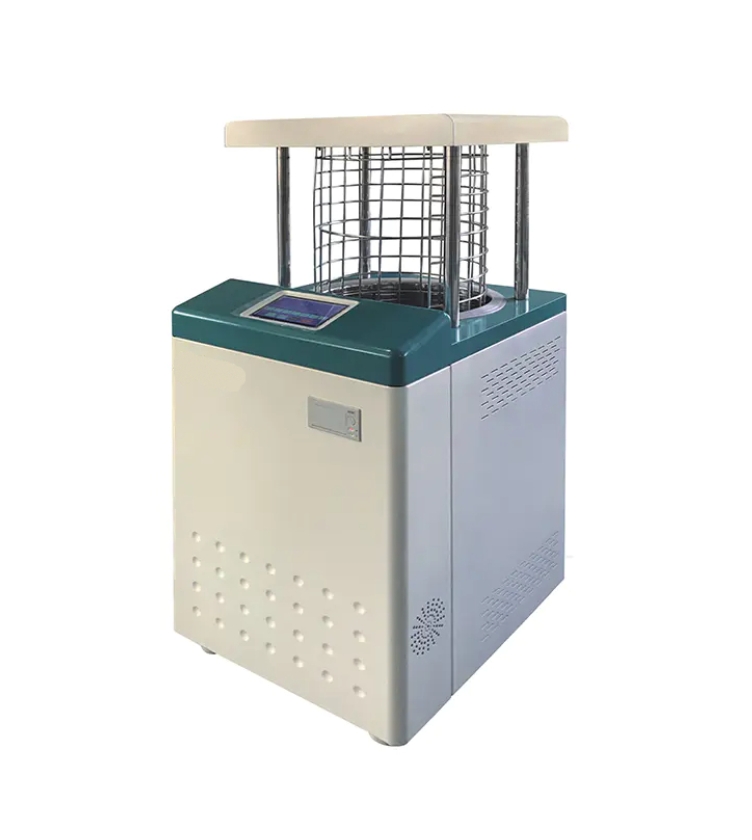

Vertical Pulse Vacuum Steam Sterilizer BJ LS Series

Performance & Safety: Built-in multiple programs for diverse sterilization needs, with a 0.20μm SARTORIUS sterile filter ensuring air purity. Steam-water inner circulation keeps the environment clean (no steam discharge). PT-TT testing port facilitates verification. Works at 134℃/0.22MPa with temperature uniformity ≤±1℃, temperature adjustable 105~134℃, timer 0~99min.
Models & Specs: Available in 60L (LS-60SV) to 120L (LS-120SV) capacities. Power: 3~3.6KW (steam generator) + 2.4KW (dry blanket), 220V 50Hz. Overall dimensions 686×556×913mm to 840×600×1060mm, net weight 180~295kg, suitable for small to medium-sized sterilization tasks.

7" capacitive touch screen, fully automatically controlled
Elevating type door, which is more convenient to place and fetch the articles from the autoclave.
The whole procedure from the water inlet, pulse vacuum, heat, sterilizing, drainage, exhausting to vacuum drying, which is all automatically by one-key operation.
Pulse vacuum, the limit is -0.080MPa, which ensure the sterilizing more completely.
Separated steam generator, which is more energy-saving compared to normal heating and prevents the sterilizing articles from being oxidized.
There are several programs loaded in the autoclaves for different requirements of different articles.
With the PT-TT testing port, easy to run the testing.
Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART 2000 0.20 μm, which ensures the air is sterile and prevents contamination.
Steam-water inner circulation system: no steam discharge and the environment for sterilizing will be clean and dry.

MODEL/Technical Data	LS-60SV	LS-80SV	LS-100SV	LS-120SV
Chamber volume	60L/Φ396×490mm	80L/Φ396×650mm	100L/Φ480×560mm	120L/Φ480×660mm
The height after rising(mm)	1310	1590	1475	1565
Overall dimension(mm)	686×556×913	686×556×1035	840×600×970	840×600×1060
Transport dimensio(mm)	786×656×1013	786×656×1135	940×610×1000	940×610×1075
Single gross weight	73Kg/56Kg	95kg/73Kg	116Kg/100Kg	130Kg/111Kg

Description

MODEL/Technical Data	LS-60SV	LS-80SV	LS-100SV	LS-120SV
Chamber volume	60L/Φ396×490mm	80L/Φ396×650mm	100L/Φ480×560mm	120L/Φ480×660mm
The height after rising(mm)	1310	1590	1475	1565
Overall dimension(mm)	686×556×913	686×556×1035	840×600×970	840×600×1060
Transport dimensio(mm)	786×656×1013	786×656×1135	940×610×1000	940×610×1075
Single gross weight	73Kg/56Kg	95kg/73Kg	116Kg/100Kg	130Kg/111Kg
