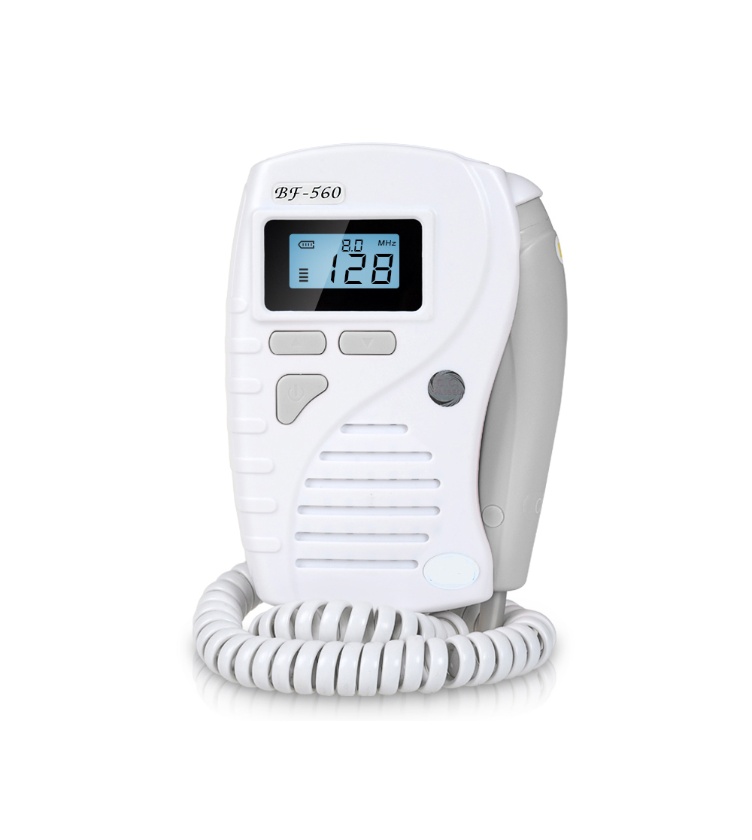

Ultrasonic Fetal Doppler BSM BF-560B

Product attributes:

Feature:

White backlight LCD can display FHR for darkness use: show the probe working frequency, battery capacity, Doppler signal and alarm indicator; user friendly interface makes easy operation;

Output jack can be connected to instruments. ( headset )

Sound amplified and recorded function;

Clear sound with a high quality loudspeaker;

2.0MHz probe is standard probe for fetal doppler

Option: 3.0MHz, 5.0MHz, 8.0MHz for fetal, umbilical blood flow and vascular doppler.

1.5V batteries be chosen by alkaline battery

Detailed attribute table

Specification:

Executive Standard:EN61266:1995

Ultrasonic frequency:2.0 MHz(Standard) 3.0MHz/5.0MHz/8.0MHz(Optional),error: ± 10%

Ultrasonic power intensity:≤10mW/cm2

Comprehensive Sensitivity: ≥90dB

Measurement range: 50bpm–210 bpm Error: ±2bpm

Isptp:≤0.1Mpa

Doppler Frequency: 0-3KHz

Power Consumption:≤1.5W

Power off automatically: after 3 minutes

Working Mode: Continuous ultrasound Doppler

Working temperature: 5-40℃

Humidity:< 80％

Atmospheric pressure:86-106kPa

Power Supply: Size 5 alkalescency battery(1.5V x3) (alkalescency battery isn’t rechargeable)
