Technical Specifications

Specializes in endoscopic imaging systems. Endoscopes have innovated from SD to 4K. With CMOS camera development, choices increase. Tech advancements enable safer procedures. 1/2.8” camera offers clear images. Combining with monitors and cold light sources boosts procedure effectiveness.

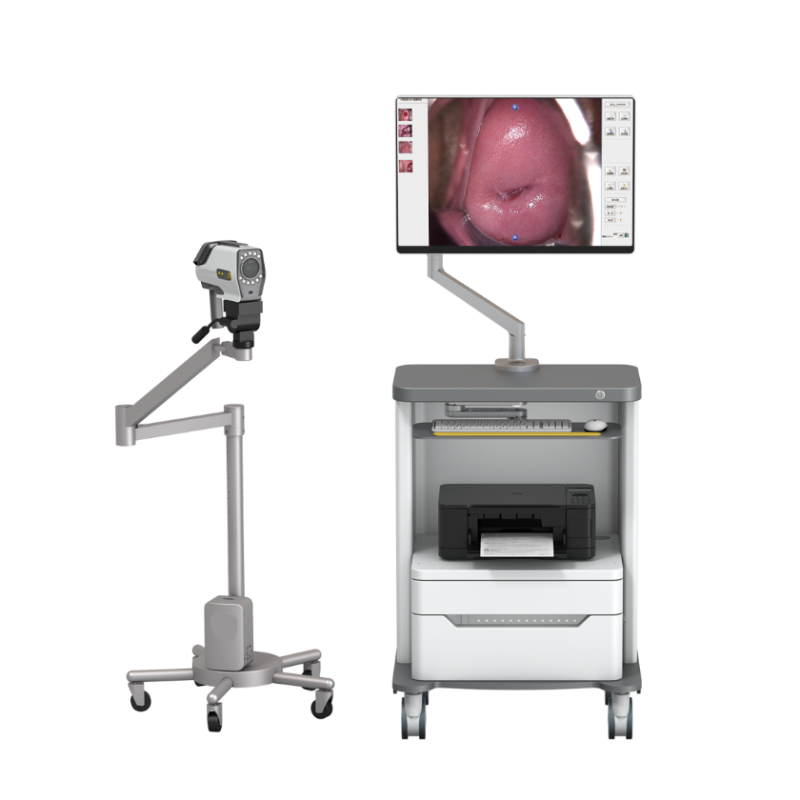

Colposcopy camera with timing, snapshot and freeze functions
The light source of the camera adopts eleven high-stability LEDs, of which 10 are white light and 1 is green light. Adopt unique homogenization technology to reduce reflection, long service life and better color reproduction
The camera bracket and the camera adopt an integrated design, and the unique hovering function of the bracket makes the operation more convenient
Full HD 1920*1080P image output, making clinical examination clearer, more realistic and more accurate
Camera can be configured with remote control
Colposcopy software compatible with hospital PACS system

Full HD 1920×1080 Imaging

1/3" CMOS sensor with 2.1 megapixels delivers Full HD 1920×1080 progressive scanning at 50fps. ≥800 TVL horizontal resolution and ≥50dB SNR ensure crystal-clear, detailed clinical images for accurate diagnosis.

11-LED High-Stability Light Source

11 high-stability LEDs (10 white + 1 green) with unique homogenization technology reduce reflection, extend service life, and provide superior color reproduction. Green light mode enhances vascular visualization for detailed assessment.

Integrated Hovering Bracket

Camera and bracket adopt an integrated design with unique hovering function. The arm holds position at any angle without drift, making operation more convenient and reducing fatigue during prolonged examinations.

Timing, Snapshot & Freeze

Built-in timing function for standardized examination protocols, snapshot for instant image capture, and freeze for detailed frame review. Optional remote control allows hands-free operation during clinical procedures.

Multi-Interface Output

SDI, HDMI, and CVBS output interfaces ensure compatibility with a wide range of displays, monitors, and recording systems. Digital output of Y/Cb/Cr 4:2:2 video signal via SDI for high-fidelity image transmission.

PACS-Compatible Software

Comprehensive digital image analysis software compatible with hospital PACS systems. Supports patient information management, image post-processing, template library, custom report design, medical history statistics, and data backup.

Premium Aluminum Trolley

High-strength 6-series aluminum combined with galvanized sheet construction. Bottom compartment houses the workstation host, convenient for intraoperative examination and report printing. 4-inch silent casters for smooth, quiet mobility.

Comprehensive Workflow

Complete solution from patient registration to report printing. Real-time display with multiple video input, brightness/contrast/chroma/saturation adjustment, video recording/playback, image annotation, and custom report generation in one integrated system.

Category	Details
Product number	YKD-3001
imager	1/3 inch Progressive CMOS
total pixels	2100,000 pixels
Image size (horizontal*vertical)	1920×1080
Scanning system	Progressive Scanning
frame rate	(1920×1080)50p
signal to noise ratio	≥50dB
video output	Video output via "SDI, HDMI, CVBS"
Horizontal resolution	≥800 lines
