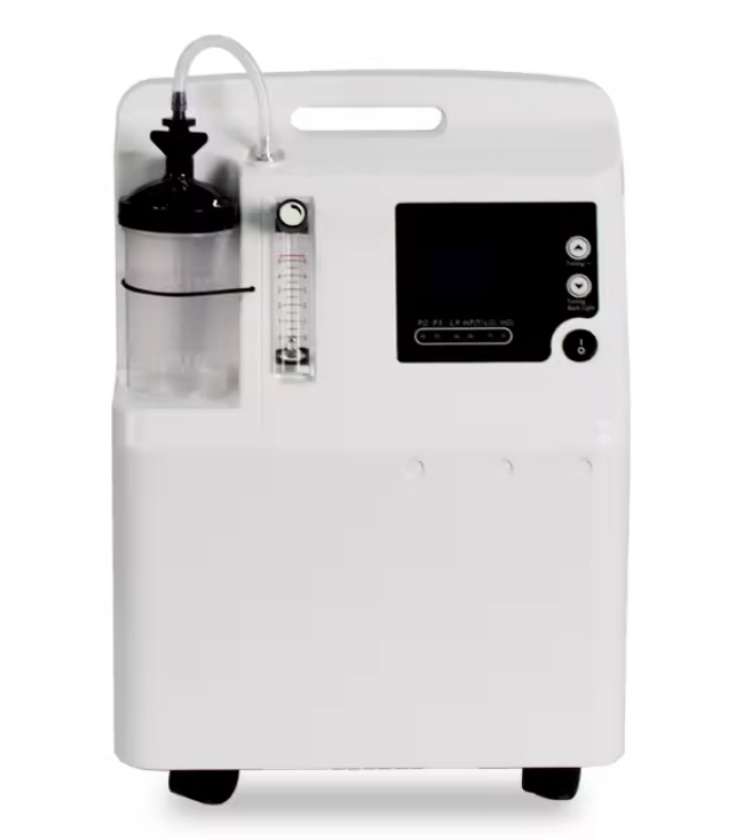

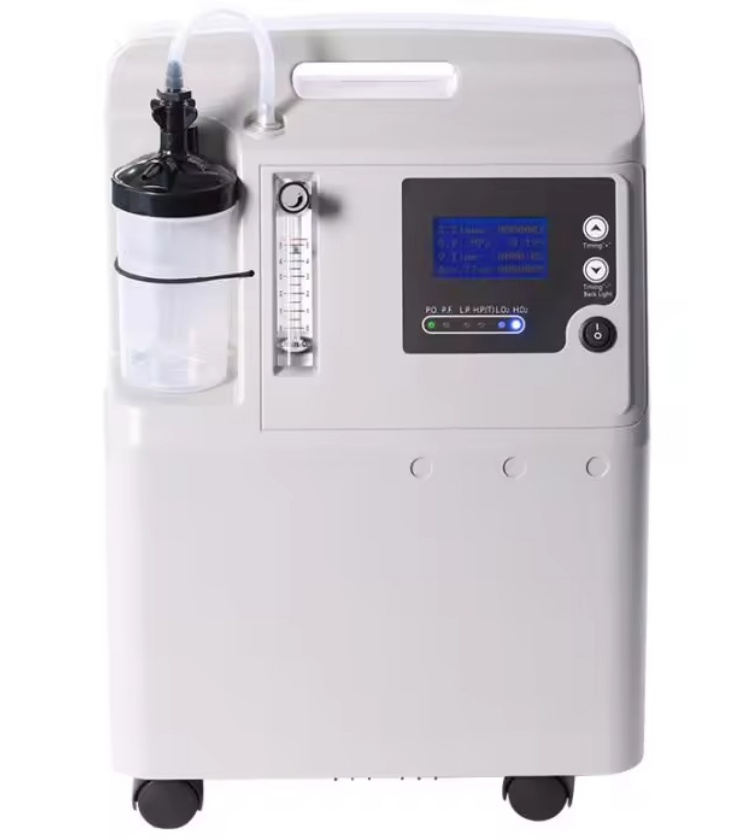

Stationary oxygen concentrator MZ JAY-3AW/JAY-5AW
JAY – 3AW/5AW: ≥93% O₂, 24/7 use. 6PSI humidifier, 4 castors (2 brakes). Easy LCD, ≤40dB, ≤300W.
3L (JAY-3AW) & 5L (JAY-5AW) flow. Both: 93%±3% O₂, 24/7, 6PSI humidifier. Alarms (power, pressure, purity).
These concentrators: 93%±3% O₂, 24/7 operation. 6-10PSI pressure, mobile castors. Simple LCD, safe alarms.
Technical Specifications
With oxygen concentration above 93%;
Innovative cooling technology to ensure 24/7/365 operation;
Humidifier bottle with a pressure relief value of 6PSI, safer and more comfortable;
Four flexible castors with two brakes, easy to move or situate in any direction, safer and more convenient;
Simple operation functions and easy-to-read LCD Display;
Category | JAY-3AW | JAY-5AW |
|---|---|---|
Flow Rate | 3L/min | 5L/min |
Sound Level | ≤40dB | ≤40dB |
Oxygen Concentration | 93% (±3%) | 93% (±3%) |
Power Consumption | ≤ 300W | ≤ 300W |
Outlet Pressure | 6–10PSI (0.04–0.07mpa) | 6–10PSI (0.04–0.07mpa) |
Input Frequency | 50Hz ; 60 Hz | 50Hz ; 60 Hz |
Input Voltage | AC230V ± 10% ; AC110V ±10% | AC230V ± 10% ; AC110V ±10% |
Alarm | 1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm | 1. Power failure alarm; 2. High and low pressure alarm; 3. Low oxygen concentration alarm |
