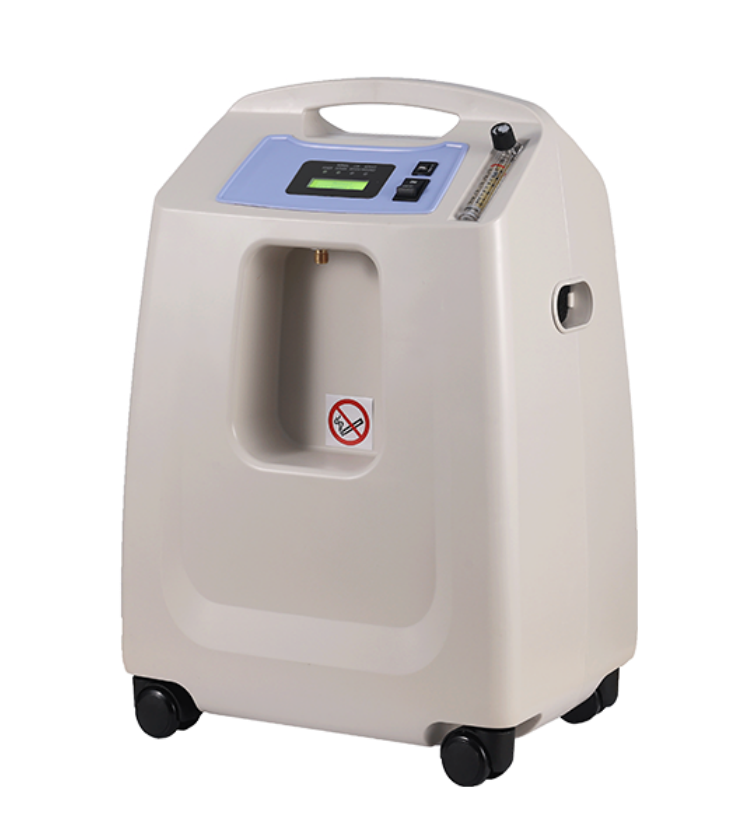

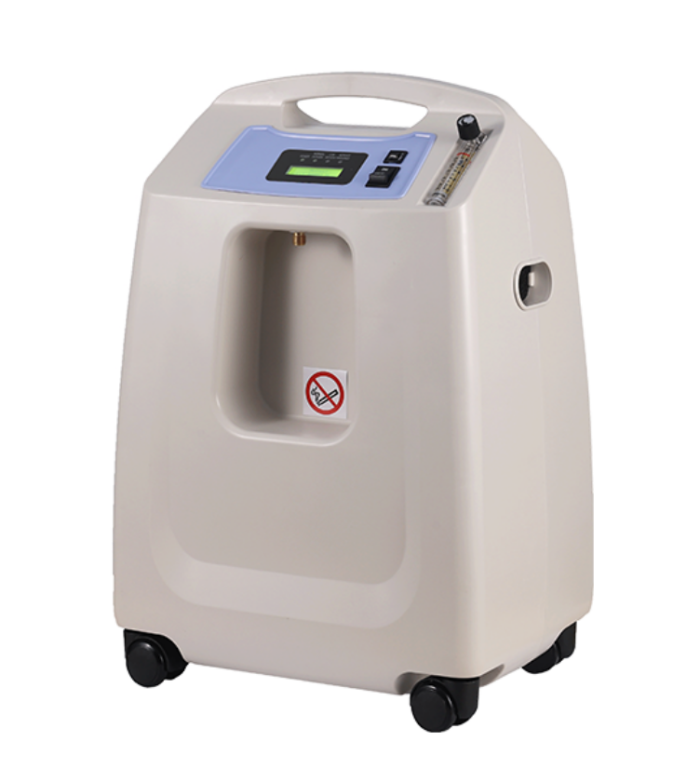

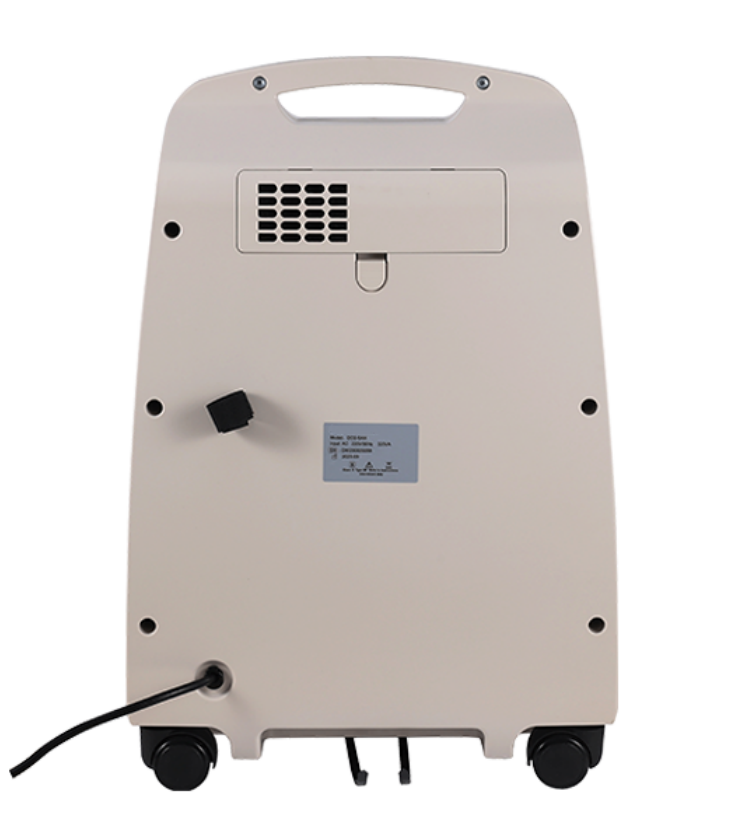

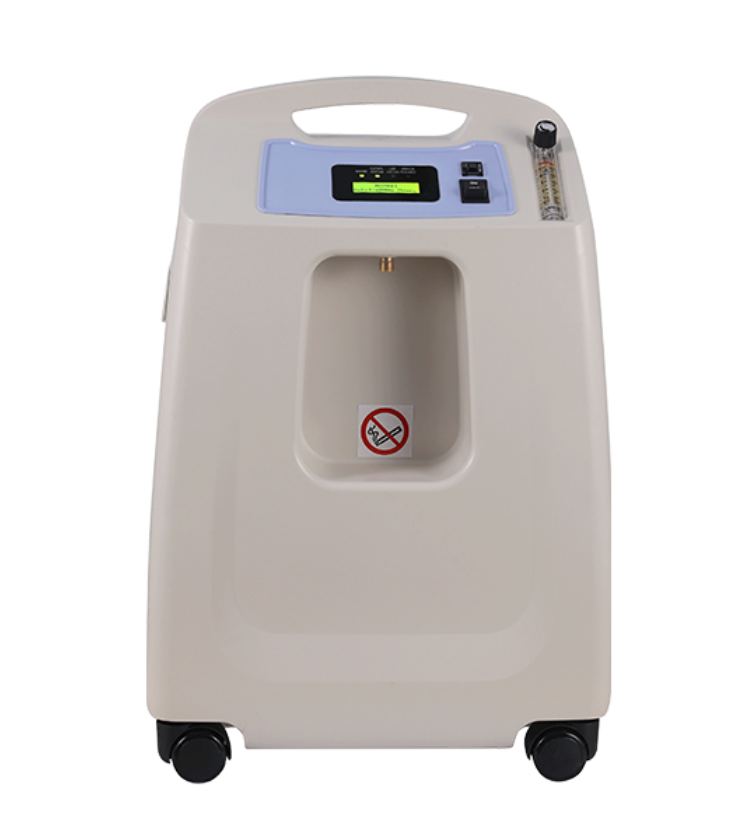

Classical Series Oxygen Concentrator DM DO2-5AW

This oxygen generator can stably output oxygen with a purity of 93%±3%, with a flow rate of 1~5 LPM suitable for multiple scenarios. It operates continuously for 24 hours, features four alarm systems for protection, is low-noise, portable, and easy to maintain.
This oxygen generator supplies oxygen with a purity of around 93%, meeting the 5-liter flow requirement. It works stably for 24 hours, is equipped with multiple alarms, has a small size, low noise, requires little maintenance, and is widely applicable.

Brief Introduction:

Features:

24 hours work continuously
Four alarm systems: low oxygen concentration alarm, power off alarm, pressure circulation fault alarm and compressor fault alarm
AVG oxygen purity: 93%±3%
Low sound level: less than 45dB (A)
Net weight: only 15.9kg
Strong ABS shell, fashion design.

Technical data
Oxygen flow	1~5 LPM
Output pressure	58.6 kPa
Power supply	AC 220V±22V, 50Hz±1Hz
Input power	320VA (AVER)
Oxygen concentration	1~5 LPM 93%±3%
Operation Environment	Temperature 5°C ~40°C Humidity≤80% Atmospheric pressure:86kPa~106 kPa
OCSI indicator (Option)	85% above green; 85%below yellow; 82% below red
N.W.	15.9kg
Noise	<45dB(A)
Size	32cm×43cmx62 cm(L×W×H )
Operation regular	Time cycle/pressure rotation
Transportation/storage condition	Temperature-20°C ~55°C Humidity≤90% Atmospheric pressure:86kPa~106 kPa
Equipment class&Type	Class ll Type:BF
