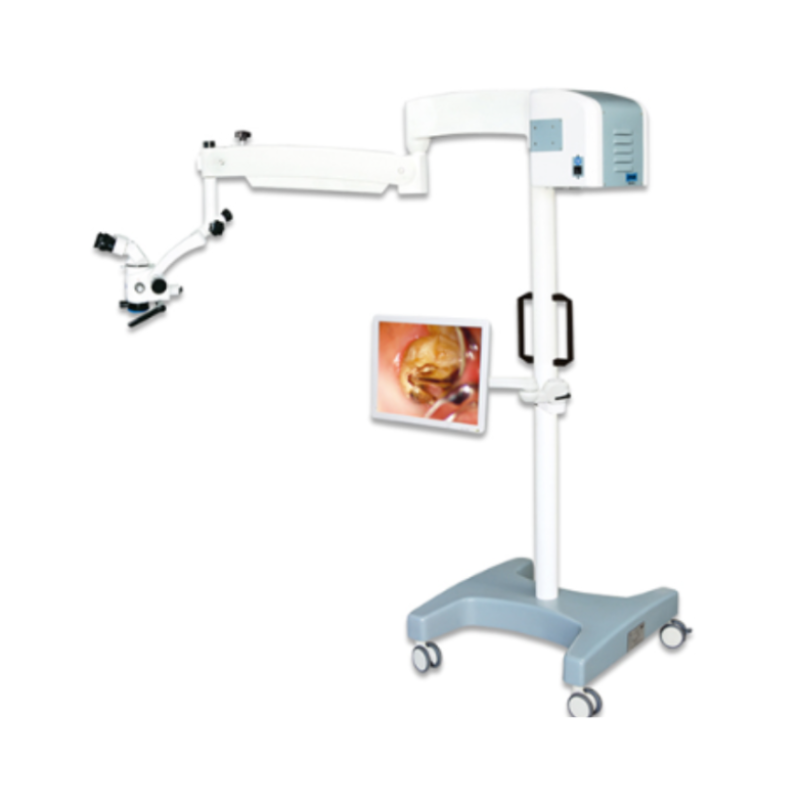

Standard Definition Surgical Microscope ZJ LZJ-6E Model D
0-180° variable – angle binocular tube + 5 – speed zoom (3.4x-20.5x), 250mm objective meets basic surgical visualization
LED illumination: 30,000-60,000lx adjustable, Φ85mm spot + auto – off. Yellow/green filters for tissue viewing
CONFIGURATION | TECHNICAL PARAMETERS |
|---|---|
Binocular Tube | 0-180°0ptical Hinge-type Variable -angle Binocular Tube |
Focal Length of Binocular Tube | F=170mm |
Pupil Distance Adjuster for Binocular Tube | Adjustment Range:50mm-80mm |
Field of View Diameter | Ф66mm-Ф10.4mm |
Eyepiece Magnification | 12.5X/18B |
Diopter Adjustment Range | ±6D |
Five-speed Drum Zoom System | Magnifications: 3.4x,5.1x,8.3x, 13.5x,20.5x |
Apochromatic Objective with Fine Focus | Working Distance of Objective: 250mm, Adjustable Focus Range: 20mm |
LED lllumination or Halogen Lamp or Xenon Lamp (Optional forlllumination),Object Surface llluminance (F= 250) | Maximum llluminance ≥30000-60000lx,Adjustable Brightness |
Diameter of llluminated Light Spot (F250) | Ф85mm |
Color Filter Regulator | Yellow Color Filter, Green (Achromatic) Color Filter, Heat - Insulating Sheet |
Desktop Fixed Frame | Including Desktop Fixer, Column, Large Horizontal Arm (510mm), Small Horizontal Arm(620mm), etc. Maximum Extension Reach: 1350mm, Vertical Lifting Range > 350mm |
120°Damping -type Balanced Cantilever | Can Rotate with Damping Balance in Six Degrees of Freedom |
