Semi-automatic Microtome KD 3358

Advanced drive system (trimming, slicing, fast modes). LCD shows metrics. Safety: alarm, overload, auto – sleep. Specs: 0 – 60μm slicing, 29kg.
Knife – rest moves left/right (3 – position blade). Quick – swap chucks. Specs: 28mm/52mm displacement, 0.25μm graduation.
Lockable handwheel (free positioning). Detachable waste tank. Specs: 450μm/s speed, 585×410×305mm.

Advanced imported drive system with functions of trimming, slicing, fast forward, fast backward and conversion.

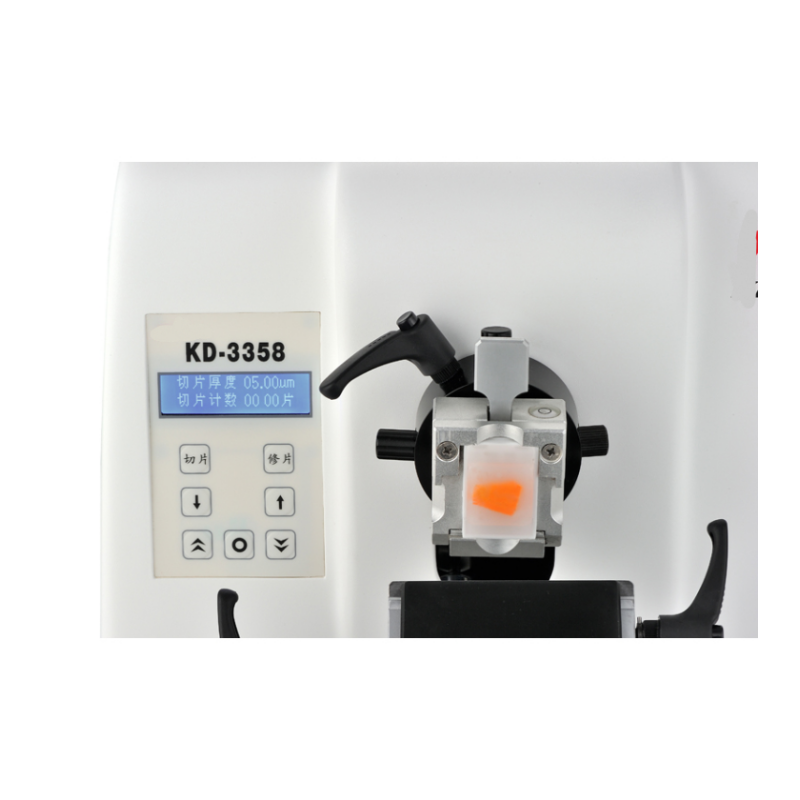

LCD displays slicing thickness, trimming thickness and slicing count.
Equipped with safety alarm system, drive overload protection and automatic sleep protection.
Quick and convenient interchangeable specimen chucks.

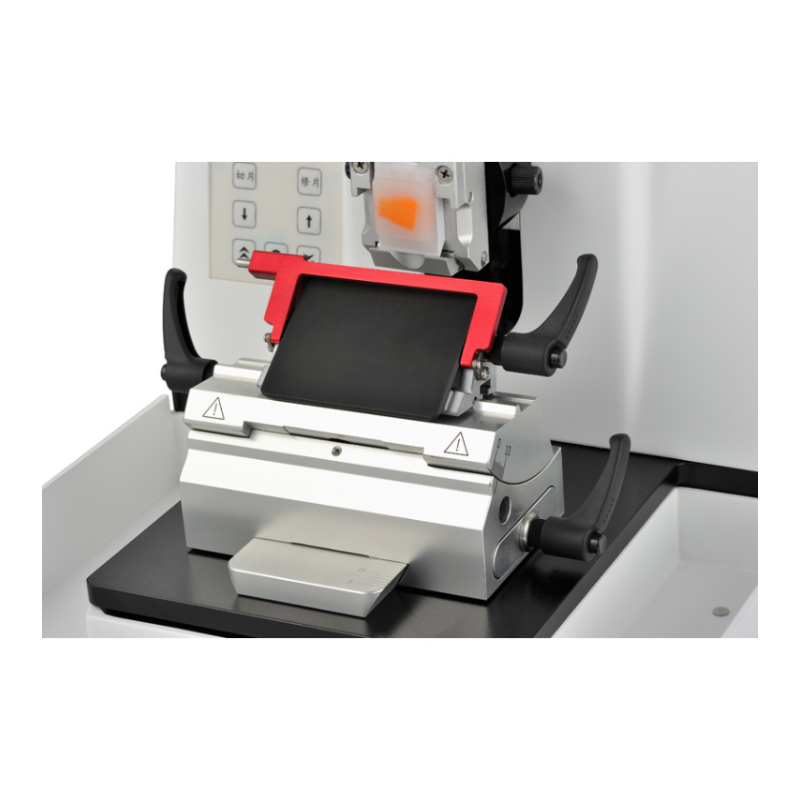

Left-right movement of the knife rest effectively utilizes the blade edge (slicing in three positions).
Red knife guard rod safely covers the blade edge, and the blade pushing rod allows quick and easy blade replacement.

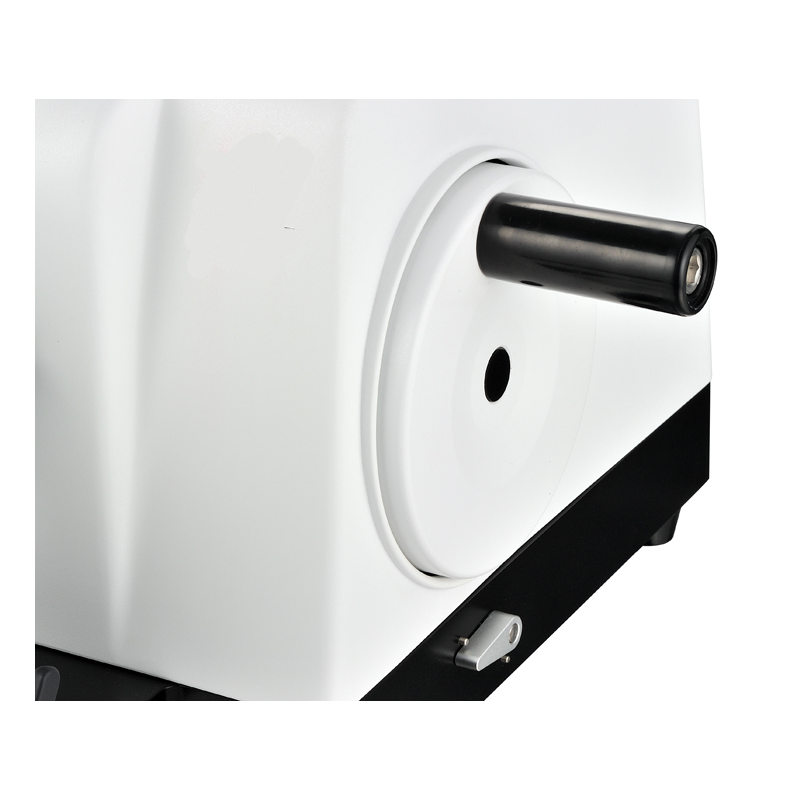

Handwheel balance adjustment system, which can be locked at any position to ensure the safety of the slicing process and enable free positioning.
Easy-to-detach large-capacity waste tank; the top of the outer cover can store disposable blades and other tools.

Category	Parameter	Category	Parameter
Slicing Thickness Range	0 – 60μm	Trimming Thickness Range	0 – 60μm; 0 – 100μm; 0 – 900μm
Sample Horizontal Displacement	28mm	Sample Vertical Displacement	52mm
Maximum Movement of Knife – rest Base	60mm	Maximum Left – Right Movement of Knife – rest	23mm
Fast Forward & Fast Backward Displacement Speed	450μm/s	Sample Positioning	Horizontal 8°; Vertical 8°; 360° Rotation
Sample Automatic Return Function	With sample automatic return function	Minimum Graduation of Slicing Adjustment	0.25μm
Maximum Sample Size	50×70(mm)	Slicing Accuracy	±5%
Power Supply Voltage	AC110V ~ 120V/ AC220V ~ 240V	Power	100VA
Overall Dimension	585×410×305(mm)	Overall Weight	29kg

Click to enlarge

Categories: Laboratory Equipment, Microtome Tags: Analytical Sliding Microtome, Microtome for Pathological Tissue, Semi Automatic Rotary Microtome

Description
Reviews (0)

Description

Category	Parameter	Category	Parameter
Slicing Thickness Range	0 – 60μm	Trimming Thickness Range	0 – 60μm; 0 – 100μm; 0 – 900μm
Sample Horizontal Displacement	28mm	Sample Vertical Displacement	52mm
Maximum Movement of Knife – rest Base	60mm	Maximum Left – Right Movement of Knife – rest	23mm
Fast Forward & Fast Backward Displacement Speed	450μm/s	Sample Positioning	Horizontal 8°; Vertical 8°; 360° Rotation
Sample Automatic Return Function	With sample automatic return function	Minimum Graduation of Slicing Adjustment	0.25μm
Maximum Sample Size	50×70(mm)	Slicing Accuracy	±5%
Power Supply Voltage	AC110V ~ 120V/ AC220V ~ 240V	Power	100VA
Overall Dimension	585×410×305(mm)	Overall Weight	29kg
