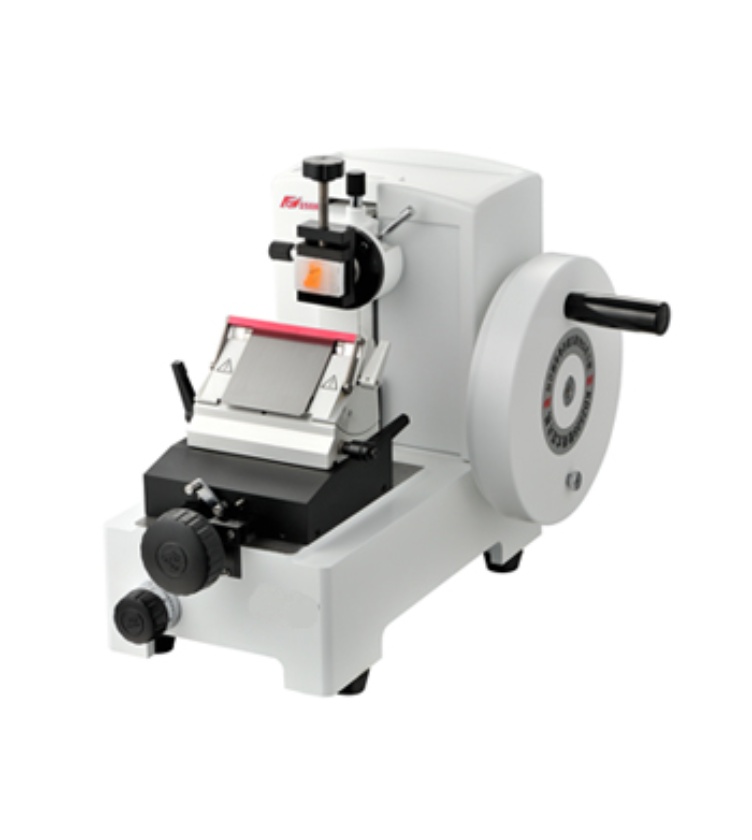

Semi-automatic Microtome KD 2508

Equipped with precision guideways, it features high precision, stability, easy operation, wear-free performance, and continuous uniform slicing. Suitable for regular, hard tissues and polymeric materials like plastics.
3D lockable sample holder for easy section angle adjustment; automatic knife feeding, knife rest movement without finger contact with blades; handwheel lockable at highest point for safety.
Works with standard steel or disposable blades. Sealed outer cover: no disassembly, easy to clean.

This machine adopts internationally advanced technology with precision roller linear guideways, featuring high precision, good stability, easy handling, flexible operation, no wear, and uniform continuous slicing.
Suitable for slicing of regular tissues, hard tissues, and polymeric tissues: plastics, bones, fibers, plants, hair strands, etc.
The sample holder is lockable on three – dimensional axes for easy adjustment of the sample section angle.
The knife base moves forward/backward with automatic knife feeding; the knife rest can move longitudinally and transversely, no need to touch the slicing blade with fingers.
Fine handwheel balance adjustment system, lockable at the highest point to ensure slicing process safety.
Ideal slicing achievable whether using standard slicing steel blades or disposable blades.

Sealed box – shaped outer cover requires no disassembly and is easy to clean.

Category	Parameter
Slicing Thickness Range	1 – 35μm continuous slicing, >35μm arbitrary adjustment; 1 – 60μm continuous slicing, >60μm arbitrary adjustment (optional)
Trimming Thickness Range	0 – 500μm
Minimum Graduation of Slicing Adjustment	1μm
Sample Adjustment Direction	Horizontal 8°; Vertical 8°; 360° Rotation
Maximum Movement of Knife – rest Base	60mm
Maximum Left – Right Movement of Knife – rest	23mm
Sample Horizontal Displacement	28mm
Sample Vertical Displacement	60mm
Slicing Accuracy	±5%
Maximum Sample Size	50×60(mm)
Knife Rest Type	Dual – purpose (compatible with wide/narrow disposable blades)
Disposable & Steel Blade Holders	Optional, quick interchangeable
Overall Dimension	420×330×330(mm)
Overall Weight	19kg
