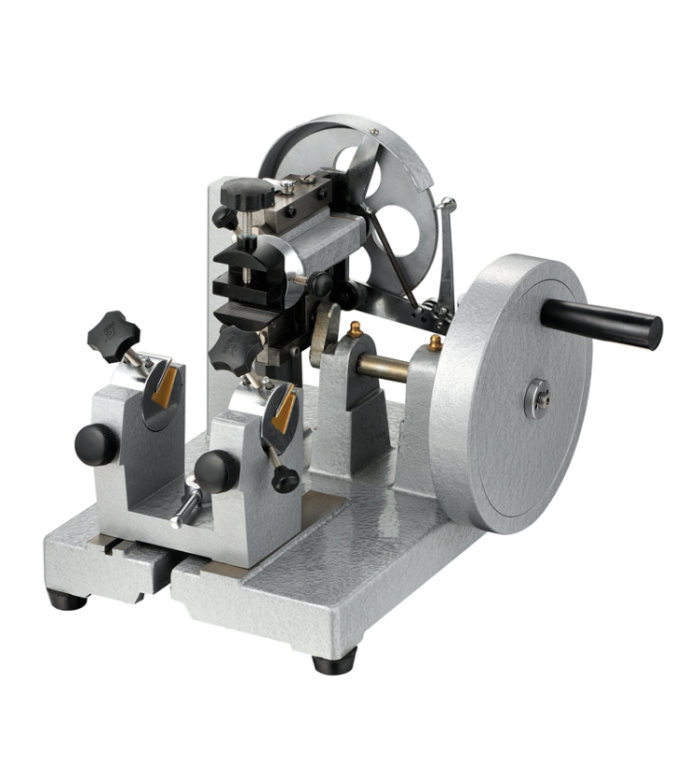

Semi-automatic Microtome KD 202

Offers 0–25μm slicing, 0–500μm trimming, and 1μm adjustment resolution for ultra-fine control.
Accommodates 35×25mm samples, with 30mm horizontal/55mm vertical displacement and 50mm knife holder base travel for adaptability.
Features ±10% slicing accuracy, 280×300×240mm dimensions, and 20kg weight – balances precision and space efficiency.

Description

Parameter Name	Parameter Value
Slicing Thickness	0–25μm
Trimming Range	0–500μm
Slicing Adjustment Step	1μm
Maximum Sample Size	35×25 (mm)
Maximum Travel of Knife Holder Base	50mm
Sample Horizontal Displacement	30mm
Sample Vertical Displacement	55mm
Slicing Error	±10%
Overall Dimensions	280×300×240 (mm)
Overall Weight	20kg
