OMS2360 Surgical Microscope

Professional motorized surgical microscope for neurosurgery, ENT, brain and spine surgery.
3x‑16x continuous 6:1 zoom, coaxial assistant binocular tube, 100000lux coaxial illumination,
multi‑objective lens options, motorized focusing & X‑Y swing, 8‑function handle controller for hospital microsurgery.

Basic Configuration

MAGNIFICATION SYSTEM	OMS2380: Continuous Zoom, magnification factor γ=0.4x–2.4x; OMS2360: Six-Step Optical Zoom, magnification factor γ=0.3x, 0.5x, 0.8x, 1.2x, 2x, 3x

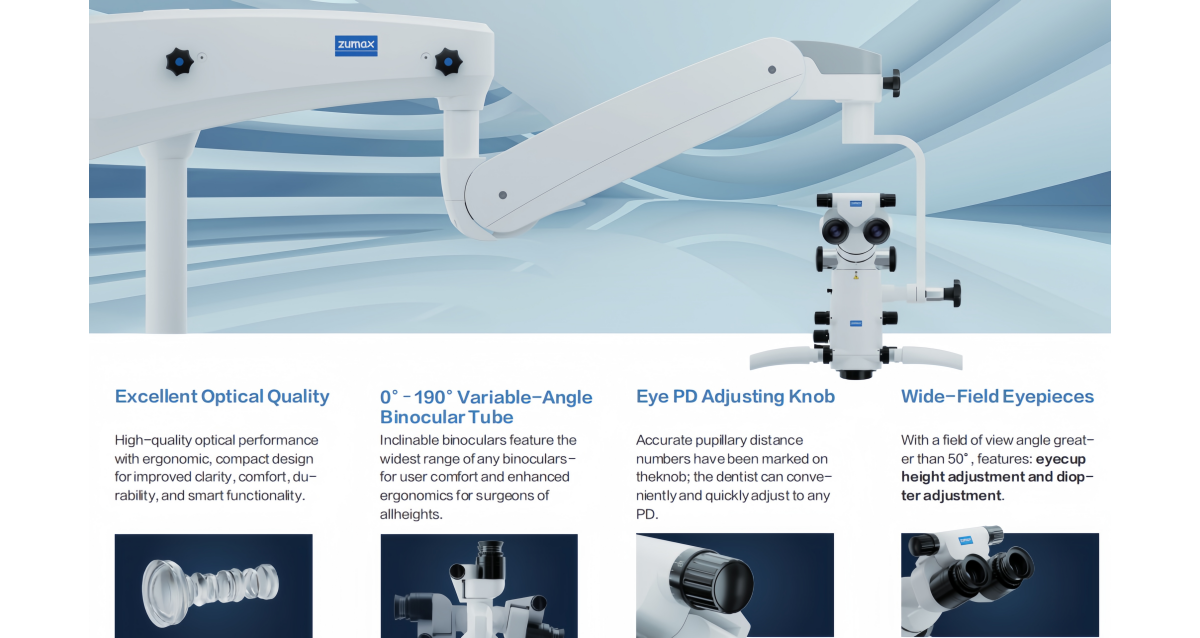

TUBES	0°–190° inclinable binocular tube with PD adjusting knob
EYEPIECES	10X/12.5X wide-field eyepieces, also suitable for eyeglass wearers

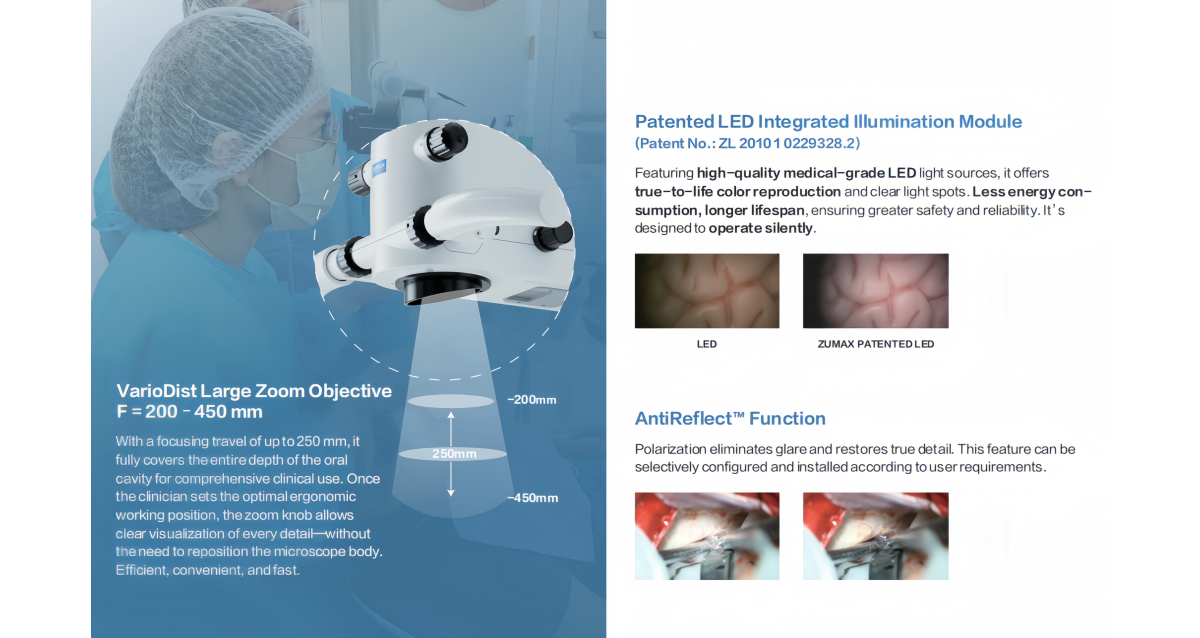

OBJECTIVE FOCUS	VarioDist Objective Lens, variable working distance 200–450mm
OBJECT SURFACE ILLUMINATION (F250)	LED light source > 70,000 Lx
SPOT DIAMETER	Φ87 mm at working distance 250 mm
FIELD OF VIEW DIAMETER (F250)	123.8mm–11.6mm
LASER FILTERS	Argon: 488–514nm, Diode: 660nm, Diode: 800–830nm, Diode: 980nm & Nd:Yag 1064nm

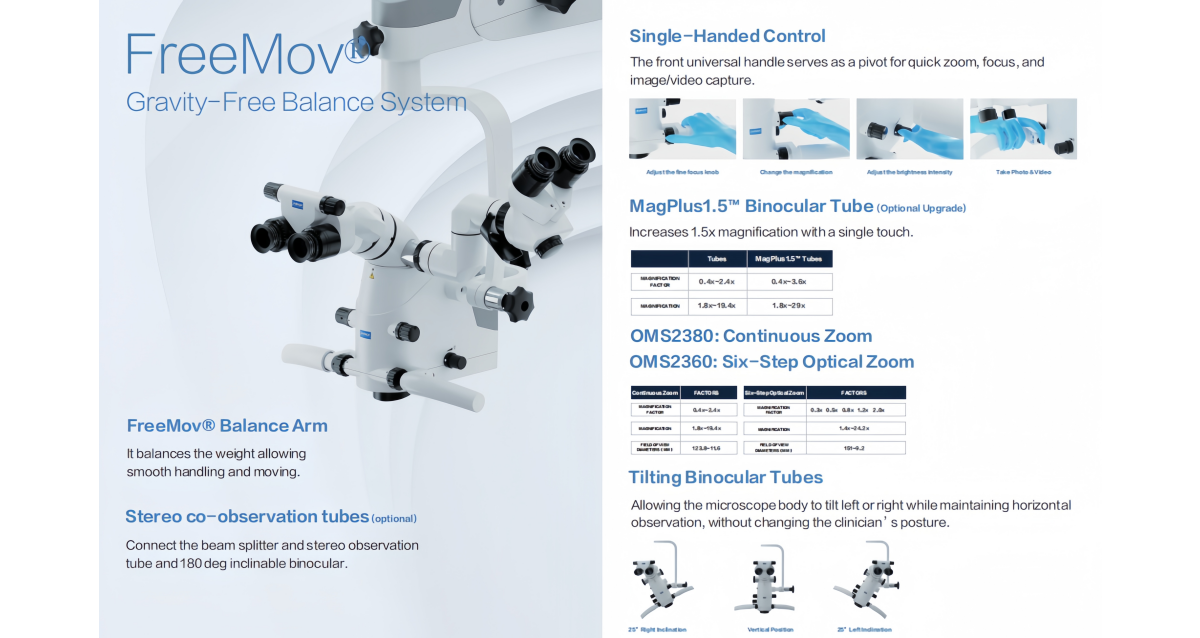

FREE MOV BALANCING ARM	Can adjust torque and damping according to lens load to keep the microscope balanced. Makes operation smooth and comfortable.
ARMS	1520mm (first arm 500mm, second arm 720mm, balancing arm 300mm)
ILLUMINATION SYSTEM	Continuously adjustable brightness, life span not less than 60,000 hours
AUTOMATIC SWITCH	The arm is equipped with an automatic power switch device

Upgraded Configuration (Optional)

EYEPIECE	10X / 16X / 20X

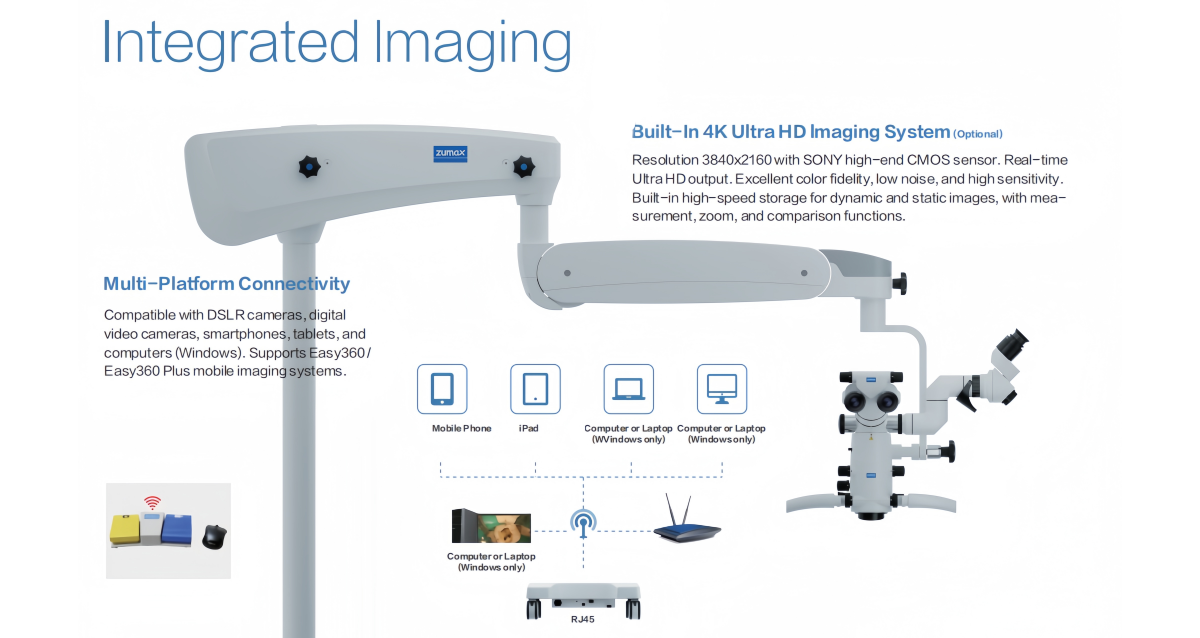

INTEGRATED CAMERA	HDMI output, FullHD 1920 × 1080 MioCloud™ Image Management (optional)
ADAPTED IMAGING SYSTEM	Adapted to Canon / Sony / Nikon camera Adapted to Canon / Sony / Nikon camera Rota 360° adapter Easy360 / Easy360 Plus mobile phone adapter
BUILT-IN 4K IMAGING	HDMI + DVI dual screen output Ultra HD 4K real-time capture, resolution 3840 × 2160 Ultra HD 4K3D real-time capture, resolution 3840 × 2160

Description

MAGNIFICATION SYSTEM	OMS2380: Continuous Zoom, magnification factor γ=0.4x–2.4x; OMS2360: Six-Step Optical Zoom, magnification factor γ=0.3x, 0.5x, 0.8x, 1.2x, 2x, 3x
TUBES	0°–190° inclinable binocular tube with PD adjusting knob
EYEPIECES	10X/12.5X wide-field eyepieces, also suitable for eyeglass wearers
OBJECTIVE FOCUS	VarioDist Objective Lens, variable working distance 200–450mm
OBJECT SURFACE ILLUMINATION (F250)	LED light source > 70,000 Lx
SPOT DIAMETER	Φ87 mm at working distance 250 mm
FIELD OF VIEW DIAMETER (F250)	123.8mm–11.6mm
LASER FILTERS	Argon: 488–514nm, Diode: 660nm, Diode: 800–830nm, Diode: 980nm & Nd:Yag 1064nm
FREE MOV BALANCING ARM	Can adjust torque and damping according to lens load to keep the microscope balanced. Makes operation smooth and comfortable.
ARMS	1520mm (first arm 500mm, second arm 720mm, balancing arm 300mm)
ILLUMINATION SYSTEM	Continuously adjustable brightness, life span not less than 60,000 hours
AUTOMATIC SWITCH	The arm is equipped with an automatic power switch device

EYEPIECE	10X / 16X / 20X
INTEGRATED CAMERA	HDMI output, FullHD 1920 × 1080 MioCloud™ Image Management (optional)
ADAPTED IMAGING SYSTEM	Adapted to Canon / Sony / Nikon camera Adapted to Canon / Sony / Nikon camera Rota 360° adapter Easy360 / Easy360 Plus mobile phone adapter
BUILT-IN 4K IMAGING	HDMI + DVI dual screen output Ultra HD 4K real-time capture, resolution 3840 × 2160 Ultra HD 4K3D real-time capture, resolution 3840 × 2160
