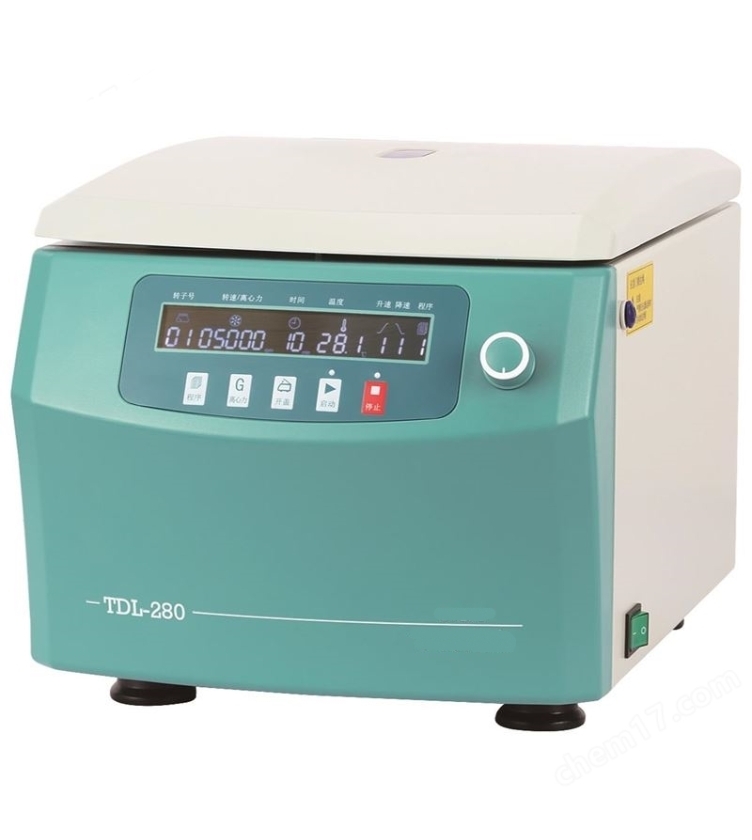

Low Speed Centrifuge BO TDL-280

The TDL – 280 is a compact benchtop centrifuge (43×33×31cm) designed for low – speed applications in medical, environmental, and biotech fields. With a 5000rpm max speed, 3630×g RCF, and 5ml×24 capacity, it’s ideal for small – volume samples. The AC brushless motor and microcomputer control enable 9 programmable cycles with real – time parameter adjustment, making it versatile for diverse lab needs.
Engineered for maximum protection, the TDL – 280 includes automatic rotor imbalance detection, temperature monitoring, and a micro – motor door lock that ensures silent, secure closure. Its fault diagnosis system safeguards against overspeed, over – temperature, and door malfunctions, while the 350W power consumption and ≤65dB noise level make it an energy – efficient and quiet choice for shared lab spaces.

Maximum Centrifugal Force	3630xg
Typical Configuration	Horizontal Rotor Centrifuge	Instrument Function	Ordinary Centrifuge
Origin Category	Domestic	Instrument Type	Benchtop Centrifuge
Centrifugation Grade	Others	Size	430x330x310mm
Maximum Speed	5000rpm	Maximum Capacity	5ml
Price Range	To be negotiated	Feature Parameter	Low – speed
Application Field	Medical and Sanitary, Environmental Protection, Biological Industry, Comprehensive

二、

Maximum Speed	5000r/min	Control System	Variable – frequency Processor
Maximum Capacity	5ml×24 pieces	Drive System	AC Variable – frequency Motor
Maximum Relative Centrifugal Force	3630Xg	Power Supply	AC220V 50Hz
Timing Range	1s – 99min59s	Input Power	350W
Noise	≤ 65dB (A)	Size (Length * Width * Height)	43×33×31cm
Rotation Speed Accuracy	±10rpm	Net Weight	23kg

三、

Driven by an AC variable – frequency brushless motor, maintenance – free, equipped with a Hall speed measurement system;
Microcomputer variable – frequency control technology, with liquid crystal display;
Parameters (rpm/rcf) can be changed at any time during operation without stopping the machine;
Programmable operation, 9 sets of program storage, 9 levels of acceleration and deceleration, and soft – brake function;
Single – knob setting key for convenient and quick parameter setting;
Adopt a spring – suspended balance system, with an unbalance capacity of up to 15 grams;
Constant – speed timing function: the countdown starts only after reaching the set speed;
With automatic rotor balance measurement function, it will automatically stop running when unbalance occurs;
Dual – channel airflow heat dissipation technology, equipped with a temperature anomaly detector to protect sample safety;
After centrifugation, the centrifuge cover opens automatically for easy sample loading and unloading;
Micro – motor electronic door lock, press lightly to close the door cover quickly, safe and mute;
With an automatic fault diagnosis system, providing multiple protections for overspeed, over – temperature, unbalance, electronic door cover, etc., to ensure the safe operation of the instrument.

Low Speed Centrifuge BO TDL-280

Maximum Centrifugal Force

3630xg

Typical Configuration

Horizontal Rotor Centrifuge

Instrument Function

Ordinary Centrifuge

Origin Category

Domestic

Instrument Type

Benchtop Centrifuge

Centrifugation Grade

Others

Size

430x330x310mm

Maximum Speed

5000rpm

Maximum Capacity

5ml

Price Range

To be negotiated

Feature Parameter

Low – speed

Application Field

Medical and Sanitary, Environmental Protection, Biological Industry, Comprehensive

二、

Maximum Speed

5000r/min

Control System

Variable – frequency Processor

Maximum Capacity

5ml×24 pieces

Drive System

AC Variable – frequency Motor

Maximum Relative Centrifugal Force

3630Xg

Power Supply

AC220V 50Hz

Timing Range

1s – 99min59s

Input Power

350W

Noise

≤ 65dB (A)

Size (Length * Width * Height)

43×33×31cm

Rotation Speed Accuracy

±10rpm

Net Weight

23kg

三、

Driven by an AC variable – frequency brushless motor, maintenance – free, equipped with a Hall speed measurement system;

Microcomputer variable – frequency control technology, with liquid crystal display;

Parameters (rpm/rcf) can be changed at any time during operation without stopping the machine;

Programmable operation, 9 sets of program storage, 9 levels of acceleration and deceleration, and soft – brake function;

Single – knob setting key for convenient and quick parameter setting;

Adopt a spring – suspended balance system, with an unbalance capacity of up to 15 grams;

Constant – speed timing function: the countdown starts only after reaching the set speed;

With automatic rotor balance measurement function, it will automatically stop running when unbalance occurs;

Dual – channel airflow heat dissipation technology, equipped with a temperature anomaly detector to protect sample safety;

After centrifugation, the centrifuge cover opens automatically for easy sample loading and unloading;

Micro – motor electronic door lock, press lightly to close the door cover quickly, safe and mute;

With an automatic fault diagnosis system, providing multiple protections for overspeed, over – temperature, unbalance, electronic door cover, etc., to ensure the safe operation of the instrument.
