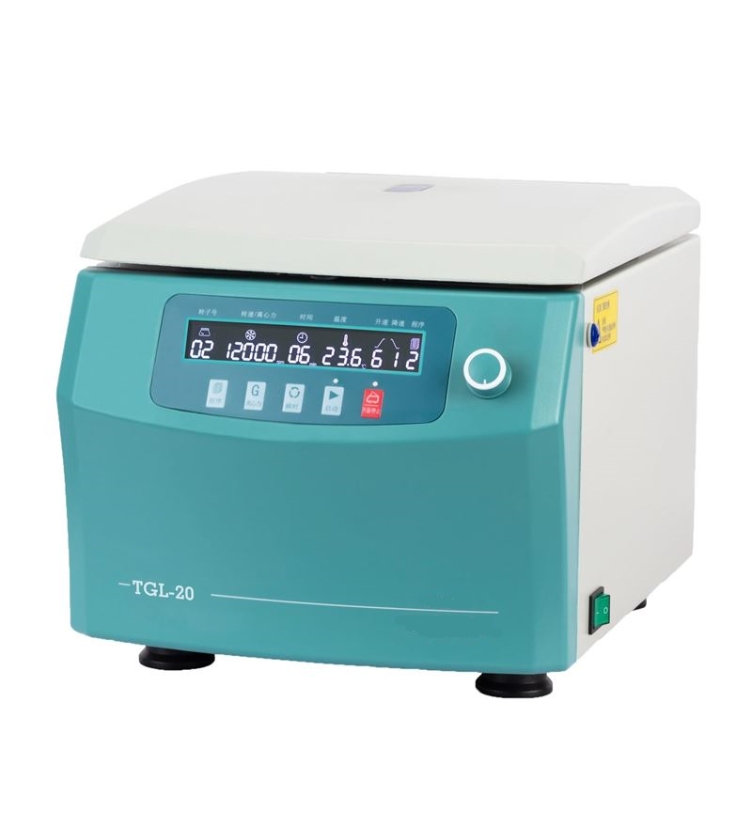

High Speed Centrifuge BO TGL-20

The TGL – 20 benchtop high – speed centrifuge, built for cell/bacteria separation, hits 20000rpm (27810×g RCF) with 100ml×4 capacity. Powered by an AC brushless motor (Hall speed sensing, maintenance – free) and microcomputer – controlled variable frequency tech,
it auto – recognizes rotors and detects imbalance. Ideal for medical labs, it supports 9 programmable protocols, 9 – stage acceleration/deceleration, and real – time parameter adjustment—ensuring precision for high – speed workflows.
Safety – focused, the TGL – 20 includes automatic imbalance detection and a fault – diagnosis system (protects against overspeed/overtemp). Operating at ≤60dB (43×33×31cm, 23kg),

一、

Maximum Centrifugal Force	27810xg
Typical Configuration	Angle Rotor Centrifuge	Instrument Function	Ordinary Centrifuge
Origin Category	Domestic	Instrument Type	Benchtop Centrifuge
Centrifugation Grade	Cell/Bacteria	Size	430330310mm
Maximum Speed	20000rpm	Maximum Capacity	100ml
Price Range	To be negotiated	Feature Parameter	High – speed
Application Field	Medical and Sanitary, Comprehensive

二、Detailed Parameter Table (Model: TGL – 20)

Maximum Speed	20000r/min	Control System	Variable – frequency Processor
Maximum Capacity	100ml×4 pieces	Drive System	AC Variable – frequency Motor
Maximum Relative Centrifugal Force	27810Xg	Power Supply	AC220V 50Hz
Timing Range	1s – 99min59s	Input Power	550W
Noise	≤ 60dB (A)	Size (Length * Width * Height)	43×33×31cm
Rotation Speed Accuracy	±10rpm	Net Weight	23kg

三、Product Features

Microcomputer variable – frequency control technology, with liquid crystal display;
Driven by an AC variable – frequency brushless motor, maintenance – free, equipped with a Hall speed measurement system;
Single – knob setting key for convenient and quick parameter setting;
Programmable operation, 9 sets of commonly – used programs, 9 levels of acceleration and deceleration;
Full – automatic rotor program recognition and unbalance detection function;
The rotor is installed with an expansion – type structure, making rotor replacement easy and convenient;
Parameters (rpm/rcf) can be changed at any time during operation without stopping the machine;
Short Spin instantaneous centrifugation function, centrifugation can be performed by holding down [the corresponding key];
Micro – motor electronic door lock, press lightly to close the door cover quickly, safe and mute;
Constant – speed timing function: the countdown starts only after reaching the set speed;

dad3ae7f7c25ee0194b848fc3d32f534aa606f1ce6d63c979fce947c123d38ec4f1806be78c6e867_800_800_5

Click to enlarge

Categories: High Speed Centrifuge, Laboratory Equipment Tags: Bucket Medical Laboratory Centrifuge, High Speed Centrifuge, High Speed Mini Centrifuge

Description
Reviews (0)

Description

Maximum Centrifugal Force	27810xg
Typical Configuration	Angle Rotor Centrifuge	Instrument Function	Ordinary Centrifuge
Origin Category	Domestic	Instrument Type	Benchtop Centrifuge
Centrifugation Grade	Cell/Bacteria	Size	430330310mm
Maximum Speed	20000rpm	Maximum Capacity	100ml
Price Range	To be negotiated	Feature Parameter	High – speed
Application Field	Medical and Sanitary, Comprehensive

Maximum Speed	20000r/min	Control System	Variable – frequency Processor
Maximum Capacity	100ml×4 pieces	Drive System	AC Variable – frequency Motor
Maximum Relative Centrifugal Force	27810Xg	Power Supply	AC220V 50Hz
Timing Range	1s – 99min59s	Input Power	550W
Noise	≤ 60dB (A)	Size (Length * Width * Height)	43×33×31cm
Rotation Speed Accuracy	±10rpm	Net Weight	23kg

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “High Speed Centrifuge BO TGL-20”

High Speed Centrifuge BO TGL-20

The TGL – 20 benchtop high – speed centrifuge, built for cell/bacteria separation, hits 20000rpm (27810×g RCF) with 100ml×4 capacity. Powered by an AC brushless motor (Hall speed sensing, maintenance – free) and microcomputer – controlled variable frequency tech,

it auto – recognizes rotors and detects imbalance. Ideal for medical labs, it supports 9 programmable protocols, 9 – stage acceleration/deceleration, and real – time parameter adjustment—ensuring precision for high – speed workflows.

Safety – focused, the TGL – 20 includes automatic imbalance detection and a fault – diagnosis system (protects against overspeed/overtemp). Operating at ≤60dB (43×33×31cm, 23kg),

一、

Maximum Centrifugal Force

27810xg

Typical Configuration

Angle Rotor Centrifuge

Instrument Function

Ordinary Centrifuge

Origin Category

Domestic

Instrument Type

Benchtop Centrifuge

Centrifugation Grade

Cell/Bacteria

Size

430330310mm

Maximum Speed

20000rpm

Maximum Capacity

100ml

Price Range

To be negotiated

Feature Parameter

High – speed

Application Field

Medical and Sanitary, Comprehensive

二、Detailed Parameter Table (Model: TGL – 20)

Maximum Speed

20000r/min

Control System

Variable – frequency Processor

Maximum Capacity

100ml×4 pieces

Drive System

AC Variable – frequency Motor

Maximum Relative Centrifugal Force

27810Xg

Power Supply

AC220V 50Hz

Timing Range

1s – 99min59s

Input Power

550W

Noise

≤ 60dB (A)

Size (Length * Width * Height)

43×33×31cm

Rotation Speed Accuracy

±10rpm

Net Weight

23kg

三、Product Features

Microcomputer variable – frequency control technology, with liquid crystal display;

Driven by an AC variable – frequency brushless motor, maintenance – free, equipped with a Hall speed measurement system;

Single – knob setting key for convenient and quick parameter setting;

Programmable operation, 9 sets of commonly – used programs, 9 levels of acceleration and deceleration;

Full – automatic rotor program recognition and unbalance detection function;

The rotor is installed with an expansion – type structure, making rotor replacement easy and convenient;

Parameters (rpm/rcf) can be changed at any time during operation without stopping the machine;

Short Spin instantaneous centrifugation function, centrifugation can be performed by holding down [the corresponding key];

Micro – motor electronic door lock, press lightly to close the door cover quickly, safe and mute;

Constant – speed timing function: the countdown starts only after reaching the set speed;
