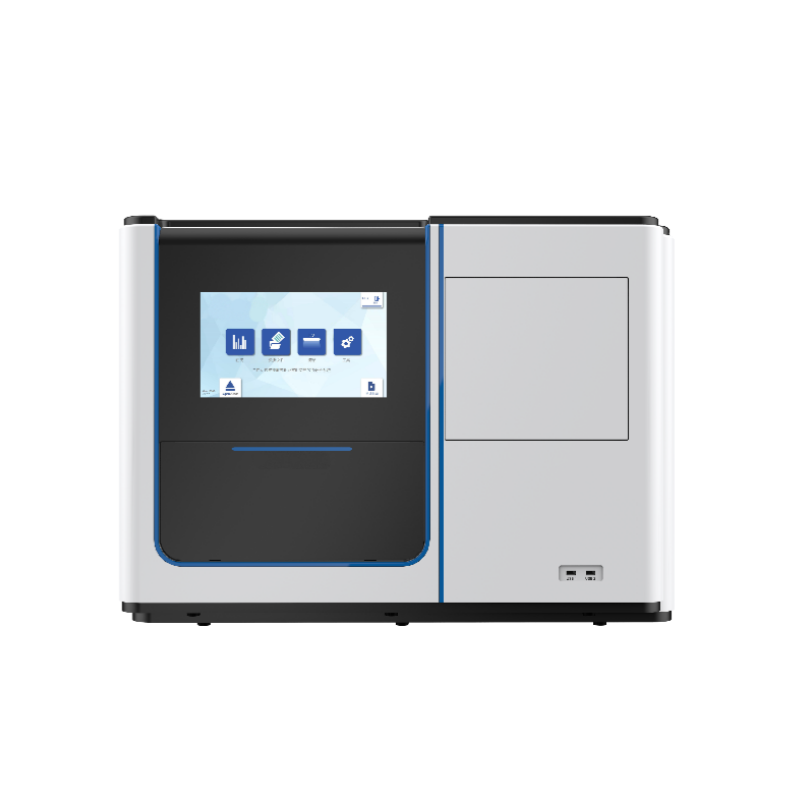

Full-Automatic PCR Analysis System YR MW-1600BL
Integrates nucleic acid extraction + qPCR. Intuitive workflow, no – training operation. Smart loading cuts reagent costs, ideal for on – site tests.
1 – 16 sample throughput, 4 – channel detection (FAM/SYBR etc.). 3.5℃/S ramp rate, 20 – 50μL reaction, suits labs/CDC/food safety.
Android system, 10 – inch touchscreen. Barcode scan, LIMS/LIS support. Portable (80kg), USB output, optional UPS.
Description
Technical Specifications
- Integrated nucleic acid extraction and qPCR analysis in one workflow. Loading samples, result showed. Users without training also run instrument smoothly by our intelligent system.
- The smart sample loading increases the economic efficiency of reagents and consumables, and is especially suitable for on-the-go inspection scenarios. Tiny, light, easy to use, sample variety, cross-reagent compatibility, time-saving.
- All of these will help to immediately empower nucleic acid detection capabilities. MW-1600B will be a capable assistant in third-party laboratories, food microbiological detection, CDC, commodity inspection, and Animal CDC.
Category | Parameter | Details |
|---|---|---|
Basic | Model | MW-1600BL |
Dimensions | 815×570×635mm (W/D/H) | |
Weight | 80kg | |
Sample throughput | 1-16 can be selected flexibly | |
Run time | Up to 70 mins (different kits will vary) | |
Extract Module | Sample volume | 200μL/400μL/1000μL |
Elution volume | 50μL/80μL/100μL | |
PCR Reaction | Reaction volume | 20-50μL |
Temp. Control System | Temp. control range | 4℃-99℃ |
Maximum ramp rate | 3.5℃/S (Heating/Cooling) | |
Temperature Accuracy | ±0.1℃ | |
Data input | Barcode scanning (2D/3D) | |
Data Output Form | USB | |
Hardware | UPS(Optional) | Power: 400W |
