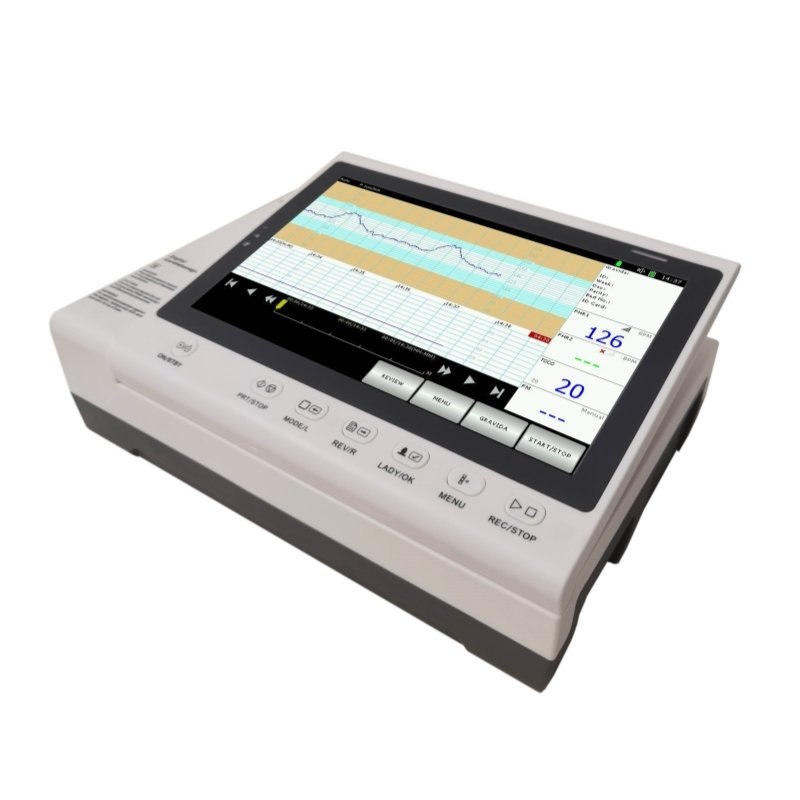

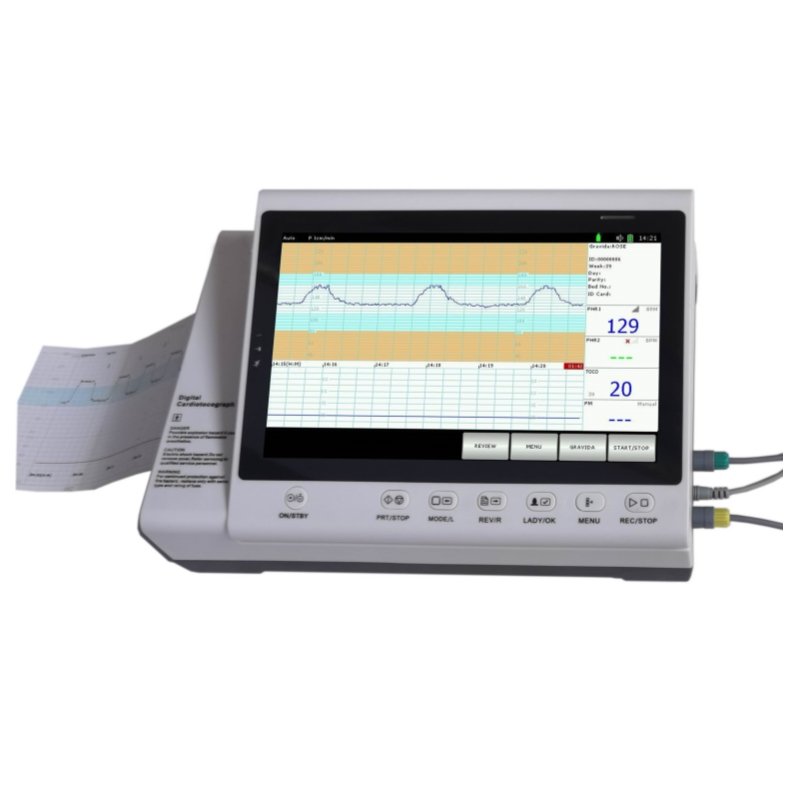

Fetal Monitoring System FM-6018
Large-Capacity Wireless Monitoring: Supports up to 12 beds + 24 wireless probes; enables single/twin/triplet monitoring, seamless probe replacement, full-screen touch, and optional dual-host backup.
Behavior-Based Probe Management: Centralizes multi-bed device management through intelligent, behavior-based wireless probe tracking to improve clinical workflow and efficiency.
AI-Assisted & Structured Data: Provides structured fetal monitoring data; AI auto-selects segments and generates electronic reports, offering robust data support for scientific research.
Portable & Versatile Design: Features a 10.2″ LED touch-screen with 90° rotation, built-in thermal printer, USB data storage/transmission, and a rechargeable Li-ion battery for convenient portable use.
Description
Technical Specifications
Functional Characteristics
- 10.2" LED touch-screen, 90° rotation screen.
- Twins Probe Available.
- CTG waveforms can be frozen.
- Thermal printer with 112mm, synchronization print.
- Auto interpretation and NST Grade.
- High performance waterproof Probe is equipped.
- Up to 500 patients data saving, USB can be supported.
- Data transmitting to PC via USB.
- Patient's information can be input.
- Historical data can be reviewed and printed.
- Built-in rechargeable Li-ion battery, AC/DC power conversion.
- Sleep mode to save energy and extend LED screen life.
- Portable design with hidden handle, convenient to carry.
- Multiple language support.
- 7 level printing thickness can be chosen.
- Adapt to 110-230V, 50/60Hz AC power supply.
Product Features
Touch Mode
Quick Input
Convenient Setting
Unlimited Storage
Technical Index
| Ultrasonic Operating Frequency | 3MHz, ±10% | FHR Range | 50-240 beats/min |
|---|---|---|---|
| Systolic Pressure | 0~100 unit | Paper Speed | 1, 2, 3cm/min (±3%) |
| Operation Mode | Manual/Auto | Recorder | High resolution thermal printer |
| Fuse Specification | T1.6A 250V Ø5×20 | Battery | Built-in rechargeable Li-ion battery 11.1V(2200mAh) |
| Recording Paper | 112*100mm Z Fold Thermal Paper | Machine Size | 307mm×255mm×91mm |
