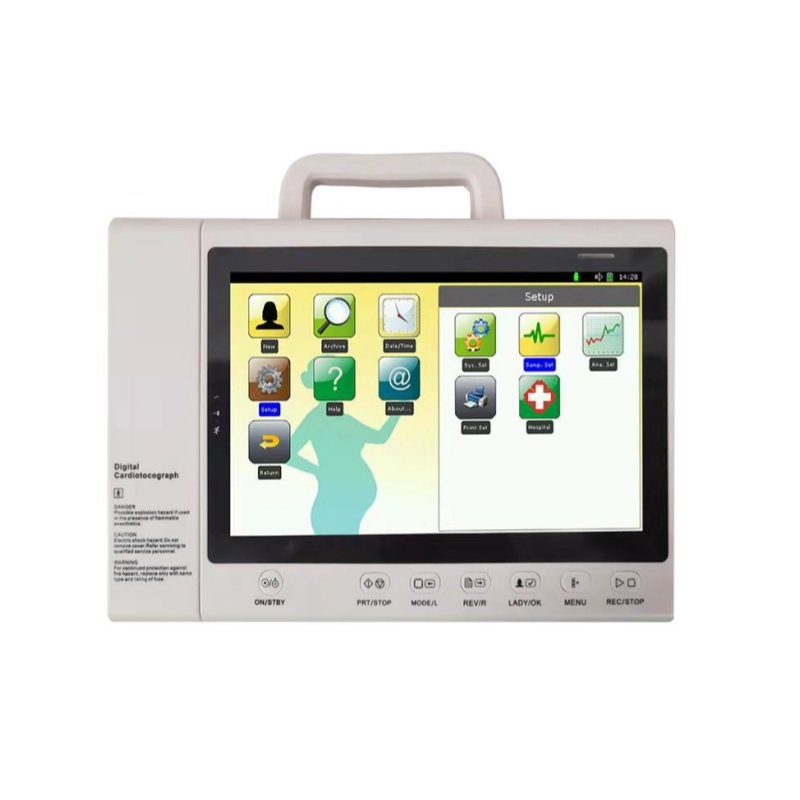

Fetal Heart Monitoring PM-9000B
Advanced DSP Technology: Features a 7″ color LED display, high-sensitivity 1MHz multi-chip digital pulse probe, and low ultrasound dose for accurate, safe monitoring.
Comprehensive Diagnosis: Offers holographic diagnosis, Fischer score, 10-minute automatic baseline analysis, real-time curve display, and multiple alarm functions for efficient clinical use.
Flexible Printing & Complete Configuration: Supports 6 printing modes with 112mm wide-format printing compatible with US and international standards; includes main host, ultrasonic/contraction/fetal movement probes, bandages, adapter, paper, and manual.
Description
Technical Specifications
PM-9000B FETAL MONITOR
FEATURES
- Using DSP Tech, more advanced & accurate
- Color 7" LED display
- High sensitivity, Low ultrasound dose, 1MZ Multi-chip digital pulse probe.
- Holographic diagnosis function, Fischer score, 10 minutes automatic baseline analysis, Real-time display curve type, to facilitate clinical application
- Multiple alarm functions
- Using encoder disk operations, a key with multi-purpose, easy to operate.
- Printing mode: 6 kinds; 112mm wide-format printing, compatible with US & international standards
TECH-PARA
| 1. Ultrasound Probe | Polycrystalline, wide wave beam, pulse working mode |
|---|---|
| 2. Ultrasound Intensity | <5mW/cm2 |
| 3. Working frequency | 1.0—3.0MHz (option) Measurement Range: 30-240bpm |
| 4. Alarm range | Upper: 160-200bpm(option), Lower: 50-120bpm(option) |
| 5. Power | AC220V±20%.50Hz DC9V |
| 6. Uterine pressure | Measurement rang: 0-100 (Pressure units) |
| 7. Maximum audio output power | 1.5W |
| 8. Signal Process | Special digital processing unit |
| 9. Display | FHR curve, TOCO curve, fetal movement mark, Doctors event markers, events, volume, etc. freeze & playback data |
| 10. Relative Humidity | 10% - 80% |
| 11. Working Temperature | 10~40°C. Relative TEMP: 10~80% |
| 12. Power dissipation | <20W |
| 13. Probe output | According to international practice LEC 1157 in 1992, sound pressure negative peak can not exceed more than 1 MPa; beam sound intensity does not exceed 20mW/cm2; Spatial peak temporal average sound intensity does not exceed 100mW/cm2. This type of sound intensity does not exceed 5mW/cm2 |
STANDARD CONFIGURATION
PM-9000B main host ×1 set
Ultrasonic probe ×1pcs
Uterine Contractions probe ×1pcs
Fetal movement probe ×1pcs
Probe bandages ×1 set
Power Adapter ×1pcs
Power plug line ×1 set
Printing paper ×2 rolls
English operation manual ×1 set
