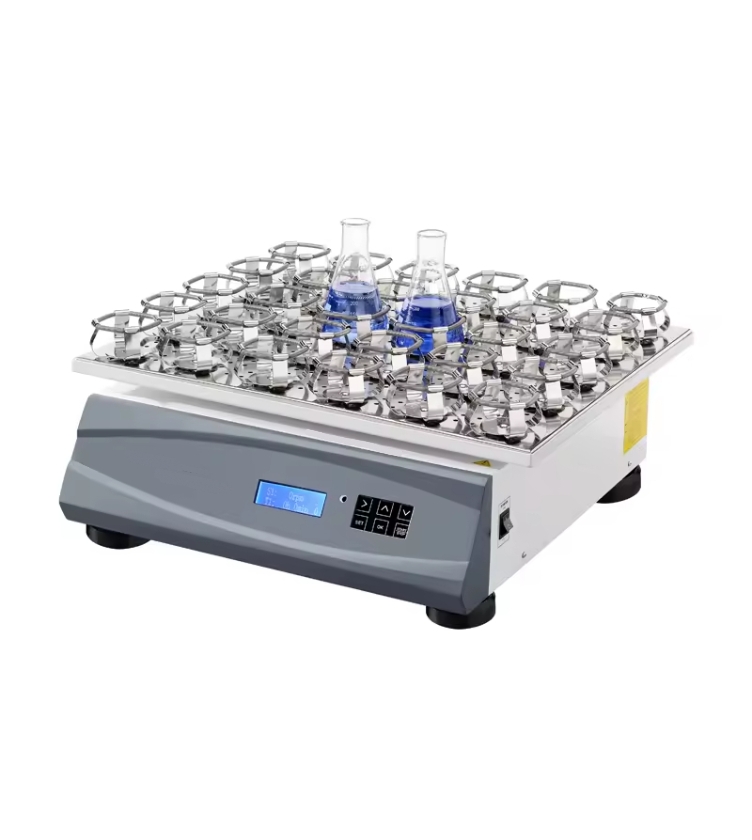

Desktop Mini Lab Shaker LBA LH-304

  • This desktop shaker works in greenhouses or incubators, widely used in electrophoresis gel fixation, staining/decolorization, molecular hybridization, cell culture, etc.

  • Features domestic original single-axis drive, silent and durable. Key parts use high-quality materials, with slow start, motor overheating protection, and ±1rpm frequency accuracy.

  • Model LH-304: LED display, orbital oscillation, 30-300rpm, 20mm swing, standard 9*250ml, 16kg net weight, 60W power.

Description

Technical Specifications

OVERVIEW

This is a desktop shaker that can be used directly in the greenhouse or in the incubator. It is widely used in the fixation of various electrophoresis gels, the shaking and shaking during Coomassie blue staining and decolorization, and the fixation and staining of silver nitrate staining. After the development, fixation and electrophoresis transfer of the X-ray film in the autoradiography experiment, the cellulose membrane is further processed, such as molecular hybridization, antigen-antibody reaction and staining, and cell culture.

FEATURES

1. The domestic original single-axis drive mechanism, silent operation, durable.

2. The most advanced finishing technology in China ensures the stability and reliability of mechanical operation.

3. The key parts of the movement are made of expensive chromium alloy materials, high-quality cast iron, and original imported bearings.

4. Automatically memorize the last set speed, and slowly accelerate to the last running speed after starting up.

5.  The unique slow start circuit prevents sudden start and splashing, effectively ensuring the safety of reagents.

6.  Unique automatic power-off protection device for motor overheating and temperature out of control.

7.  Unique high-precision frequency control system, the frequency accuracy can reach ±1rpm.

8.  The most advanced high torque motor, maintenance-free, to ensure continuous work.

9.  The electrostatic color spray box is beautiful and rust-proof, and it has a very aesthetic design concept.

Parameter

Specification

Specification

Parameter

Model

LPH-310F

Control method

P.I.D microcomputer environment scanning micro processing chip control

Display method

LCD

Cycle way

Natural convection

Oscillation mode

Reciprocating

Drive method

Single-axis balanced drive

Ambient temperature

15-35°C

Programming control

Eight-segment curve programming

Safety protection

Watchdog timer, independent supersonic sound/light alarm, independent leakage and overcurrent protection

Rotation frequency

30-300rpm

Rotation accuracy

±1

Swing amplitude

25mm

Timer

0~999.59

Standard configuration

1000ml*12/500ml*15/250*24

Number of shake plates

a piece

Shake plate size

550*400

Net weight

40kg

Dimensions

550*480*280mm
