Cold Light Source High Quality Inspection Camera Inspection Camera Nearby 7.8inch Screen XNQ LN-DM27K

Product Overview

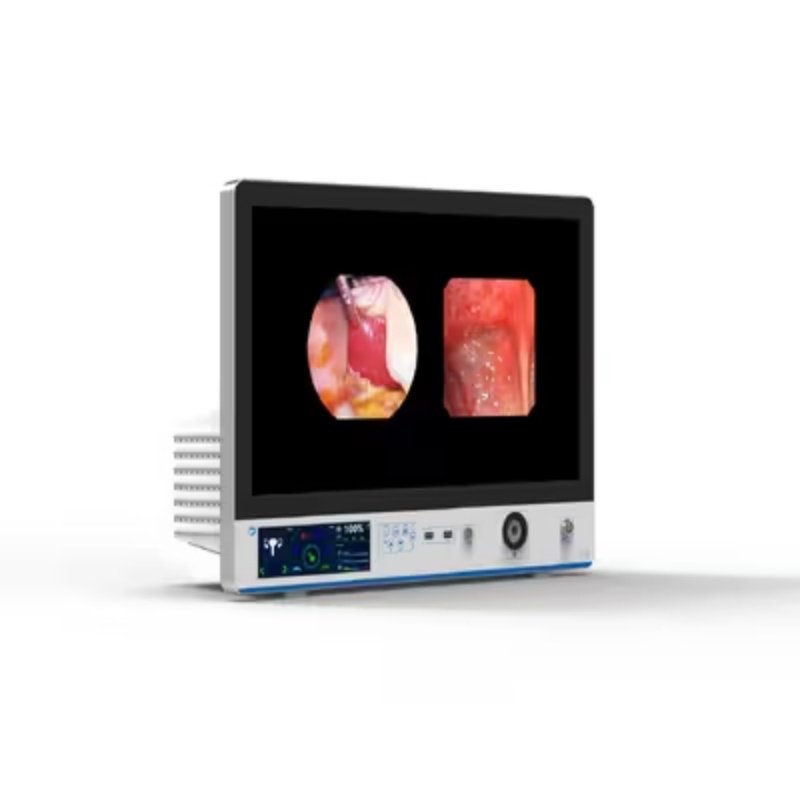

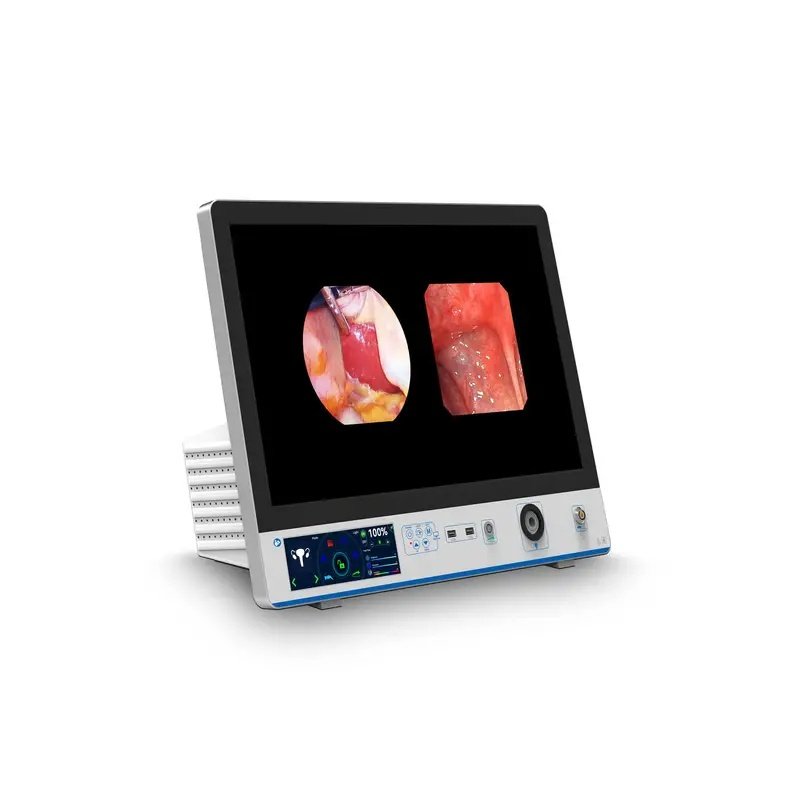

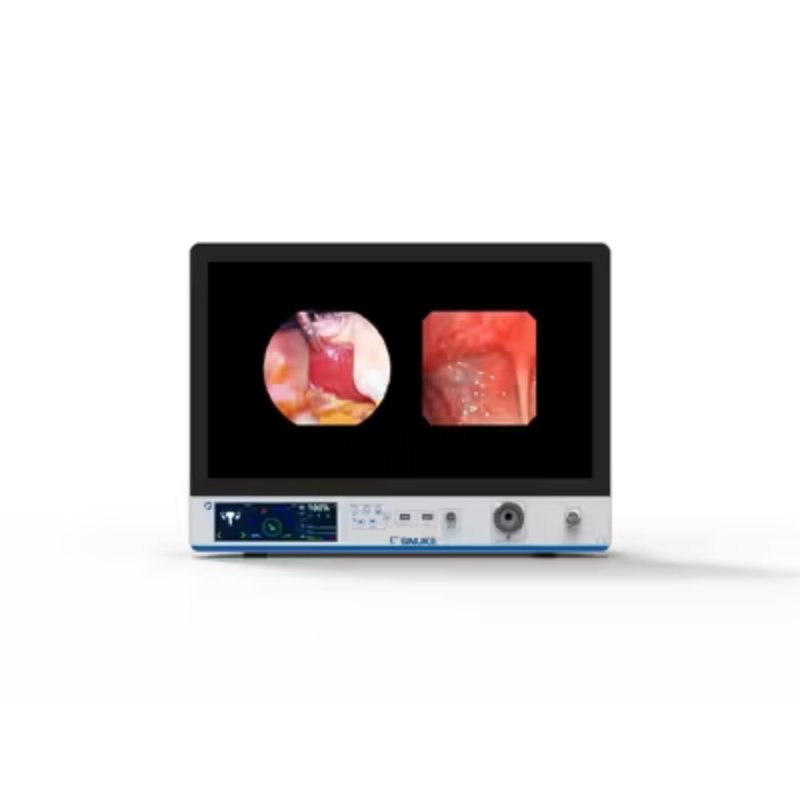

The LN-DM27K All-In-One Integrated Camera System by SNUKE is a comprehensive medical imaging solution that combines four essential functions in one device. This innovative system delivers true 4K Ultra HD resolution (3840×2160P) at 60 frames per second, powered by a sophisticated SONY CMOS sensor that provides triple-CMOS performance from a single chip. The integrated LED medical cold light source, combined with smart vascular enhancement and advanced noise reduction, makes this system ideal for various endoscopic procedures. With compatibility for both flexible and rigid endoscopes, the LN-DM27K offers medical facilities a complete, space-saving solution for high-quality endoscopic imaging.

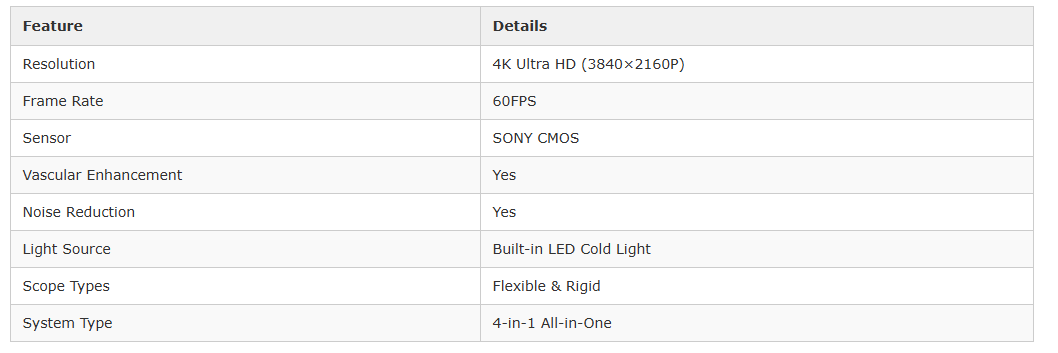

Product Technical Highlights1. Camera System Specifications:

• Imaging Core: SONY CMOS sensor delivering 4K resolution at 3840×2160P

• Video Performance: 60FPS recording and playback

• Advanced Features: Vascular enhancement (VASL ENHAN) and 4-level noise reduction (DNR)

• Output Options: HDMI, DVI, SDI, CVBS, VGA interfaces

2. Light Source System:

• Illumination Type: Integrated LED cold light source

• Light Output: 800-2600 lumens adjustable

• Color Temperature: 3000-7000K range

• Brightness Control: 0-100 level digital adjustment

3. Scope Compatibility:

• Flexible Endoscopes: Dedicated mode and interface support

• Rigid Endoscopes: Optimized coupling and illumination

• Universal Ports: Designed for both scope types

4. All-in-One System Features:

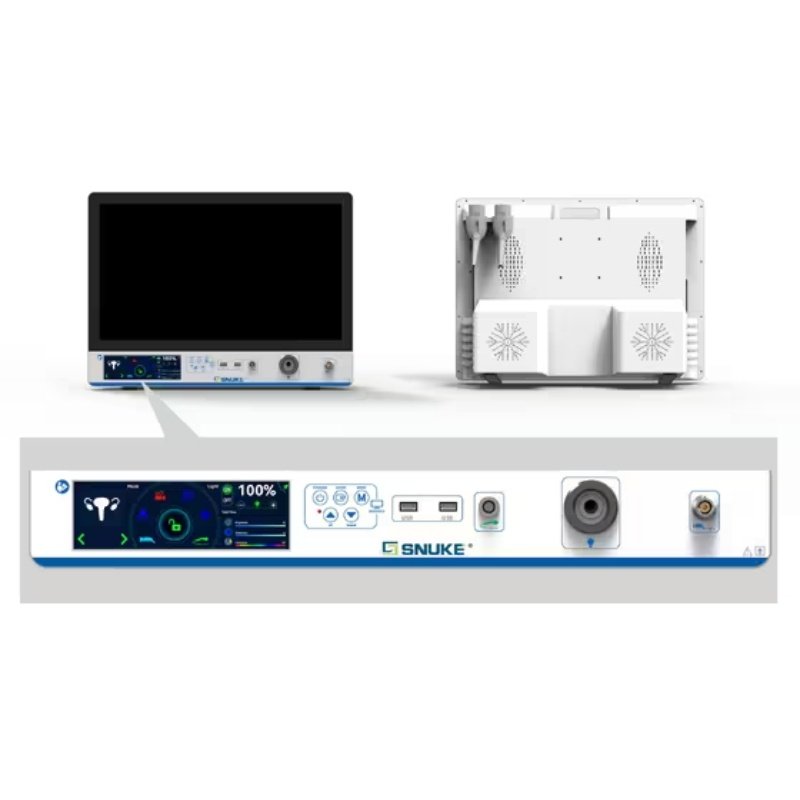

• Integrated Design: Camera, light source, processor, and display in one unit

• Touch Interface: 7.8-inch capacitive touch screen

• Storage System: USB 2.0 support with local playback

• Power Efficiency: 100W total system consumption

Product Applications

The LN-DM27K is designed for multiple clinical applications:

• Laparoscopic Surgery: 4K abdominal procedures

• Urological Procedures: Cystoscopy and ureteroscopy

• ENT Surgery: Otolaryngology examinations

• Orthopedic Procedures: Arthroscopy and diskoscopy

• Gastroenterology: Flexible endoscopic diagnostics

• Multi-specialty Use: Unified system for various medical departments
