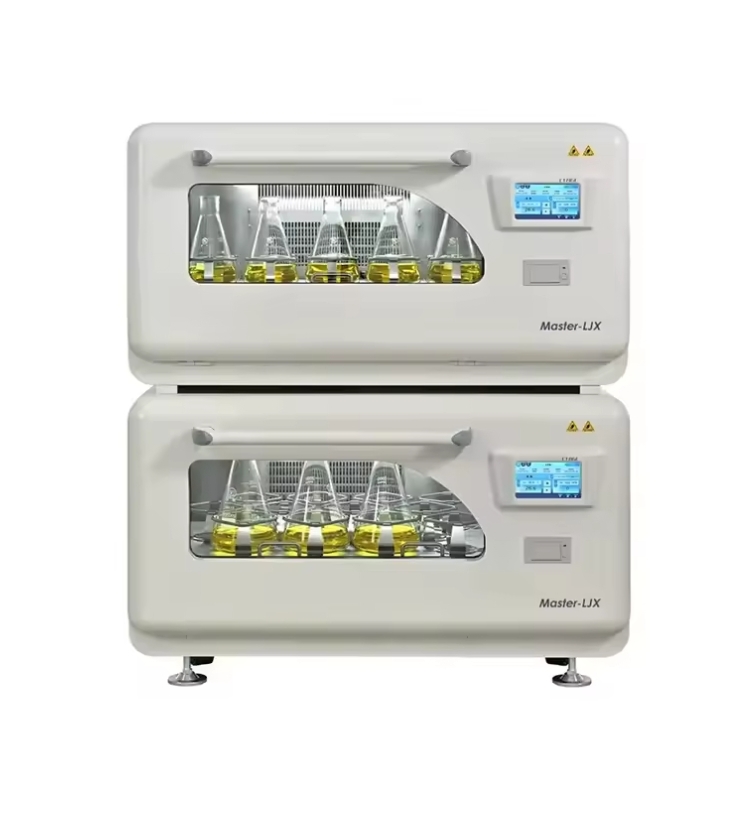

CO2 Incubator Shaker LBA Master-LJX
Description
FEATURES
1. Adopting a seven inch true color touch screen, switchable between Chinese and English, making operation more convenient.
2. Single axis five dimensional dynamic balance drive structure, characterized by low energy consumption, long lifespan, and low noise.
3. Imported double row bearings have the characteristics of high load, stable operation, and long service life.
4. Servo motor drive, compared to AC or DC motors, has higher and more accurate speed control accuracy.
5. Imported IR carbon dioxide sensor from Germany, with high measurement accuracy and long lifespan.
6. Standard fluorescent and ultraviolet lamps.
7. The inner cavity material is made of 304 mirror all stainless steel material.
8. The bottom of the inner cavity can be directly rinsed with water, and there is a drainage pipeline for easy cleaning.
9. It has functions such as three-level permission management and operation log query and export, and meets GMP requirements.
10. The host can store 1 million pieces of data and over 5 years of data, with a standard USB interface for data storage and export.
11. Equipped with reservation operation function, timing function, call memory function, screen lock function, to avoid human touch operation errors.
12. The mechanical core components are made of ductile iron material formed by molds, which has good stability and long service life.
13. Can be used in three layers, with expandable active humidification, light cultivation, high-speed oscillation, shading cultivation, adhesive shaking plate, remote communication monitoring, gas introduction, 3Q verification, and embedded micro printer functions.
SPECIFICATIONS
| Model | Master-LJX 2021R | Master-LJX 2023R |
| No load speed | 0-300 rpm | 0-300 rpm |
| Shake plate amplitude | 25mm (50mm or 0-50mm amplitude adjustable) | 25mm (50mm or 0-50mm amplitude adjustable) |
| Oscillation mode | Rotary or reciprocating | Rotary or reciprocating |
| Shake board size | 780*500mm | 940*530mm |
| Distance from the shaking plate to the top | 353mm | 379mm |
| Volume size | 208L | 282L |
| External dimensions | 1200*797*640mm | 1410*830*660mm |
| Maximum Stackable layers | 3 layers | 3 layers |
| Temperature range | 4-60℃ (RT-18C.Minimum 4 ℃) | 4-60℃ (RT-18℃.Minimum 4 ℃) |
| Temp Accuracy | ±0.1℃ | ±0.1℃ |
| Temperature uniformity | ≤±0.5℃ (@At 37 ℃) | ≤±0.5℃ (@At 37 ℃) |
| Convection mode | Forced convection | Forced convection |
| CO2 sensor | Imported IR Sensor | Imported IR Sensor |
| CO2 control range | 0-20% | 0-20% |
| CO2 control accuracy | ±0.1% | ±0.1% |
| CO2 homogeneity | ±0.5% (@At 5%) | ±0.5% (@At 5%) |
| Timer | 0-9999hour and 0-9999mins | 0-9999hour and 0-9999mins |
| UV Lamp | YES | YES |
| Supply voltage | 220V+10%，50/60Hz | 220V±10%，50/60Hz |
| Weight (approximately) | 322KG | 370KG |
| Maximum loading capacity | 2000ml*12 or 1000ml*15 or 500ml*28 or 250ml *40 | 5000ml*7 or 2000ml*15 or 1000ml *28 or 500ml *40 or 500ml *40 |
