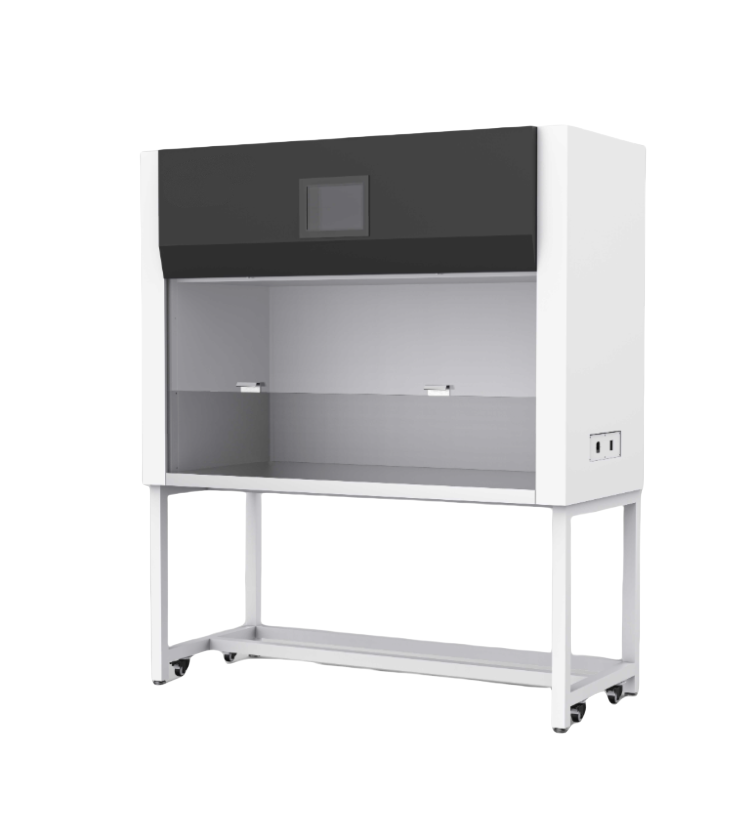

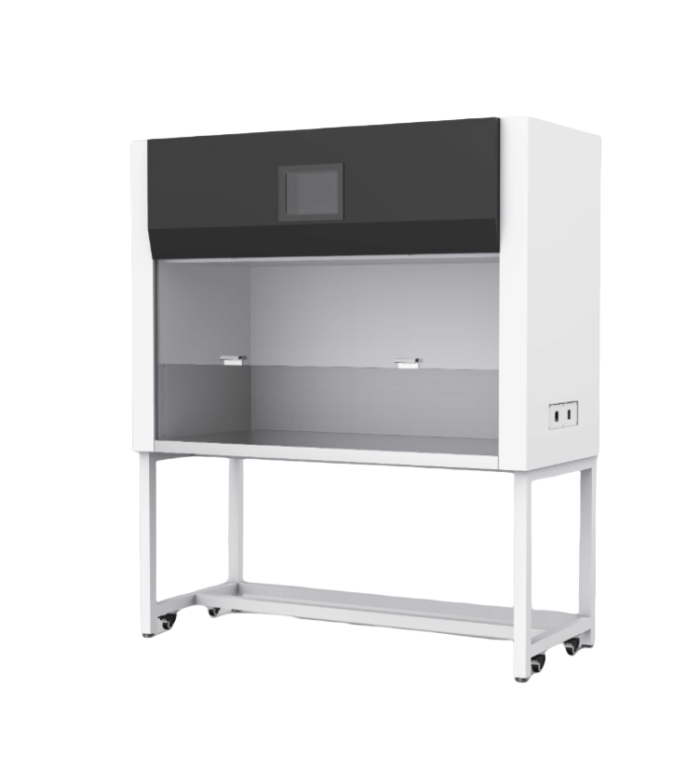

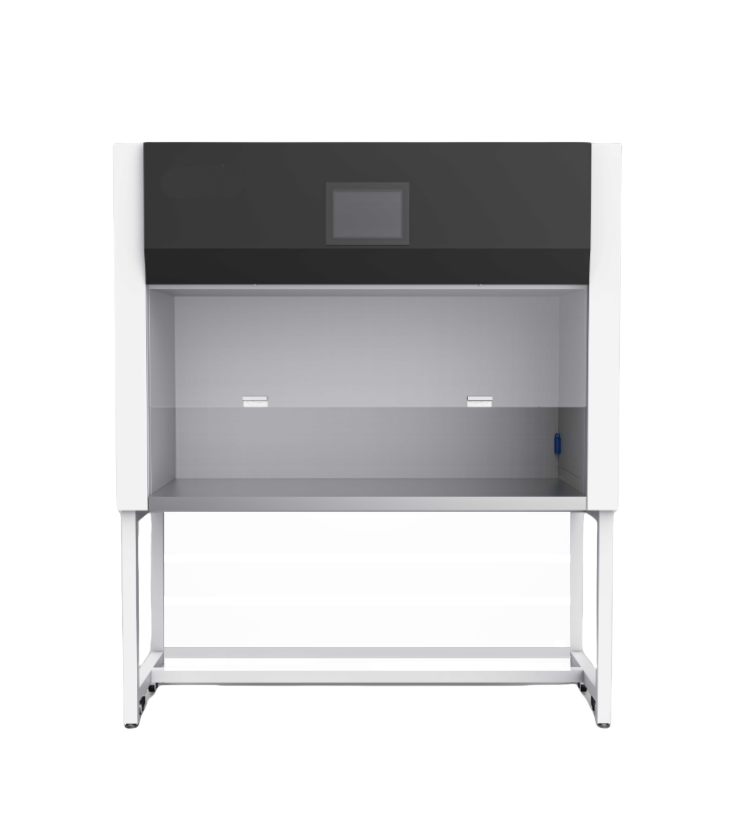

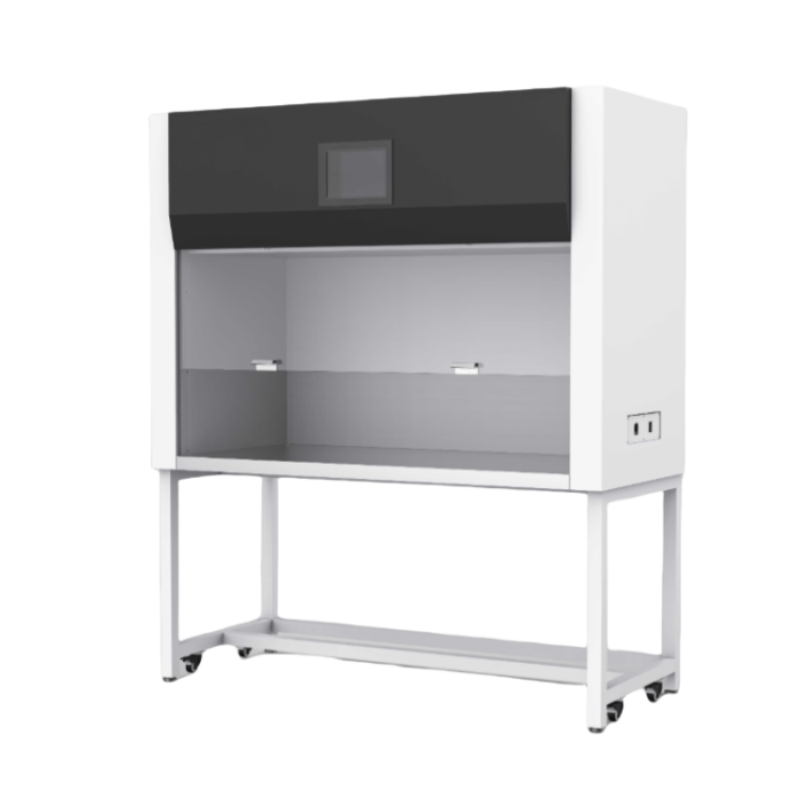

Single-sided Vertical Flow Clean Workbench DE

Equipped with a branded low-failure fan and dual-stage filtration (pre-filter + HEPA 99.995%@0.3μm). Pre-filter extends HEPA lifespan by 30%, ensuring ISO 5 (Class 100) cleanliness for sensitive lab operations.
7-inch touchscreen monitors real-time airflow (0.30-0.45m/s), UV/fan runtimes, and triggers alarms for height/speed deviations. Pre-set timers enable sterilization cycles, enhancing workflow efficiency.
Full-steel 1.2mm cabinet with electrostatic coating resists corrosion. 304 stainless steel worktop (seamless, no dead corners) ensures easy decontamination.

Single-sided Vertical Flow Clean Bench

Model	CB-940AVM-H	CB-1270AVM-H	CB-1340AVM-H	CB-1600AVM-H	CB-940BVM-H	CB-1270BVM-H	CB-1600BVM-H
Overall Size (mm)	1120×650×1750	1340×650×1750	1460×560×1850	1800×660×1750	1100×700×1880	1340×700×1880	1800×700×1880
Work Area (mm)	940×600×600	1270×600×600	1340×530×650	1600×600×600	940×560×600	1270×560×600	1600×560×600
Structure Type	Single-sided/Single	Single-sided/Small Double	Single-sided/Double	Single-sided/Triple	Double-sided/Single	Double-sided/Double	Double-sided/Triple
Airflow Mode	Vertical Laminar Flow	Vertical Laminar Flow	Vertical Laminar Flow	Vertical Laminar Flow	Vertical Laminar Flow	Vertical Laminar Flow	Vertical Laminar Flow
Product Protection (Settling Bacteria)	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min
Cleanliness Class	ISO 5 (Class 100)	ISO 5 (Class 100)	ISO 5 (Class 100)	ISO 5 (Class 100)	ISO 5 (Class 100)	ISO 5 (Class 100)	ISO 5 (Class 100)
Nominal Airflow Velocity	0.30~0.45m/s	0.30~0.45m/s	0.30~0.45m/s	0.30~0.45m/s	0.30~0.45m/s	0.30~0.45m/s	0.30~0.45m/s
Noise	≤65dB(A)	≤65dB(A)	≤65dB(A)	≤65dB(A)	≤65dB(A)	≤65dB(A)	≤65dB(A)
Front Window Safe Height	200~350mm	200~350mm	200~350mm	200~350mm	200~350mm	200~350mm	200~350mm
Vibration Half-Peak	≤5μm (Table Center)	≤5μm (Table Center)	≤5μm (Table Center)	≤5μm (Table Center)	≤5μm (Table Center)	≤5μm (Table Center)	≤5μm (Table Center)

Description

Model	CB-940AVM-H	CB-1270AVM-H	CB-1340AVM-H	CB-1600AVM-H	CB-940BVM-H	CB-1270BVM-H	CB-1600BVM-H
Overall Size (mm)	1120×650×1750	1340×650×1750	1460×560×1850	1800×660×1750	1100×700×1880	1340×700×1880	1800×700×1880
Work Area (mm)	940×600×600	1270×600×600	1340×530×650	1600×600×600	940×560×600	1270×560×600	1600×560×600
Structure Type	Single-sided/Single	Single-sided/Small Double	Single-sided/Double	Single-sided/Triple	Double-sided/Single	Double-sided/Double	Double-sided/Triple
Airflow Mode	Vertical Laminar Flow	Vertical Laminar Flow	Vertical Laminar Flow	Vertical Laminar Flow	Vertical Laminar Flow	Vertical Laminar Flow	Vertical Laminar Flow
Product Protection (Settling Bacteria)	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min	Colony ≤0.5CFU/30min
Cleanliness Class	ISO 5 (Class 100)	ISO 5 (Class 100)	ISO 5 (Class 100)	ISO 5 (Class 100)	ISO 5 (Class 100)	ISO 5 (Class 100)	ISO 5 (Class 100)
Nominal Airflow Velocity	0.30~0.45m/s	0.30~0.45m/s	0.30~0.45m/s	0.30~0.45m/s	0.30~0.45m/s	0.30~0.45m/s	0.30~0.45m/s
Noise	≤65dB(A)	≤65dB(A)	≤65dB(A)	≤65dB(A)	≤65dB(A)	≤65dB(A)	≤65dB(A)
Front Window Safe Height	200~350mm	200~350mm	200~350mm	200~350mm	200~350mm	200~350mm	200~350mm
Vibration Half-Peak	≤5μm (Table Center)	≤5μm (Table Center)	≤5μm (Table Center)	≤5μm (Table Center)	≤5μm (Table Center)	≤5μm (Table Center)	≤5μm (Table Center)
