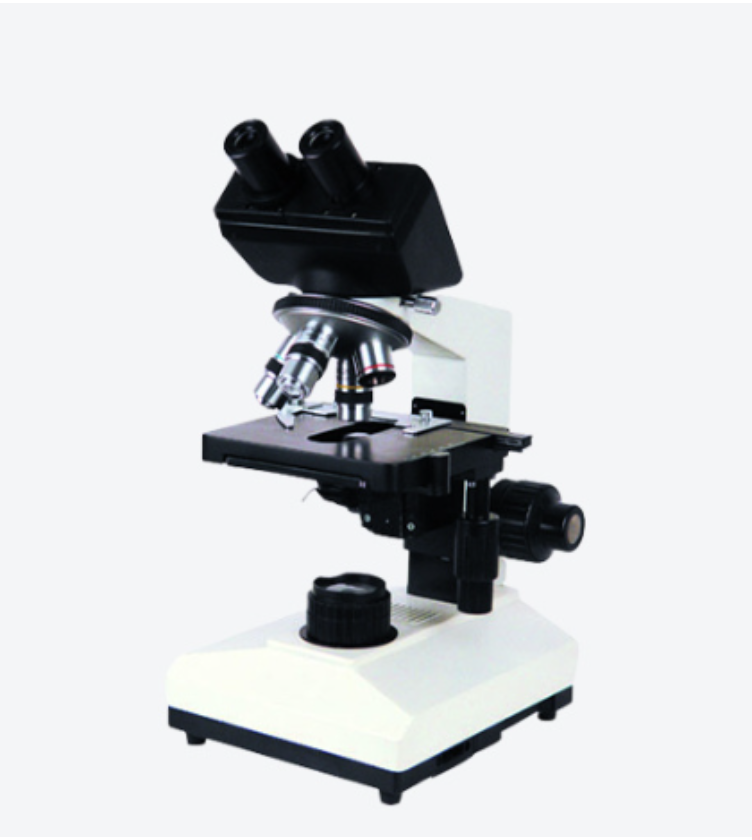

Biological Microscope QS XSB-102B
All XSB models (101B/102B/102C/301A) share a robust set of core features: achromatic objectives (4×, 10×, 40×s, 100×s oil), 10×/16× large-field eyepieces, and a 4-hole converter.
Equipped with an Abbey condenser (NA1.25, color filter), coaxial focusing (30mm range), and a 120×130mm dual mobile platform (70×30mm travel), they deliver reliable imaging with 6V/20W adjustable halogen illumination—ideal for routine lab and educational use.
All models prioritize usability with consistent platform size and focusing mechanics, ensuring intuitive operation. Optional upgrades include 20× eyepieces and LED illumination (with adjustable brightness), extending versatility.
Category | Item Description | XSB-101B | XSB-102B | XSB-102C | XSB-301A |
|---|---|---|---|---|---|
viewing head | Monocular head, 45 degree tilt, 360 degree swivel | * | |||
viewing head | Panning binocular head, 45 degree tilt, 360 degree swivel | ● | |||
viewing head | Trinocular head, 45 degree tilt, 360 degree swivel | ● | |||
viewing head | Hinged binocular head, 45 degree tilt, 360 degree swivel | ● | |||
goggles | Large Field Eyepiece WF10X WF16 | ● | ● | ● | ● |
goggles | Large Field Eyepiece WF20X | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name |
objective (optics) | achromatic objective 4X 10X 40Xs 100Xs(oil) | ● | ● | ● | ● |
resolver | Four-hole converter | ● | ● | ● | ● |
spotting scope | Abbey Spotting Scope NA1.25 with variable light bar, colour filter | ● | ● | ● | ● |
litter-bearing platform | focusing system | Coaxial coarse and fine focusing mechanism, focusing range 30mm | ● | ● | ● |
litter-bearing platform | Dual mobile platform Dimensions 120x130mm, range of movement 70mmx30mm | ● | ● | ● | ● |
illumination | 6V/20W halogen lamp with adjustable brightness | ● | ● | ● | ● |
illumination | LED illumination with continuously adjustable brightness | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name |
Product unit size | 22×20×53.8cm
| ● | |||
Product unit size | 22×20×53.9cm | ● | |||
Product unit size | 22×20×54.2cm | ● | |||
Product unit size | 22×20×53.85cm | ● |
