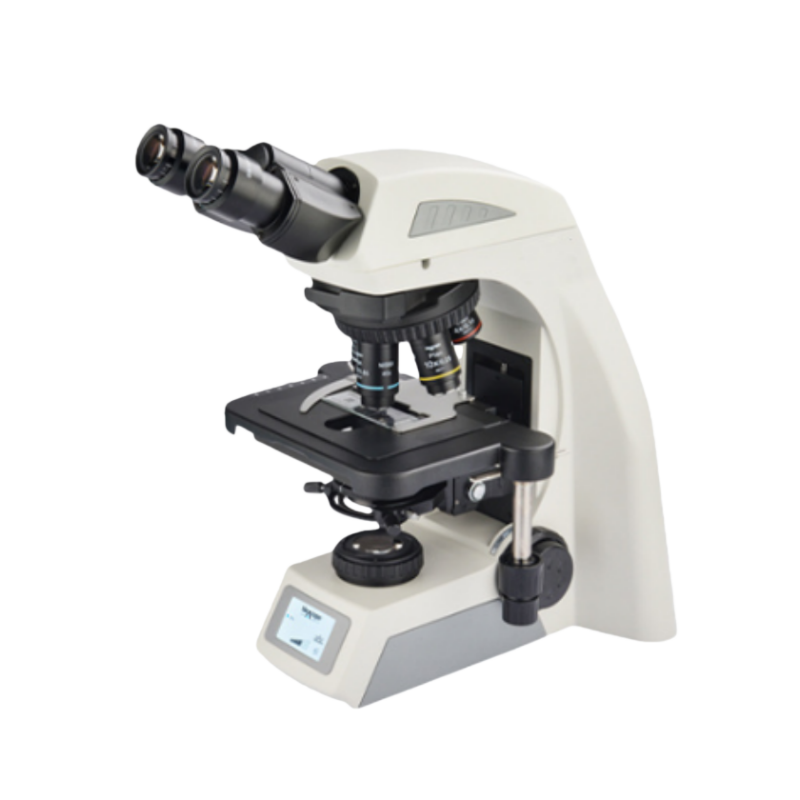

Biological Microscope QS AX-600
-
The AX610 features an Infinity Optical System, paired with NIS45 infinity flat-field objectives and 10× (22mm field) eyepieces. Its inward-facing 5-hole non-coded converter, inserted Abbe condenser (NA1.25), and coaxial focusing (0.001mm grid, 30mm lift range) ensure sharp imaging.
-
The 230×150mm synchronous belt platform (80×54mm travel) and 1W LED illumination cater to routine lab needs, with optional phase contrast objectives and polarizing accessories for expanded use.
Description
Specification
AX610 |
AX620 |
|||
optical system |
Infinity Optical System |
● |
● |
|
viewing head |
Infinity hinged binoculars, 30 degree tilt, pupil distance 48mm-75mm |
● |
● |
|
Infinity hinged trinocular barrel, 30 degree inclination, pupil spacing 48mm-75mm, beam splitter ratio 5.5 |
character used in Taiwan as a substitute for a real name |
character used in Taiwan as a substitute for a real name |
||
Wireless digital dock with built-in 5 million |
character used in Taiwan as a substitute for a real name |
character used in Taiwan as a substitute for a real name |
||
Tiltable binocular observation head |
– |
character used in Taiwan as a substitute for a real name |
||
goggles |
10x(22) |
● |
● |
|
objective (optics) |
Infinity Flat Field Objective NIS45 |
● |
– |
|
Infinity flat field objective NIS60 |
– |
● |
||
Infinity phase contrast objective NIS45 |
character used in Taiwan as a substitute for a real name |
– |
||
Infinity phase contrast objective NIS60 |
– |
character used in Taiwan as a substitute for a real name |
||
resolver |
Inward-facing five-hole converter (non-coded) |
● |
– |
|
Inward-facing five-hole converter (coded) |
– |
● |
||
Synchronous belt platform |
Synchronous belt platform size 230mm*150mm, moving range 80mm*54mm |
● |
● |
|
spotting scope |
Inserted Abbe Spotting Scope NA1.25 (with empty insert) |
● |
● |
|
Open field – phase lined inserts (4*-100* universal) |
character used in Taiwan as a substitute for a real name |
character used in Taiwan as a substitute for a real name |
||
Brightfield-darkfield inserts |
character used in Taiwan as a substitute for a real name |
character used in Taiwan as a substitute for a real name |
||
focusing system |
Coaxial coarse and micro movement, coarse 37.7mm/turn Micro movement 0.1mm/turn, 0.
|
● |
● |
|
illumination |
1W LED |
● |
– |
|
3W SLED (LCD display of multiplier, timed sleep, brightness indication and lock, etc.) |
– |
● |
||
Fluorescent Accessories |
3W LED, 2-band (B,G,U,V combinable) compound eye illumination |
character used in Taiwan as a substitute for a real name |
character used in Taiwan as a substitute for a real name |
|
Other accessories |
1x camera accessories |
character used in Taiwan as a substitute for a real name |
character used in Taiwan as a substitute for a real name |
|
0.5X Video Accessories |
character used in Taiwan as a substitute for a real name |
character used in Taiwan as a substitute for a real name |
||
Simple Polarising Accessories |
character used in Taiwan as a substitute for a real name |
character used in Taiwan as a substitute for a real name |
||
APP software |
character used in Taiwan as a substitute for a real name |
character used in Taiwan as a substitute for a real name |
||
colour filter |
greener |
● |
● |
|
