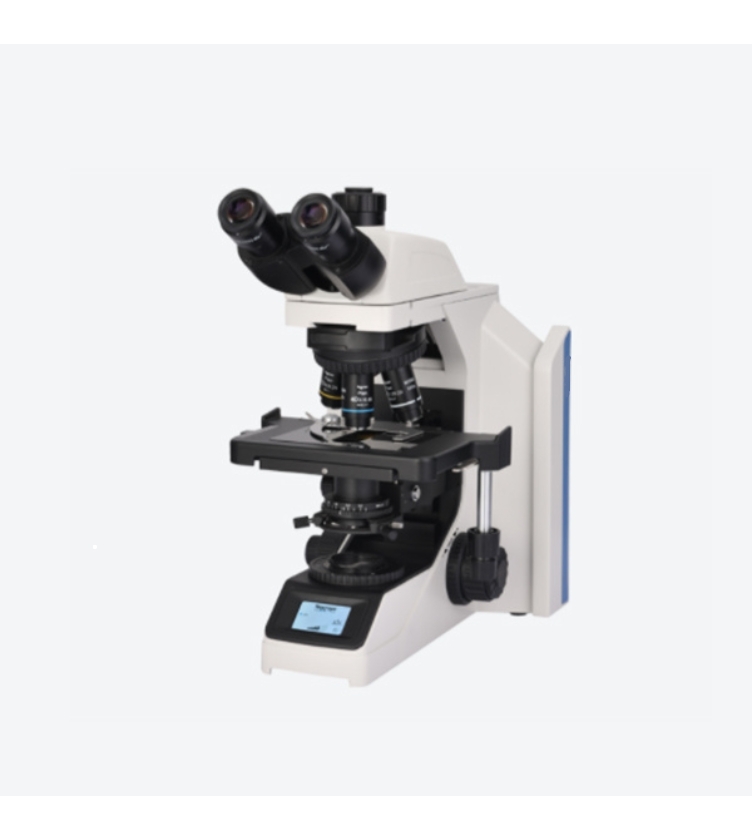

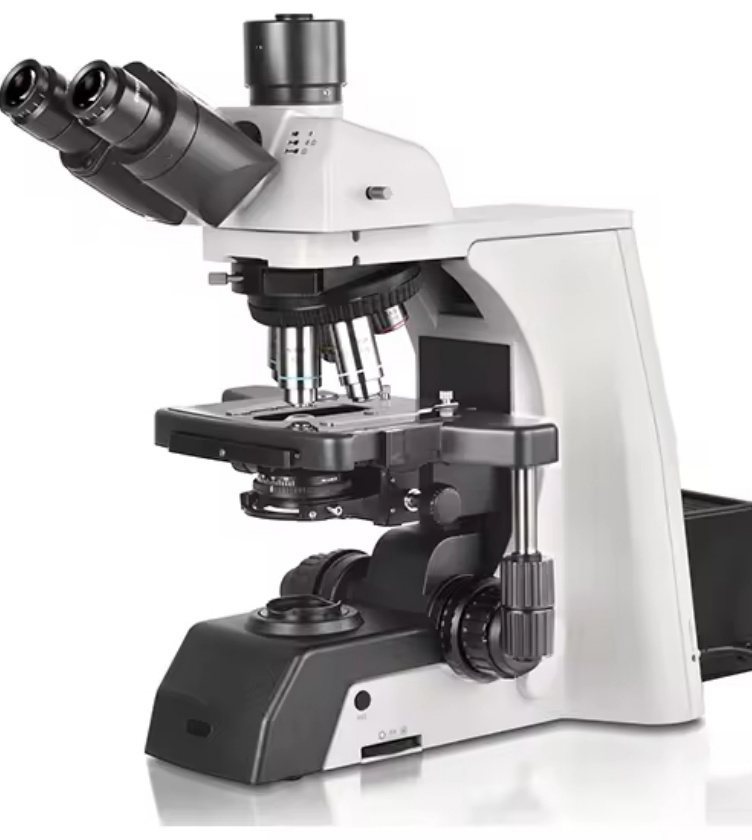

Biological Microscope QS AO-1000
-
The AO1000 microscope features the NIS Infinite Apochromatic Aberration and Contrast Correction System, delivering high-contrast, clear images with strong chromatic aberration correction—ideal for life science research.
-
It supports diverse objectives (flat-field achromatic, fluorite, etc.) and observation methods (bright field, fluorescence, DIC, dark field), paired with 10×–20× eyepieces (22–25mm field of view) for precise, realistic imaging.
-
Designed for comfort, it includes a low-position coaxial focusing system (0.001mm fine adjustment) and a 30° tilted, hinged trinocular tube (pupil range 47–78mm) with adjustable beam splitter ratios (100/0, 20/80).
Description
Product Features
Designed for life science exploration, the AO1000 is capable of meeting a wide range of microscopic imaging needs in the laboratory. The mechanical structure is stable and compact, and the ergonomic design is well laid out and comfortable to use, enabling microscope operation in a natural position.
Adopting the NIS infinity optical system, which has been researched and improved over the years, it features long working distance, strong chromatic aberration correction and other excellent optical qualities, and reliable imaging, providing high contrast, clear and bright images to help you with your cutting-edge life science research.
AO1000 microscope adopts modular design, which can achieve bright field, dark field, differential interference, fluorescence, polarisation and other observation methods, and it is an ideal tool for experimental teaching, scientific research and medical examination.
Specification
Microscope Rack |
optical system |
NIS Infinite Apochromatic Aberration and Contrast Correction System, 45mm objective lens focusing distance with high brightness and high contrast. |
turntable for objective lenses |
-Manual six-well objective turntable, inward tilting inner positioning six-well converter, comfortable rotation, accurate and reliable positioning, with analysis slots for DIC observation and polarised observation, etc.
|
|
Institutions in Focus |
Low hand coaxial focusing mechanism (with limit and loosening adjusting ring),
|
|
transmitted light |
-12V100W Halogen – 3W LED (optional light intensity management) |
|
display screen |
Optional microscope status display. |
|
observation lens barrel |
binoculars |
Pitch angle: 30 degrees, material range: 47-78mm. |
Hinged trinocular barrel |
Eyepiece / port: 100/0, 20/80, 0/100, pitch angle: 30 degrees, pupil adjustment range: 47-78mm, visual / digital three-position beam splitter ratio: 100/0, 20/80, 0/100, to meet the needs of different uses |
|

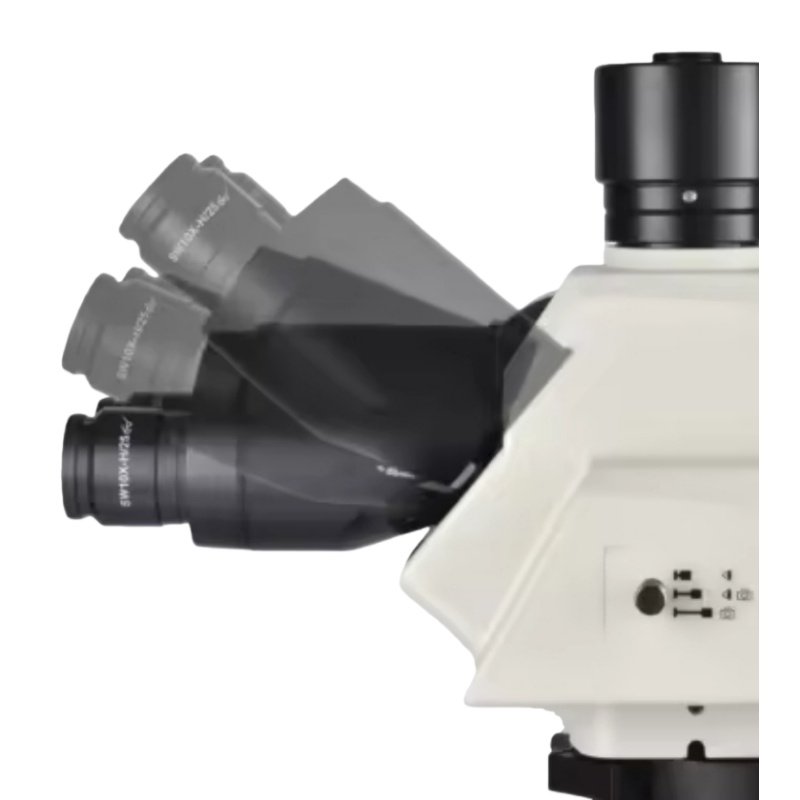

Ergonomic hinged trinocular viewing tube |
Eyepiece/Port: 100/0, 20/80, 0/100 Pitch: 0-30 degrees Material Distance Adjustment Range: 47-78mm |
|
goggles |
-SW10X(25)-SW10X(22)-EW12.5X(17.5)-WF15X(16)-WF20X(12)
|
|
litter-bearing platform |
Steel wire loading platforms
|
Mobile handle can be lifted 18mm, adjustable, bump guiding mechanism to facilitate single-handed slicing, Gorilla (Corning) corrosion-resistant table top, dovetail structure; size: 302X152mm, not counting the two wings of 190X152 (mm), right-handed pull or left-handed position of the coaxial operation of the low-position handle, the mobile handle can be raised and lowered 18mm, adjustable, you can put your hand on the comfortable position of the easy movement Carrier table; double slicing device. |
Steel wire loading platform
|
||
Motorised platforms |
High precision motorised XY stage (travel: X-axis, 125mm; Y-axis, 75mm), repeatability ±1.5µm, maximum speed 20mm/s. |
|
spotting scope |
open-field spotting glass |
-Manual swing-out spotting scope |
turntable spotting scope |
-Phase contrast turntable spotting scopes -DIC turntable spotting scopes, universal universal dry DIC spotting scopes |
|
darkfield spotting scope |
-Dry Darkfield Spotting Scope -Oil Darkfield Spotting Scope |
|
FL-VI
|
Fluorescent Drop Illuminator |
With field of view diaphragm and aperture diaphragm, density film available, Köhler illumination system with UV goggle screen |
Fluorescent mirror set turntable |
Six-port fluorescent mirror set carousel |
|
fluorescent light source |
-osram mercury HBO 100W/2 – metal halide light source 75W – four colour LED fluorescent 5W |
|
FL-900C
|
Fluorescent Drop Illuminator |
Compound eye illumination with UV eye protection screen |
Fluorescent mirror set turntable |
Six-port fluoroscope turntable for up to four fluoroscopes. |
|
fluorescent light source |
3W LED fluorescent illumination with up to 4 coloured fluorescent light sources, adjustable brightness |
|
Observation methods can be realised |
Bright field, falling fluorescence, dark field, phase contrast, simple polarisation, DIC
|
|
