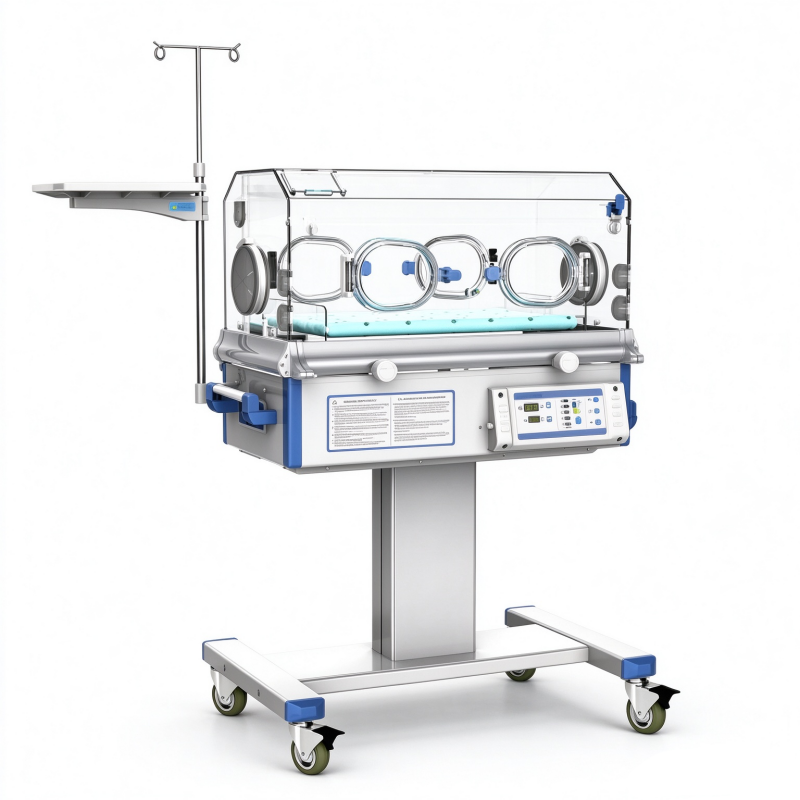

Baby Incubator BB100
A reliable infant incubator designed for stable thermal care. Features precise temperature control (25℃~38℃, ±0.5℃ fluctuation), uniform mattress temperature (≤0.8℃), and low noise operation (<50dB).
Supports optional upside and downside phototherapy units. Durable aluminum alloy construction with removable DC fan and two-level humidity adjustment. Ideal for neonatal intensive care and maternity wards.
Description
Technical Specifications
- Microprocessor based servo controlled temperature system
- Control modes: Air mode
- Humidity is adjustable in two levels
- Set temperature, air temperature, heating power are displayed separately by LED
- Self-testing function, various failure alarms by audible and visual
- Alarm function: Power failure,Over temperature,Temperature deviation,Fan failure,Temperature sensor failure
37° temperature set function
- Triple protection for over temperature with separate cut off device, more safety system
- The inclination of infant bed is adjustable
- Single wall hood, 4 operating windows and 2 iris ports,3 infusion seals
- locking device for front door
- RS232 connector, 1 tray
Baby Incubator BB-100 (Standard)
Reliable thermal care for newborns
Technical Data
- Power supply: AC110V/220V 60/50Hz
- Power input: 650VA
- Operating condition:
- Environment temperature: 20℃ ~ 30℃
- Environment relative humidity: 30% ~ 75%
- Environment air velocity of flow: < 0.3m/s
- Air temperature control range: 25℃ ~ 37℃, 37.1℃ ~ 38℃
- Temperature fluctuation: ±0.5℃
- Uniformity of mattress temperature: ≤0.8℃
- Warm-up time (from 25℃): < 30min
- Internal noise level: < 50dB(A)
- Infant bed tilt angle: ±10°
- Mattress size: 65cm (L) * 37cm (W)
- Trough capacity: 1200mL
- Air filter: 0.5μm
Optional Functions
- BL-30D: Upside phototherapy unit
- BL-100D: Downside phototherapy unit
Excellent Details
- Removable axial DC-Fan
- Aluminum alloy material
- Two level adjustable of humidity
Transport and Storage
- Package:
- Each unit is packed in one plywood case
- (control unit and base): 126*75*99.4cm
- N.W.: 80Kg G.W.: 100Kg
- Transport and storage:
- Environment temperature: -10℃ ~ +55℃
- Environment relative humidity: ≤95%
- Atmospheric Pressure: 500 ~ 1060hpa
Standard Configuration
- Main body (including the Transparent hood, Control system, Infant bed, Water trough, I.V. pole, Mattress, Castors, Tray, Bracket)
