ASOM-5-C Operating Microscope

Professional motorized surgical microscope for neurosurgery, ENT, brain and spine surgery.
3x‑16x continuous 6:1 zoom, coaxial assistant binocular tube, 100000lux coaxial illumination,
multi‑objective lens options, motorized focusing & X‑Y swing, 8‑function handle controller for hospital microsurgery.

Technical Specifications

Neurosurgery、ENT、Brain surgery、Spine

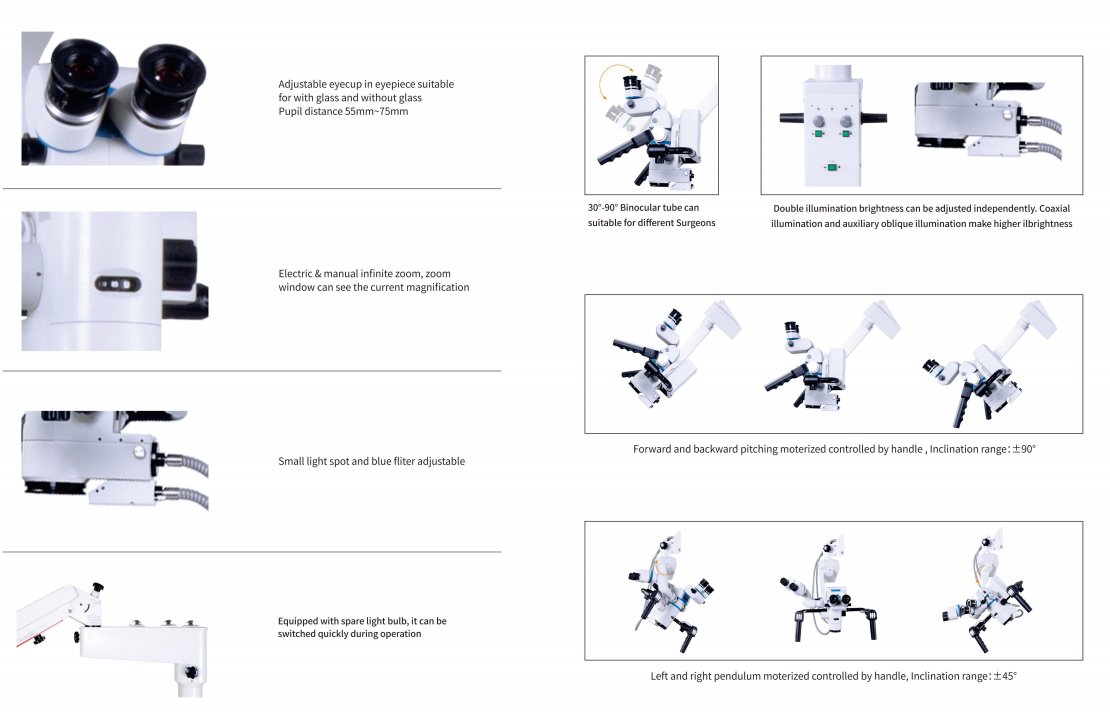

Eyepieces： magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 180mm.

Binocular tube：30°~90°variable angle binocular tube, add new pupil distance adjustment Magnification：6:1 zoom, motorized continuous, magnification 3x~16x; field of view Φ74~Φ12mm

Coaxial assistant’s binocular tube： Free‑rotatable assistant stereoscope, all direction circumvolve freely, magnification 3x~16x; field of view Φ74~Φ12mm Coaxial illumination： 0°assistant’s binocular can swing all direction circumvolve freely, illumination diameter of light spot Φ50mm, illumination intensity 100000lux

Objectives：f300mm (200mm,250mm,350mm,400mm etc )

Focusing：motorized, range +/-25mm, speed 33s/whole distance

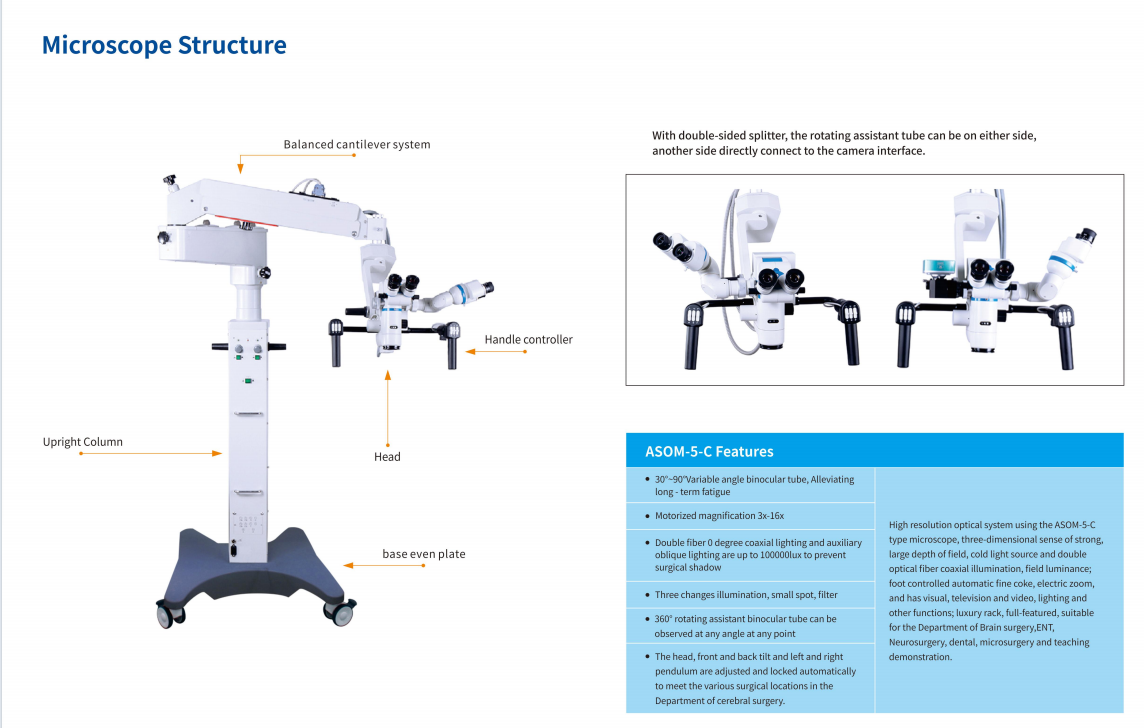

X‑Y swing：The head can swing in X direction +/-45 °motorized, and in Y direction +90°,and can stop in any angle Maximum length of arm 1200mm

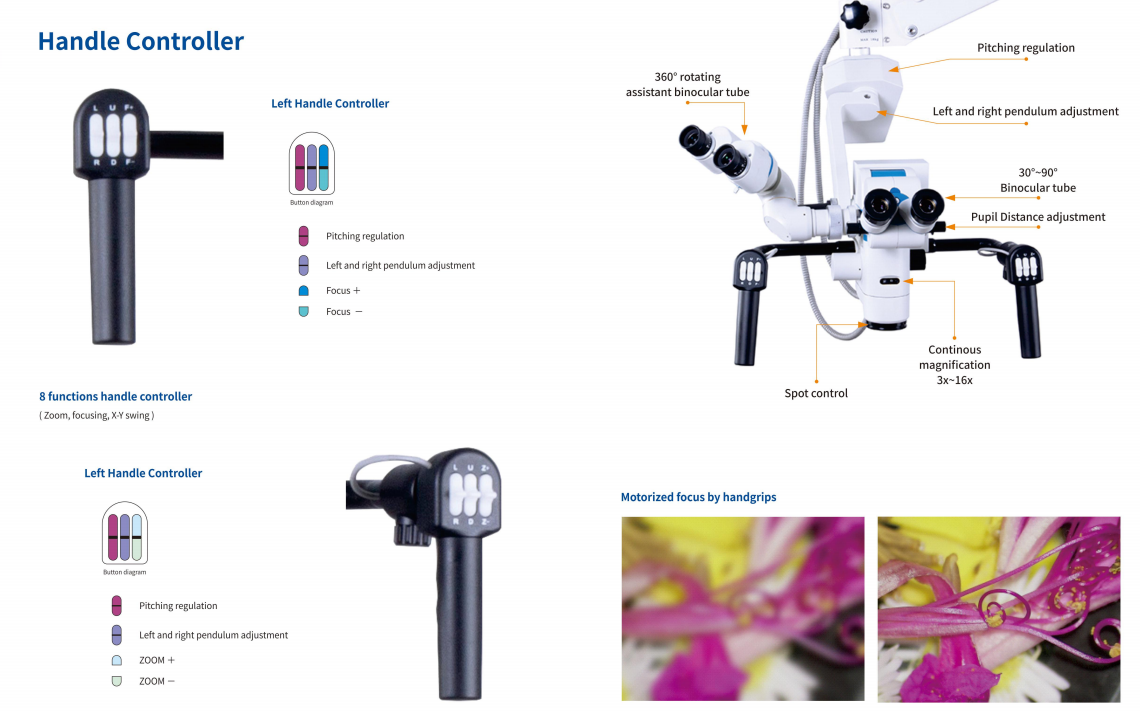

New stand：swing angle of the carrier arm 0 ~300°,height from objective to floor 800mm<H<1250mm Handle controller：8 functions (zoom, focusing, X‑Y swing)

Weight：164kg
