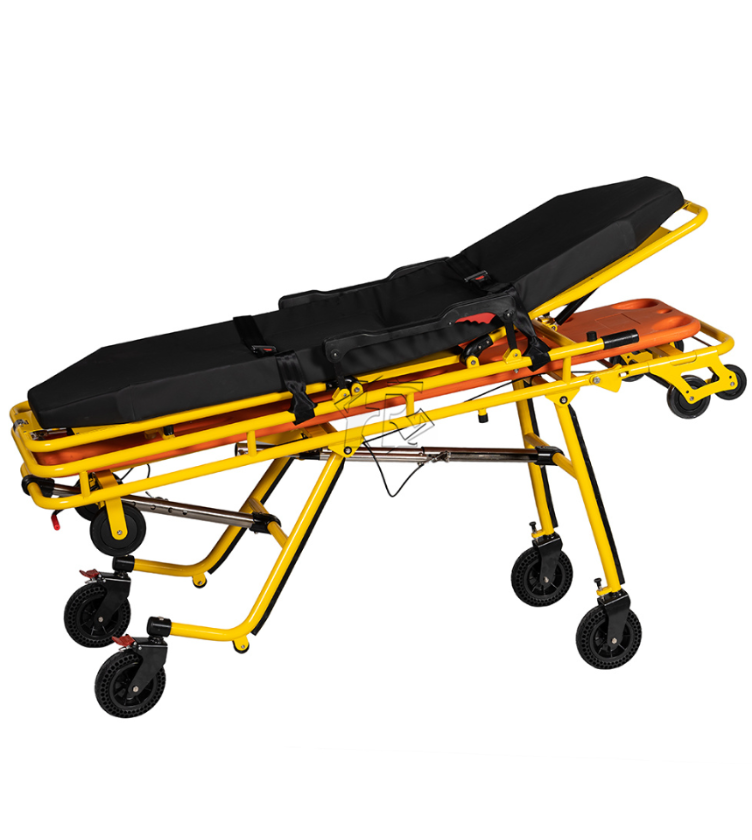

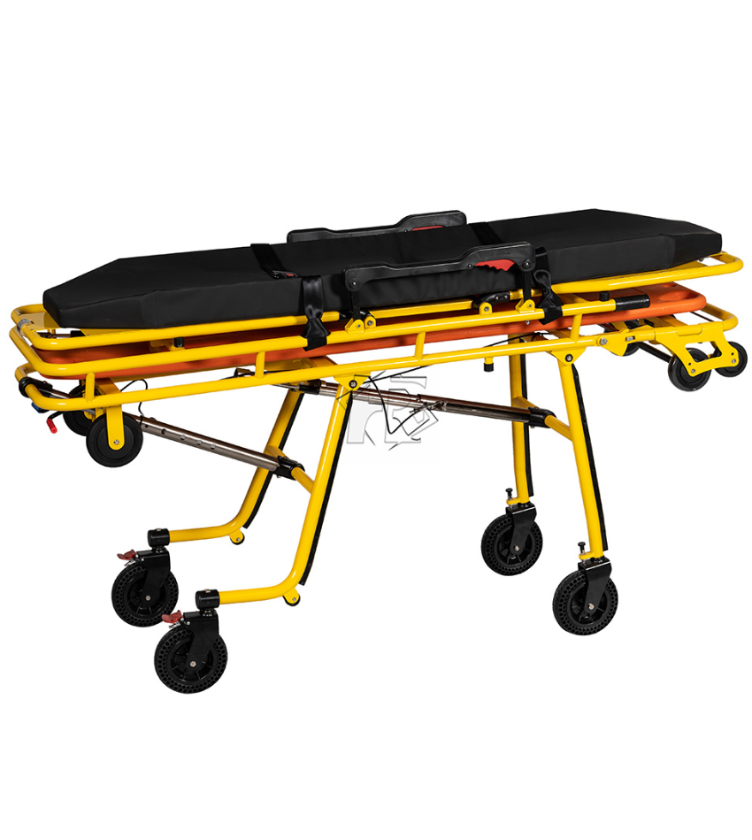

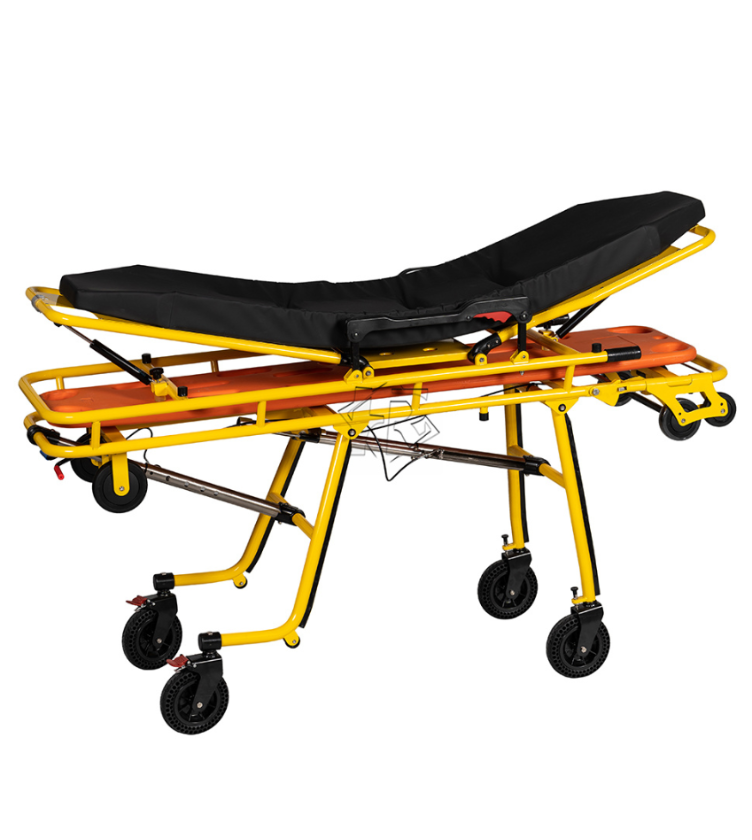

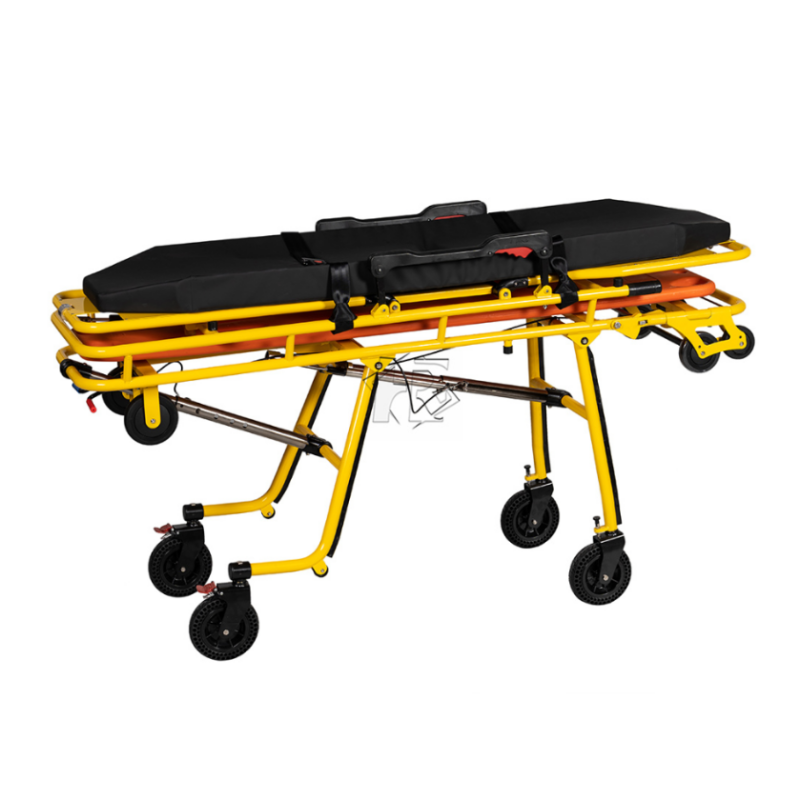

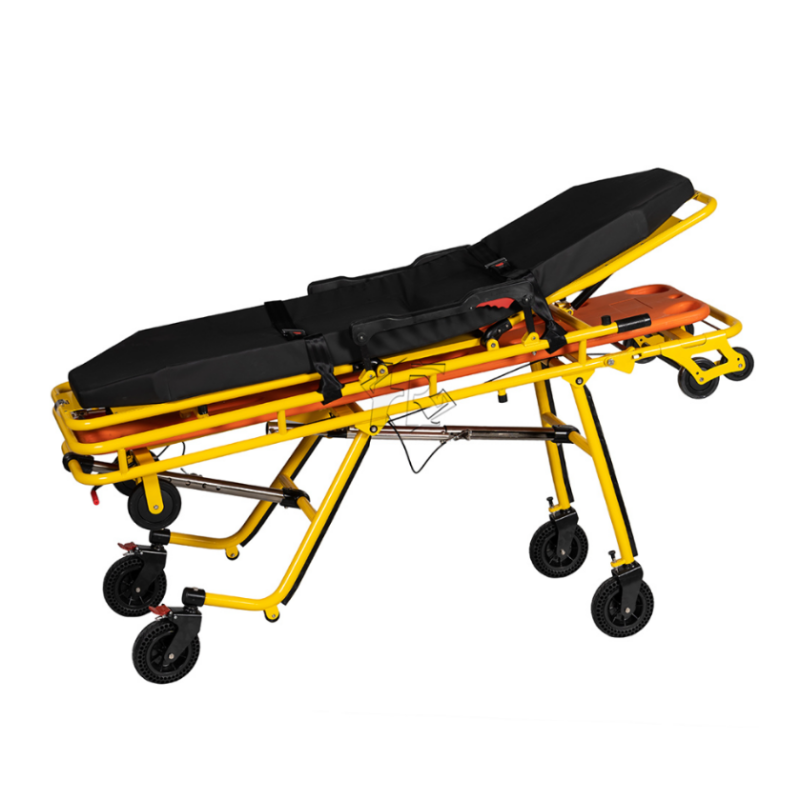

Ambulance Stretcher HR YHR-A10
Technical Specifications
The main material is high quality stainless steel and surface treated
The stretcher has double top Storage, the space is 8cm high, It is possible to store 1pc spine stretcher
Leg adjustment adopts bayonet type synchronous folding mechanism and the length of the vehicle is at least 176cm, which is convenient for entering and leaving the civil elevator or other narrow Spaces
The backrest Angle is adjusted by the gas spring, the range is 0-75°, and the leg adjustment range is 0-15°
The overall can be adjusted in 3 position to facilitate CPR operation
6. Mattress of the stretcher adopts PVC material concave shape,thickness:10cm
The universal wheels on the front end adopts a elastic latch to lock,they can be locked to go straight or universal as needed
Only one person can operate the stretcher onto the ambulance;The leg folding mechanism is controlled by the handle,Make sure it is locked with the fixtures after boarding!
Reversible guardrail protects patients during transfer; 2 sections retractable infusion stand,Max.length is 100cm,safety belt,fixing lock;Oxygen tank support is optional
Loading height:62cm Wheel size:φ200mm
Category | Details |
|---|---|
Name | Ambulance stretcher |
Model | YHR-A10 |
Feature | 1. Multi-Height adjusted 2. Both ends can be tilted 3. Length is adjustable 4. 8cm Waterproof mattress, Two straps 5. 8cm (mattress thickness) 6. Double top Storage 1pc spine board 7. Two-stage I.V. pole 8. Collapsible side rails 9. Vehicle Locking Device Included |
Optional | Pillow, Oxygen holder |
Material | Stainless steel & Aluminum alloy |
Dimension | 198×55×91cm |
Height range | 44-91cm |
Castor | Φ200mm, Universal wheel 4pcs |
Capacity | Max.250kg (550 LBS) |
N.W. | 59kgs |
Packing | 203×64×46cm, 1pc/CTN |
G.W. | 70kgs (Including a spinal plate) |
