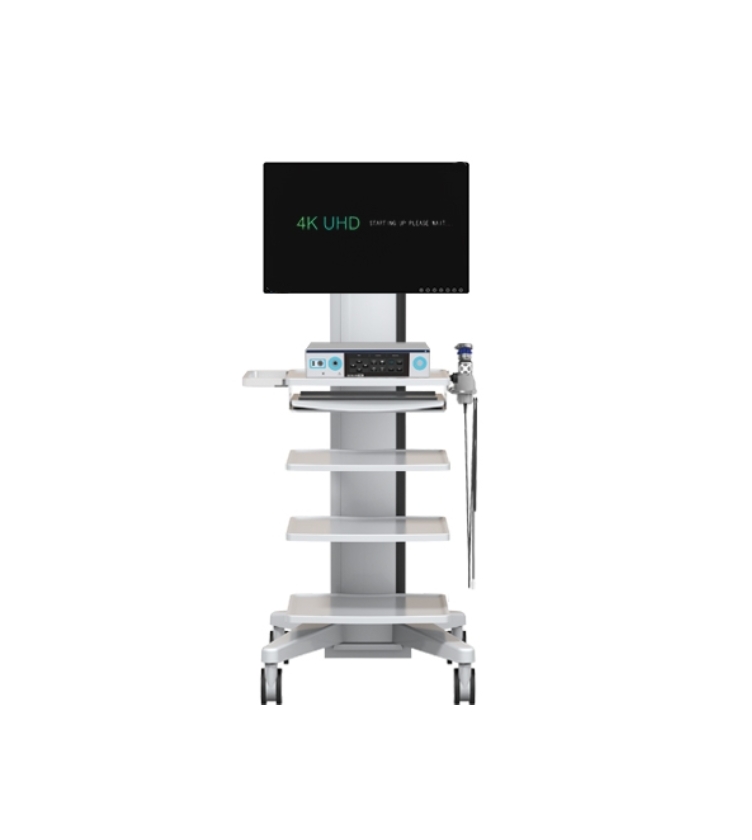

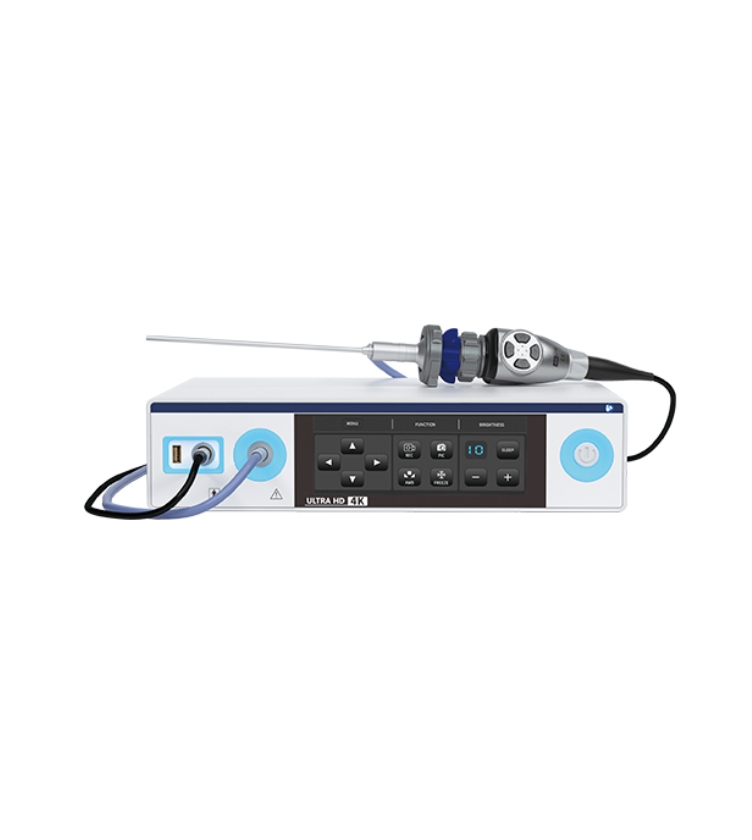

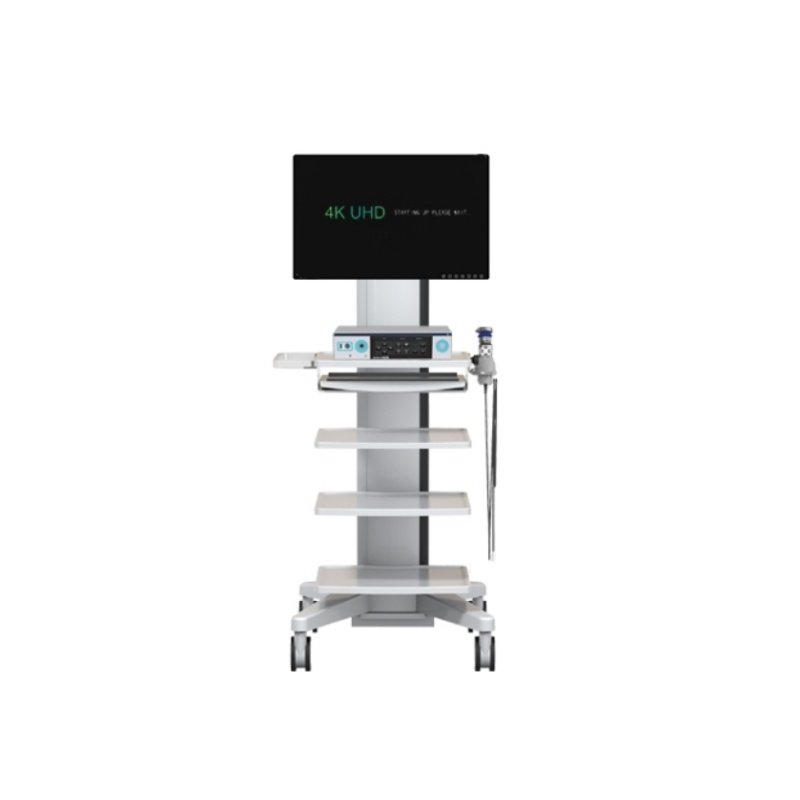

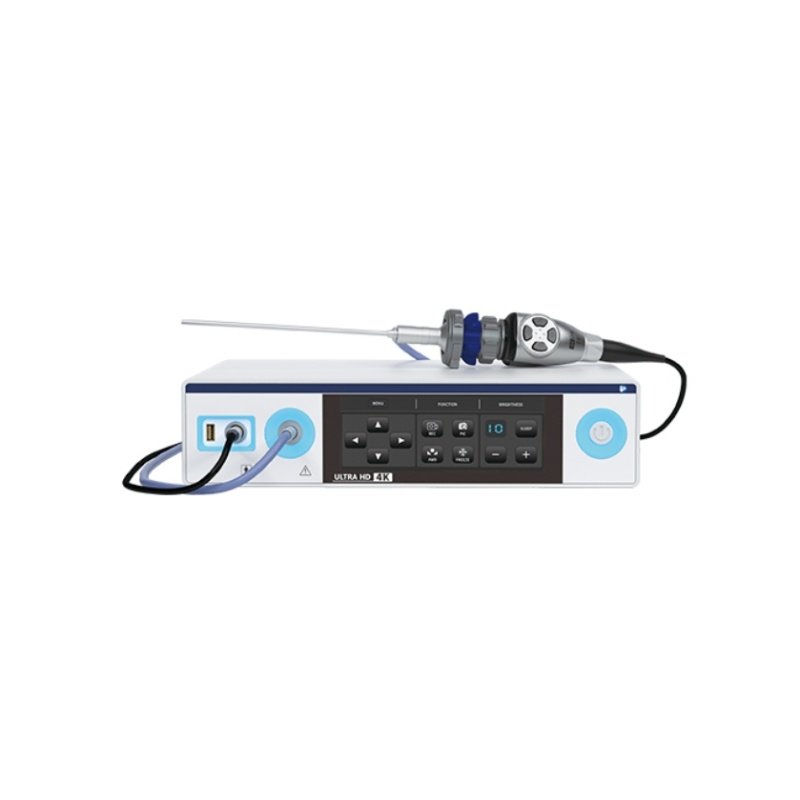

4K Veterinary Endoscope KH AKX-9610
Features 4K UHD resolution, with an integrated design of 4K camera and LED cold light source.
Supports photo capture, video recording, and zoom functions, along with universal C – mount threading for enhanced color and structure imaging.
It enables one – click switching between video/photo, zoom in/out, and white balance. Optional 32 – inch/55 – inch 4K monitors (3840x2160P) are available, certified with CE, ROHS, and FCC.
Technical Specifications
4K UHD resolution
4K camera, LED cold light integrated design
Photo capture, Video recording, Zoom
Universal c-mount threading
Image enhancement of colour and structure

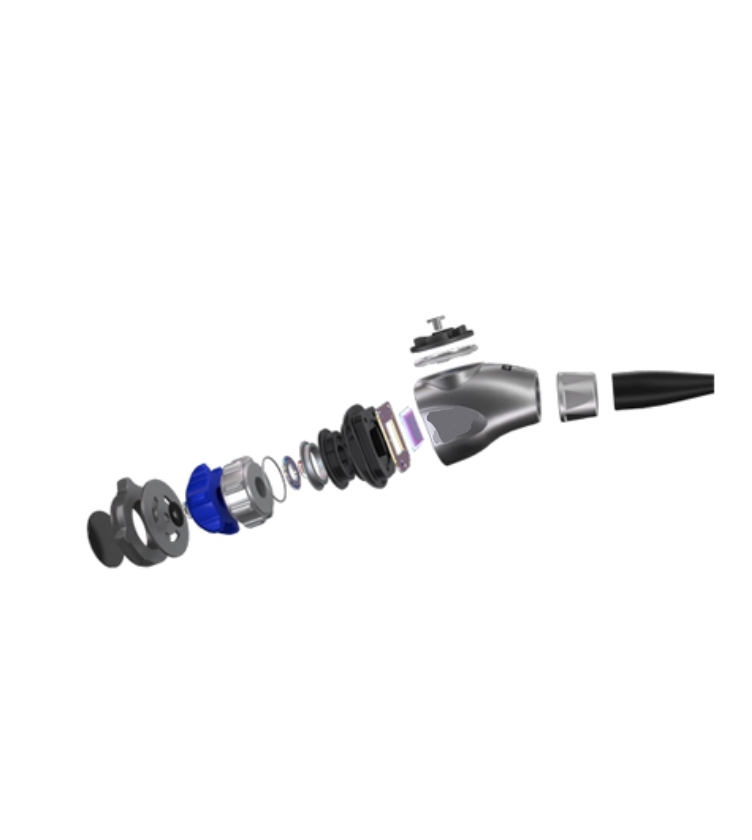

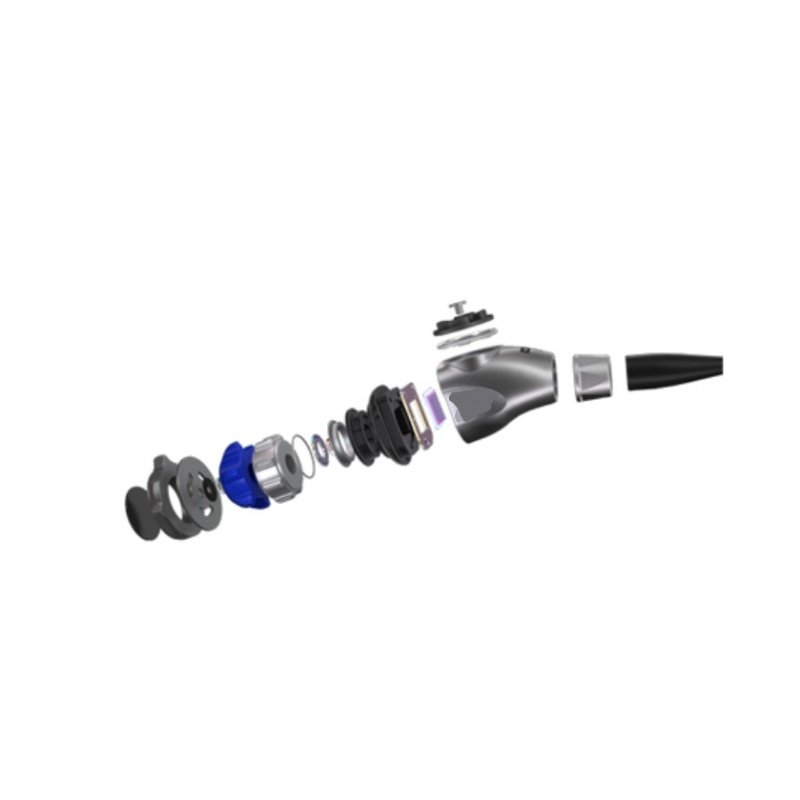

Rigid Endoscope Camera
- Ergonomic Design
- 4K Parfocal-zoom Bayonet
- IPX8 Waterproof Camera
- One click to switch video/photo, zoom in, zoom out, white balance
- Monitor
- 32inch/55inch 4K monitor
- 3840x2160P 4K ultra HD resolution
- Passed CE, ROHS, FCC certification
Category | Details |
|---|---|
Camera head | UHD imaging (3840 × 2160) 1/1.8" SONY CMOS IPX8 waterproof |
Voltage range (current consumption) | 100 - 240 V (50 VA) |
Frequency | 50 - 60 Hz |
Device protection | F3AL 250V 5×20mm |
Video system | Image resolution: UHD 3840 × 2160 Horizontal resolution: ≥1800 TVL SNR: 50DB, Tolerance 20% Scanning system: Progressive Scanning White balance automatically |
Screen size | 6.8 inch |
Light source | Built-in 80W LED cold light source |
Recording (optional | Image format: JPG 3840 × 2160 Video format: Full HD 3840 × 2160; Mpeg - 4 (H.264 Codec); Image rate 60fps Connection: USB |
Connections | Video out terminal: 2×HDMI 2.0 (4K) 1×DVI (HD) 1×SDI(HD) |
Protection class (acc.to IEC 60601 - 1) | I |
Safety class | BF |
Features | White balance Freeze function Zoom in/Zoom out Touch Buttons/Touch Screen USB storage Photo capture/Video recording |
Dimensions | 360(L)×280(W)×85(H) |
