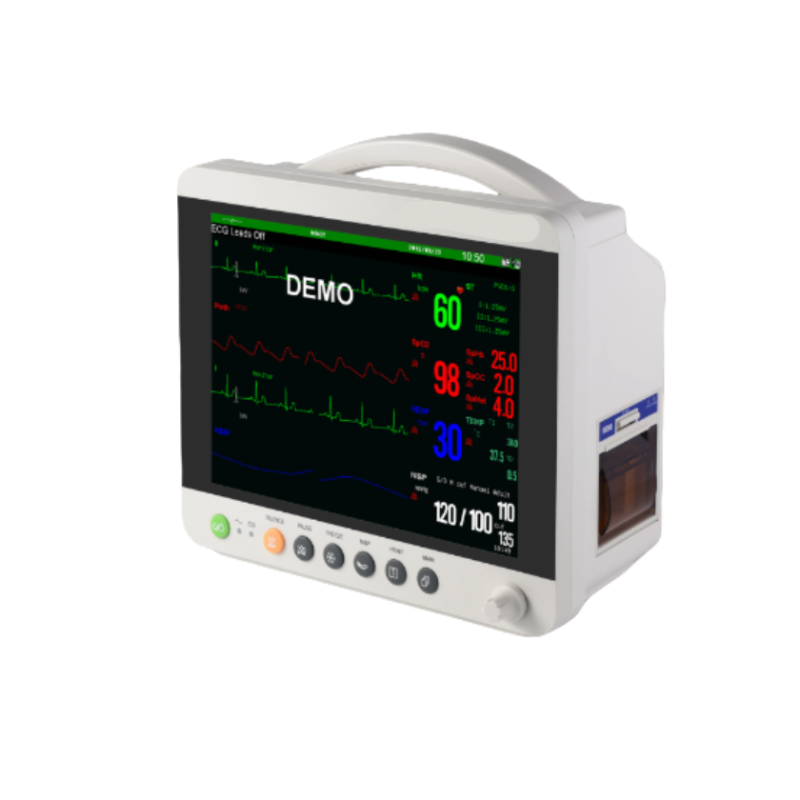

12 inch Veterinary Monitor XN VET-12H+
It monitors standard parameters (ECG, SpO2, NIBP, TEMP, RESP) and offers options like touchscreen, EtCO2, and 2 – IBP. Built – in battery, AC check, and flexible mounting support mobile use.
Technical specs include 5 – lead ECG (0 – 350bpm), SpO2 (0% – 100% for all animals), NIBP (10 – 300/200mmHg for large/small), TEMP (0 – 50℃), and RESP (0 – 120bpm) via thoracic impedance.
Description

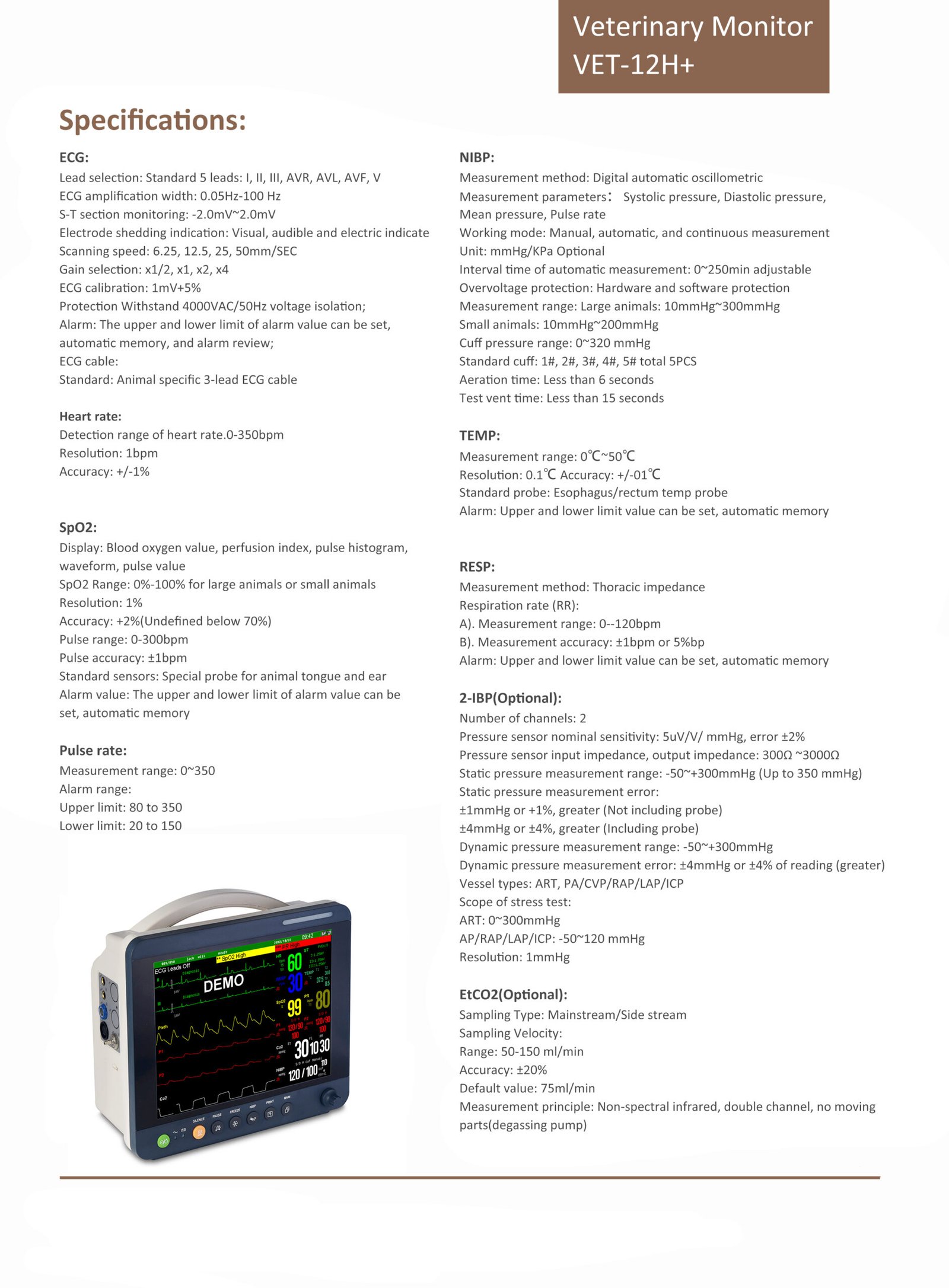

Technical Specifications
- VET-12H+ Veterinary Monitor：It is a 12-inch veterinary monitor designed for animals of different sizes, suitable for cats (small), dogs (medium), and horses (large).
- Display and Operation: Equipped with a 12-inch color TFT display with a resolution of 800×600dpi, it adopts full-touch screen operation with a navigation knob, making the operation intuitive.
- Special Accessories: Includes 3/5 lead ECG cables with animal limb clips, SpO2 sensors with tongue clips and ear clips, NIBP cuffs of original Suntech cuff1 (sizes 2#, 3#, 4#, 5#), rectal temperature sensors, and a special NIBP board for veterinarians (including alarm range and software).
- Functional Features: Has SpO2 pitch variation function, multiple display modes (Standard, Large font, Trend Coexis, OxyCRG dynamic), standby mode for energy saving and suspend monitoring, adjustable screen brightness, can capture dynamic waveforms, built-in rechargeable lithium battery with battery volume checking, AC power checking function, time delay switch-off function to save monitor data, and a complete and flexible mounting solution for transportation.
- Monitoring Parameters: The standard 5 parameters are ECG, SpO2(PR), NIBP, TEMP, and RESP; optional parameters include Touchscreen, EtCO2, 2-IBP, Suntech NIBP, Masimo/Nellcor SpO2, Multi-gas(AG), Printer, and Wall Mount/Trolley.
