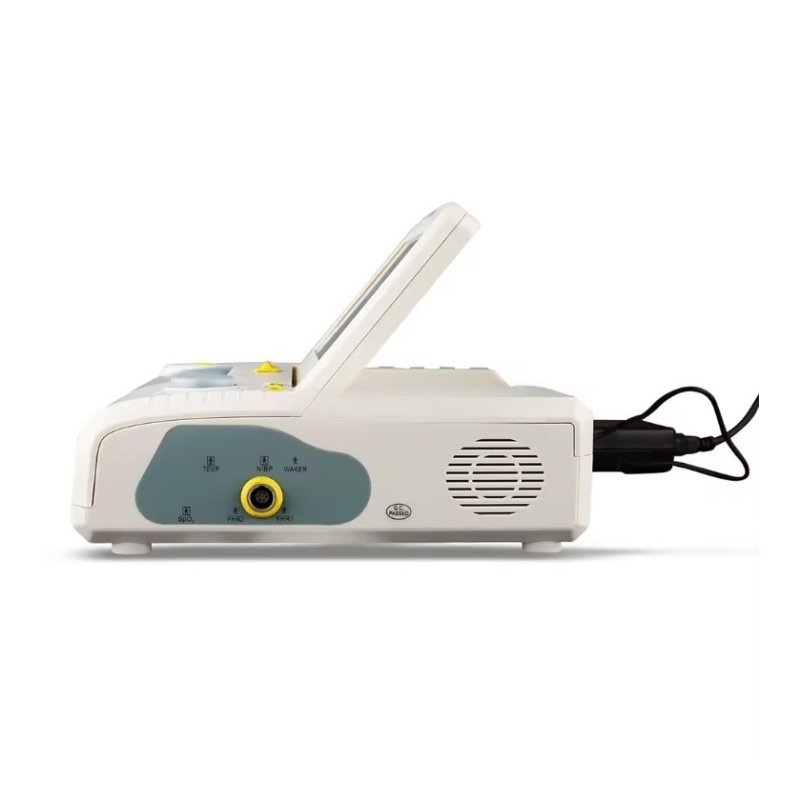

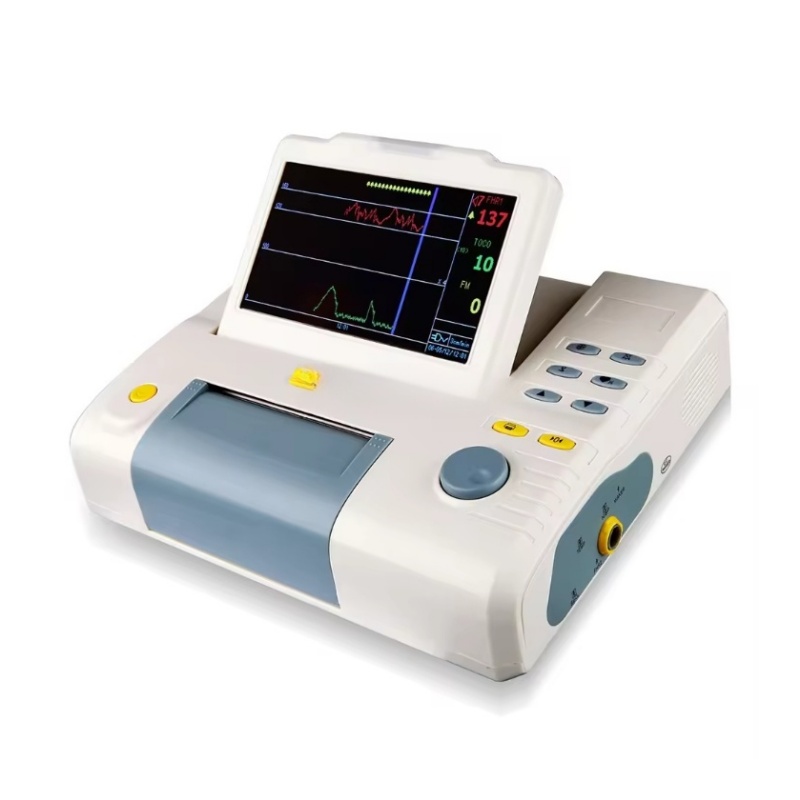

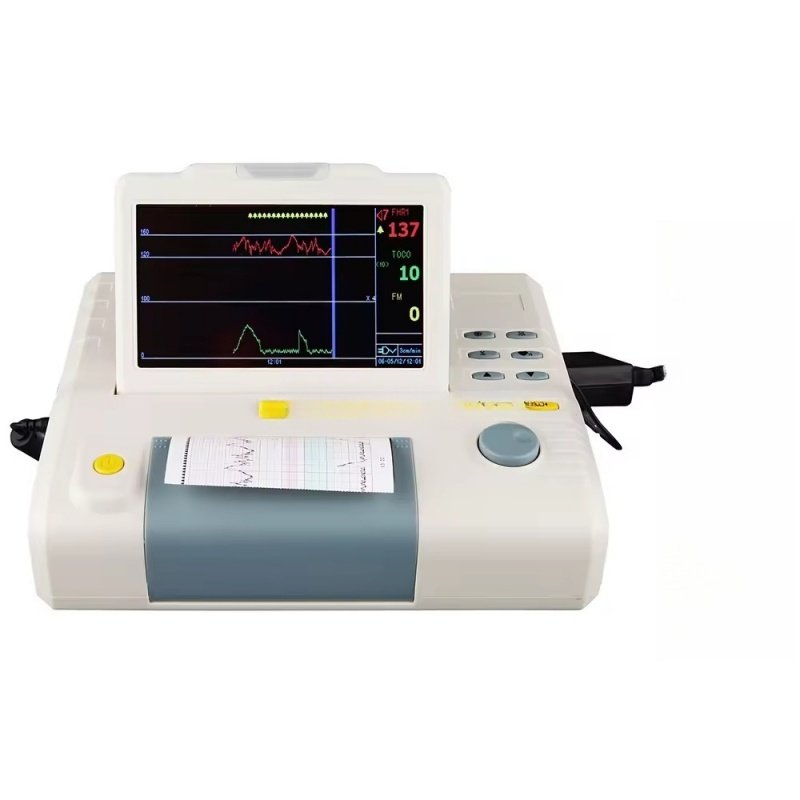

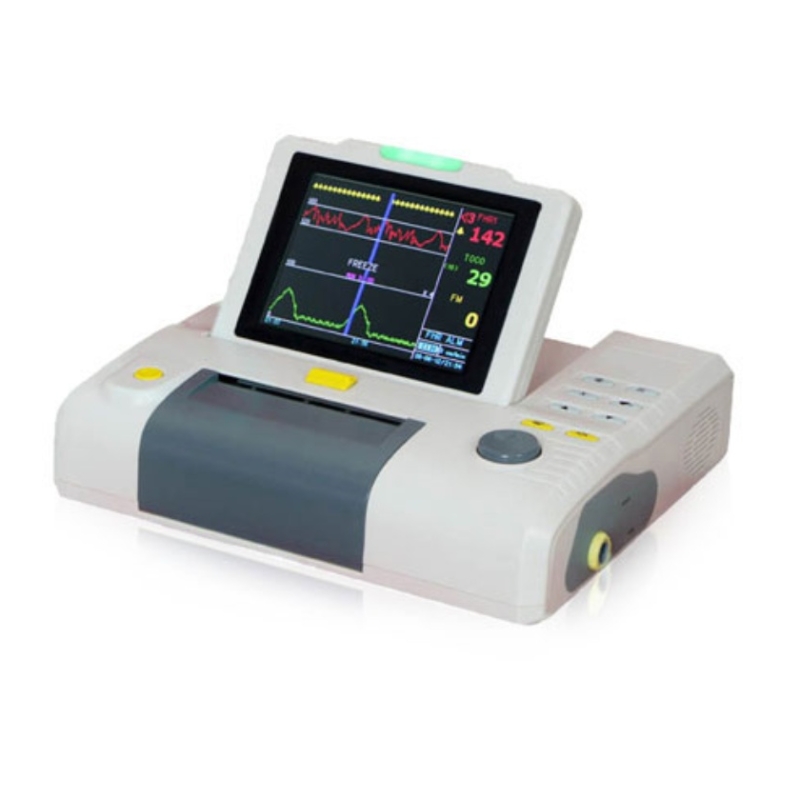

Patient Monitor XN SNF9000
Compact and lightweight design
7-inch color TFT screen, foldable at 90 degrees
Built-in high dot matrix thermal printer with long lifespan
Technical Specifications
Compact and lightweight design
7" color TFT screen, folding 90 degrees
Built-in high dot matrix thermal printer with long life
A standard patient event marker and a clinical event marking button to mark clinical events separately.
Auto fetal movement are available.
Multi-crystals, wide beam forming, high sensitivity ultrasound transducer, low ultrasound power
AC or Li-ion battery
Category | Details |
|---|---|
Fetal Heart Rate Transducer | Multi-crystal, pulsed doppler, high sensitive |
Transducer Strength | <5mw/cm2 |
Working Frequency | 1.0MHZ |
Signal Processing | Special DSP system and mode recognition |
Measurement Range | 50-210 bpm |
Alarm Range | High: 160, 170,180, 190 bpm;Low: 90, 100, 110,120 bpm |
Largest Audio Output Power | 1.5W |
Measurement Range | 0-100 units |
Battery Working Time | 2 hours (no printer working) |
Power supply | AC 220V+20%,50Hz or 8.4V Li- battery |
Power Consumption | <20W |
Working Environment | Temperature:10-40°℃;RH: 10-80% |
