X-ray Film Illuminator YH PD-IB1-E

Product Information

• Model: PD – IB1 – E

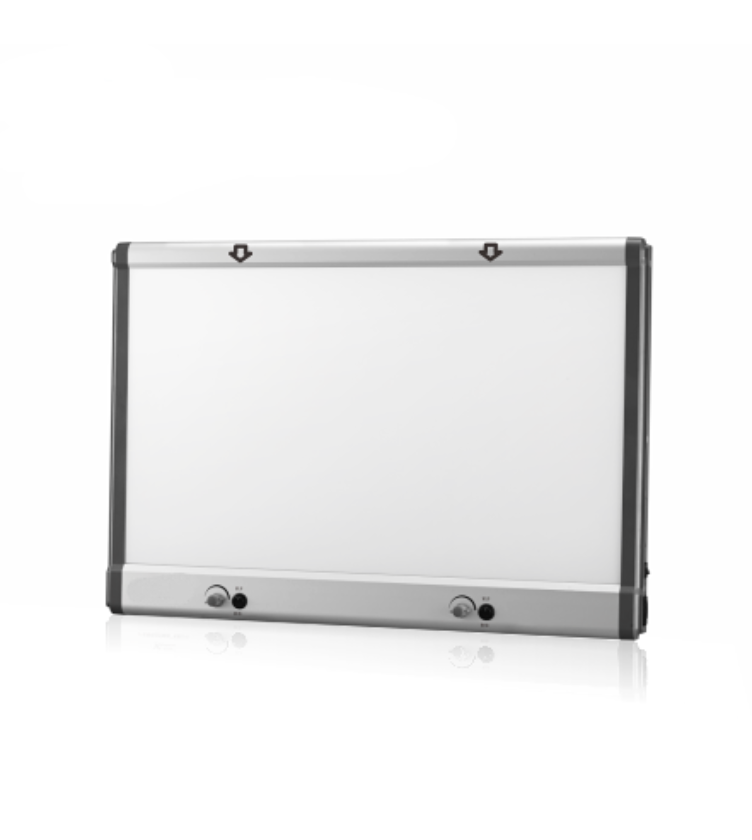

• Specification: Single – bank, double – bank, triple – bank, quadruple – bank (The illustrated specification is double – bank)

Backlight and Related Performance

• 4000cd/m² High – Brightness LED Backlight

• LED backlight technology, each bank consists of 560 LED diodes (light – emitting diodes).

• The average brightness of the observation screen reaches above 4000cd/m² (with an average illuminance of 13000lux).

• Color temperature: above 10000K, white – blue – biased color temperature.

• The brightness uniformity of the observation screen is greater than 90%, and there is no dark area on the film – viewing screen.

• Complies with the mandatory brightness standard YY/T 0610 – 2007 for national X – ray film illuminators.

Functional Features

• Brightness Adjustment (300cd/m² – 4000cd/m²): The stepless dimming knob can achieve any required brightness within the dimming range, meeting the screen brightness requirements during film viewing.

• Automatic Screen Brightening on Film Insertion: You can choose to keep the observation screen always on or have it automatically brighten when a film is inserted. When set to the automatic screen – brightening state, the film – viewing area brightens immediately upon insertion, simplifying the operation procedure and being energy – saving and environmentally friendly.

  Parameter	Single – bank	Double – bank	Triple – bank	Quadruple – bank
  Overall Dimensions (Length × Width × Thickness, mm)	425×540×40	790×540×40	1155×540×40	1520×540×40
  Film – viewing Dimensions (Length × Width, mm)	365×425	730×425	1095×425	1460×425
  Power Consumption (w)	50	100	150	200
  Light Source Type, Color Temperature	High – brightness LED backlight: above 10000K, white – blue – biased color temperature
  Number of LEDs per Bank	560 LEDs per bank
  Power Supply, Voltage, Frequency	Built – in power supply: AC90v – 240v; 50/60 Hz
  Brightness Adjustment Range of Observation Screen	Average brightness: 300cd/m² – 4000cd/m²; Average illuminance: 900 lux – 13000 lux
  Brightness Uniformity of Observation Screen	≥90%
  Film – clamping Device	Cylindrical inclined – rolling pressure – cable – type film – clamping device
  Installation and Use Methods	Wall – mounted; Table – stand type; Bracket type (Table stands and brackets are optional accessories and need to be purchased separately)
  Applicable Films	Ordinary analog X – ray films, high – density digital X – ray films, molybdenum – target breast medical films
  Operating Environment Conditions	The ambient illuminance of the film – viewing room is recommended to be no more than 100 lux
