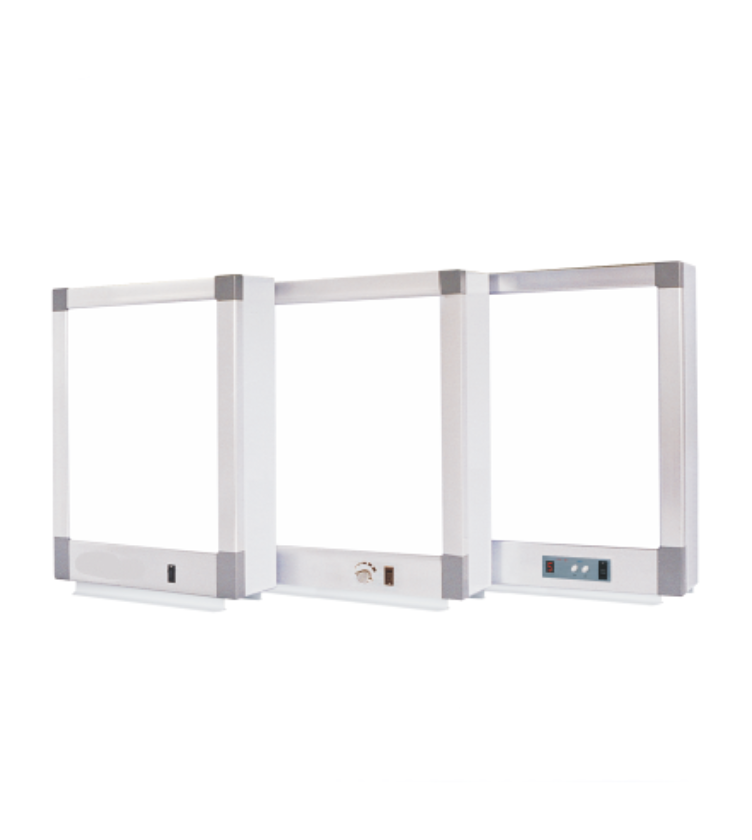

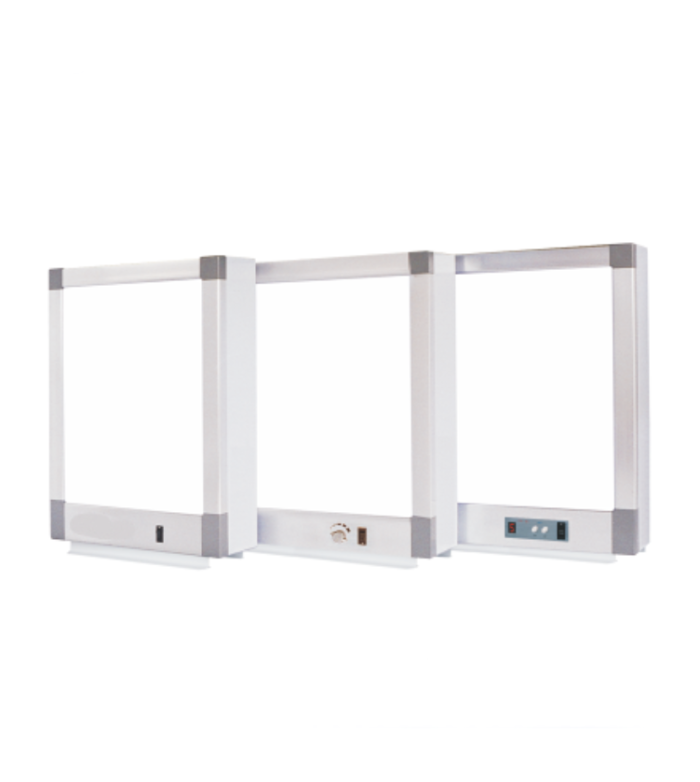

X-ray Film Illuminator YH PD-H

PD Series Deluxe High-Brightness X-Ray Film Illuminators

The average brightness of the observation screen has jumped from the original 1200cd/m² to above 2000cd/m². Higher and more uniform brightness can display richer image levels, providing more diagnostic information for doctors.

High-strength electrophoretic aluminum alloy profile panels and boxes, with sophisticated manufacturing processes, have an attractive appearance and a sturdy structure.

Features

• Includes five major series: Deluxe, Three-dimensional, Ultra-thin, Wall-recessed, Mammary Gland.

• The box frame is made by integral forming technology of high-strength aluminum alloy profiles, with an attractive appearance and a sturdy structure (upper picture).

• The box and panel adopt a box-type automatic closing switch, which is easy to open and close, facilitating daily maintenance (left picture).

• Electrostatic spraying process: The box has good gloss, anti-oxidation and no rust; high-quality coatings can also improve the brightness of the film illuminator (lower picture).

• The film-viewing screen has high finish, uniform and soft light output; long service life, not easy to deform or yellow.

• Adopts a cylindrical compression-type film-clamping device: Easy film insertion, firm film clamping, and easy film removal (left picture).

• Complies with the mandatory standards of national X-ray film illuminator YY/T 0610-2007 for brightness, uniformity, stability, color temperature and electromagnetic safety.

• Schematic diagram of fluorescent tube specifications: T4, T5, T8
