X-ray Film Illuminator YH PD-0B1-E
Features a 4000cd/m² high-brightness LED backlight (10000K color temperature, ≥90% uniformity) with auto-brightening on film insertion. Complies with YY/T 0610-2007 standards, ensuring clear, consistent visualization for analog/digital/mammography films.
Boasts a 4cm-thin, stylish acrylic-paneled structure with independent bank controls. Supports wall/table/bracket mounting, plus wide brightness adjustment (300–4000cd/m²) to fit diverse clinical environments (ambient ≤100 lux).
Features
Product description
- Model: PD-OB1-E

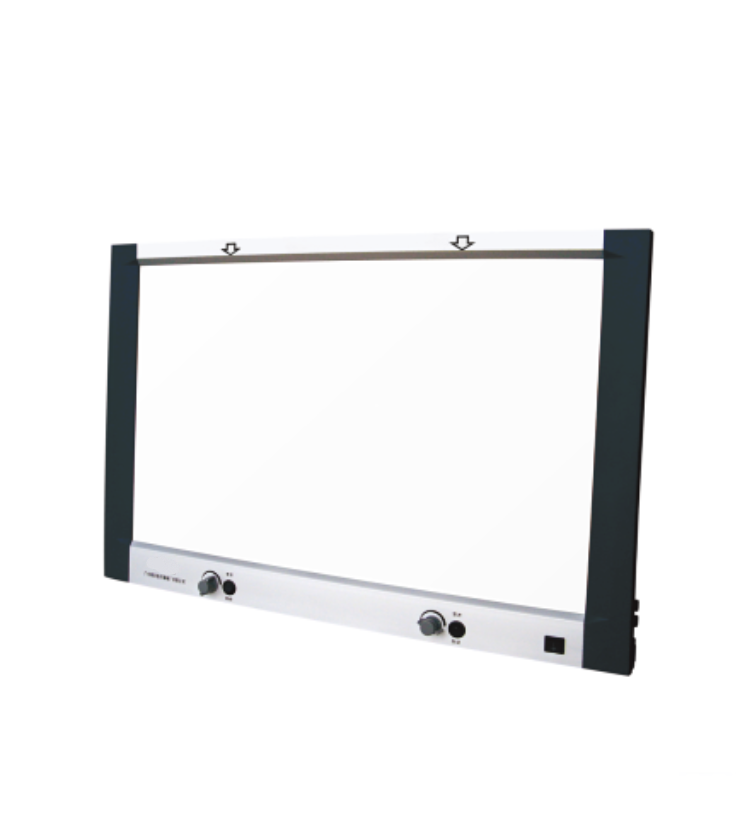

- Specification: Single-bank, double-bank, triple-bank, quadruple-bank (The illustrated specification is double-bank)
Feature Descriptions
- Adopts double acrylic light-transmitting panels, with high light transmittance, more uniform and soft light output; long service life, not easy to deform or yellow.
- Film insertion auto-brightening function: The film-viewing area brightens immediately upon insertion, simplifying operation procedures and being energy-saving and environmentally friendly.
- LED backlight technology: No dark areas in the film-viewing area, and the brightness uniformity of the observation screen is greater than 90%.
- Complies with the mandatory brightness, uniformity, stability, color temperature and other standards of the national X-ray film illuminator YY/T 0610-2007.
- Independent control function for each bank (brightness adjustment, observation screen always-on, film insertion auto-brightening).
- Cylindrical compression-type film-clamping device: Easy film insertion, firm film clamping, and easy film removal (as shown above).
- Wide-range brightness adjustment function (300-4000cd/m²): Fully meets the reading and diagnosis requirements of different density films such as analog, digital, and mammography films.
- Adopts a built-in 90V-240V power supply.
- Even soft paper can be easily clamped.
Design-Related
- Elegant and Slim Design: The panel design with a three-dimensional sense of hierarchy, choosing moon-silver and dark gray as the color matching of the frame, and using new materials such as high-strength electrophoretic aluminum alloy and plastic alloy, showing a noble and generous quality; slim appearance, with the whole machine thickness only 4cm.
- The average brightness of the observation screen reaches above 4000cd/m² (illuminance 13000lux): Using LED as the backlight, compared with the original CCFL tube LCD products, the average brightness is increased from the original 1500cd/m² to 4000cd/m² (≈13000lux) or more, applicable to the reading and diagnosis of high-density digital films and mammography films. The light source color temperature of above 10000K with a slight blue tint, compared with the 6500K white light, is more suitable for film reading and diagnosis.
- LED/LCD film illuminator table stand, specification 1-4 banks.
PARAMETER | SINGLE-BANK | DOUBLE-BANK | TRIPLE-BANK | QUADRUPLE-BANK |
|---|---|---|---|---|
Overall Dimensions | 470×545×40 | 830×545×40 | 1190×545×40 | 1550×545×40 |
Film-viewing Dimensions | 360×440 | 720×440 | 1080×440 | 1440×440 |
Power Consumption (w) | 50 | 100 | 150 | 200 |
Light Source Type, Color Temperature | LED backlight: Above 10000K white with a slight blue tint color temperature |
Power Supply, Voltage, Frequency | Built-in power supply; AC90v~240v; 50/60 Hz |
Brightness Adjustment Range of Observation Screen | Average brightness: 300cd/m²~4000cd/m² / Average illuminance: 900 lux~13000 lux |
Brightness Uniformity of Observation Screen | ≥90% |
Film-clamping Device | Cylindrical inclined-rolling pressure-cable-type film-clamping device |
Installation and Use Methods | Wall-mounted; Table-stand type; Bracket type |
Applicable Films | Ordinary analog X-ray films, high-density digital X-ray films, molybdenum-target breast medical films |
Operating Environment Conditions | The ambient illuminance of the film-viewing room is recommended to be no more than 100 lux |
