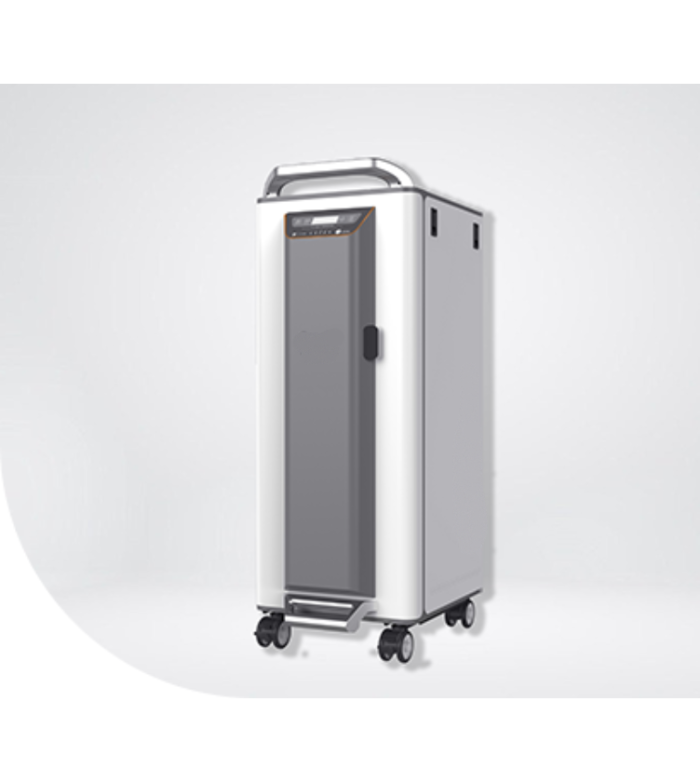

Water Treatment Equipment for Hemodialysis CJ DVP 120

Product Model: CJ-DVP 120 Type

• Small Volume & Simple Operation

  • Adopts an integrated design with quick-plug installation, developed specifically for single-bed (bedside) dialysis.

  • Equipped with silent medical casters for easy movement, small footprint, space-saving.

  • One-button switch and PLC automatic operation for simpler use.

• Standby Rinsing + Direct Water Supply

  • With standby rinsing function: cyclic rinsing at fixed intervals during standby to ensure water circulation and avoid bacterial growth.

  • Circulation pipeline designed without dead space; water supply pipeline uses medical-grade materials.

  • Adopts direct water production supply solution, no intermediate water storage device, real-time and efficient.

• Operation During Water Interruption + Emergency Power Off

  • Uses a 40L pre-installed water storage tank (raw water) for more thorough disinfection.

  • Can continuously operate for ≥30 minutes during water interruption, keeping running to supply dialysis machines in emergency.

  • Equipped with a mandatory power switch, allowing emergency power off in urgent situations.

• One-button Disinfection + Automatic Rinsing

  • Uses high-quality anti-pollution reverse osmosis membrane elements, with a desalination rate ≥98.5%.

  • Features fully automatic rinsing of reverse osmosis membranes; one-button fully automatic chemical disinfection of reverse osmosis membranes and pipelines.

  • Equipped with a detection port after disinfection for residual detection, ensuring accuracy.

Key Specifications

• Product Model: CJ-DVP 120

• Water Production Capacity: 120L/h (at 25℃ water temperature), cyclic direct water supply.

• Usage Scenario: Supplies water for 1–2 dialysis machines simultaneously.

• Host Dimensions: 437mm658mm1175mm

• Microbial Indicators: Total colony count <5CFU/ml; Endotoxin <0.25EU/ml

• Pure Water Pressure: 0.2–0.35Mpa, constant pressure direct supply with adjustable pressure.

• Water Inlet Requirements: AC 220V/50Hz; Power 400W

• Environmental Conditions: Ambient temperature 5–40℃; Inlet water temperature 5–35℃

• Product Water Quality: Complies with YY0572-2015 standards.
