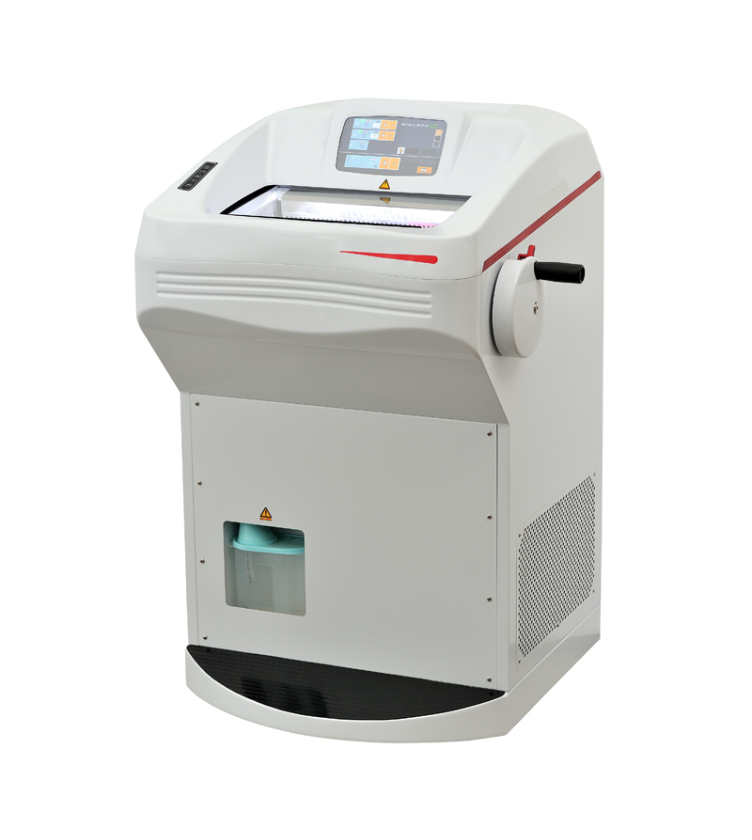

Touch Screen Laboratory Cryostat Microtome KD 3000

Mobile floor – stand (4 casters, stable after fixing). 10 – inch color touchscreen, 4 – language menu. Real – time display: slices, thickness, status, etc. UV disinfection (15min, stoppable).
Dual German compressors, R404A refrigerant. Fast cooling (reach temp in 30min), low noise (<50dB). Sleep mode (-5~-15℃, energy – saving).
360°/12° rotatable specimen chuck. 24 – specimen cold stage. Auto – return head. Slicing 0 – 100μm, trimming 0 – 600μm.

Mobile and adjustable floor-standing design with 4 caster wheels for easy movement; once the casters are adjusted and fixed, the machine body is stable and reliable.
Equipped with a 10-inch color LCD touchscreen and an intelligent human-machine interface, making operation easy and intuitive. All parameters are clearly displayed in real-time on the same screen (total number of slices, total slicing thickness, slicing thickness, specimen retraction value, temperature control status, device operating status, time, temperature, timed sleep/on-off function, defrosting, etc.).
Built-in 4-language menu, switch freely to meet the needs of users with different language preferences.
Adopts UV disinfection, lasting 15 minutes each time, and can be stopped midway freely.
Quick slicing and trimming function switch button allows free switching between trimming and slicing modes during operation.
The low-temperature refrigeration system uses a forced refrigeration structure, featuring original German dual compressors. Imported R404A environment-friendly fluorine-free refrigerant is used to cool the freezer, cold stage, knife holder, and specimen head, with independent control and high temperature control precision.
Dual-compressor design enhances refrigeration performance, improving cooling speed; it can reach the operating temperature within 30 minutes after power-on.
High refrigeration efficiency, low energy consumption, and operating noise as low as below 50 dB.
User-friendly sleep function: When in sleep mode, the freezer temperature is automatically controlled between -5°C and -15°C; after canceling sleep mode, it can reach the slicing temperature within 15 minutes, saving energy and extending the machine’s lifespan.
Handwheel locking function with 360° arbitrary positioning lock.
Spacious cold stage can handle 24 specimens at the same time, including 6 semiconductor cooling plates.
Equipped with an imported snap-type tissue chuck, featuring 360° rotation on the X-axis and 12° universal rotation on the Y-axis, making tissue installation more convenient and efficient.

Has a specimen head automatic return function: when the specimen head reaches the limit position, it automatically returns to the starting position, and operation can also be paused.

arameter Name	Parameter Value
Slicing Thickness	0μm ~ 100μm adjustable
Trimming Thickness	0μm ~ 600μm adjustable
Specimen Retraction Value	0 ~ 60μm adjustable
Freezer Temperature Control Range	+10℃ ~ -60℃
Sample Head Temperature Control Range	+10℃ ~ -60℃
Time for Freezing Stage to Reach -45℃	60 minutes
Minimum Temperature of Freezing Stage	Below -50℃
Temperature of Freezing Stage with Additional Semiconductor Cooling	-65℃
Frost-Free Freezing Stage Sample Freezing Positions	24 pcs
Additional Semiconductor Cooling Positions on Freezing Stage	6 pcs
Semiconductor Operating Time	15 minutes
Maximum Sample Size	55mm×80mm
Specimen Vertical Movement Stroke	65mm
Specimen Horizontal Movement Stroke	22mm
Electric Feeding Speed (2 Gears)	900μm/s; 450μm/s
Power Supply Voltage	AC220V±10% 50Hz
Total Power of Machine	800W
Overall Dimensions	700×760×1160mm
Net Weight of Machine	135kg

Touch Screen Laboratory Cryostat Microtome KD 3000

Mobile floor – stand (4 casters, stable after fixing). 10 – inch color touchscreen, 4 – language menu. Real – time display: slices, thickness, status, etc. UV disinfection (15min, stoppable).

Dual German compressors, R404A refrigerant. Fast cooling (reach temp in 30min), low noise (<50dB). Sleep mode (-5~-15℃, energy – saving).

360°/12° rotatable specimen chuck. 24 – specimen cold stage. Auto – return head. Slicing 0 – 100μm, trimming 0 – 600μm.

Mobile and adjustable floor-standing design with 4 caster wheels for easy movement; once the casters are adjusted and fixed, the machine body is stable and reliable.

Built-in 4-language menu, switch freely to meet the needs of users with different language preferences.

Adopts UV disinfection, lasting 15 minutes each time, and can be stopped midway freely.

Quick slicing and trimming function switch button allows free switching between trimming and slicing modes during operation.

Dual-compressor design enhances refrigeration performance, improving cooling speed; it can reach the operating temperature within 30 minutes after power-on.

High refrigeration efficiency, low energy consumption, and operating noise as low as below 50 dB.

User-friendly sleep function: When in sleep mode, the freezer temperature is automatically controlled between -5°C and -15°C; after canceling sleep mode, it can reach the slicing temperature within 15 minutes, saving energy and extending the machine’s lifespan.

Handwheel locking function with 360° arbitrary positioning lock.

Spacious cold stage can handle 24 specimens at the same time, including 6 semiconductor cooling plates.

Equipped with an imported snap-type tissue chuck, featuring 360° rotation on the X-axis and 12° universal rotation on the Y-axis, making tissue installation more convenient and efficient.

Has a specimen head automatic return function: when the specimen head reaches the limit position, it automatically returns to the starting position, and operation can also be paused.
