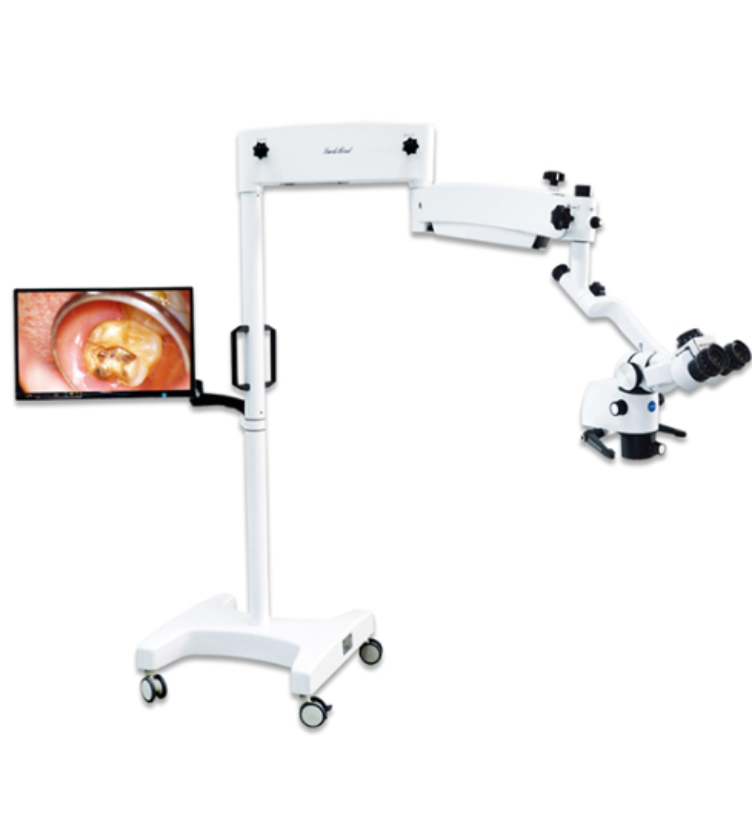

Top-Configuration Surgical Microscope ZJ LZJ-6EQ Model C
120° damping cantilever (6 – DOF rotation), floor – movable base + adjustable arms (1350mm extension), fits diverse surgical positions
Sony mirrorless camera + 23 – inch display + HDMI/memory card, enables HD surgical field capture & recording for teaching/archiving
CONFIGURATION | TECHNICAL PARAMETERS |
|---|---|
Variable - angle Binocular Tube with Optical Hinge | Angle – changing Range: 0° – 180°, Maximum 220° |
Binocular Tube with Rotary Pupil Distance Adjuster | Pupil Distance Adjustment Range: 50mm – 80mm |
Eyepiece Magnification | 12.5X/18B |
Diopter Adjustment Range | ±6D |
Apochromatic Objective with Fine Focus | Objective Working Distance F = 250mm; Focus Adjustment Range 20mm |
Five – speed Drum Zoom System | Magnifications: 3.4X, 5.1X, 8.3X, 13.5X, 20.5X |
Field Diameter (F250) | 66mm, 44mm, 26mm, 16.5mm, 10.4mm |
Spot Diameter | Φ85mm |
Color Filter Regulator | Yellow Color Filter, Green (Achromatic) Color Filter, Heat – Insulating Sheet |
High – Definition Built – in Spectroscopic Collimation System, Convenient for Intraoperative Adjustment | Left – right Deviation ≤ ±15° |
External or Internal LED Illumination | Object Surface Illuminance ≥ 30000 – 60000lx, Adjustable Brightness, with Automatic Light – off and Power – off Switch Device |
120° Damping – type Balanced Cantilever | Double – column with Display – equipped Stand |
Small Horizontal Arm | Length: 600mm; Rotation Angle: ±150°; Vertical Movement: ±350mm |
