Three-layer Cassette Sterilizer KT WISDOM 6000 S3

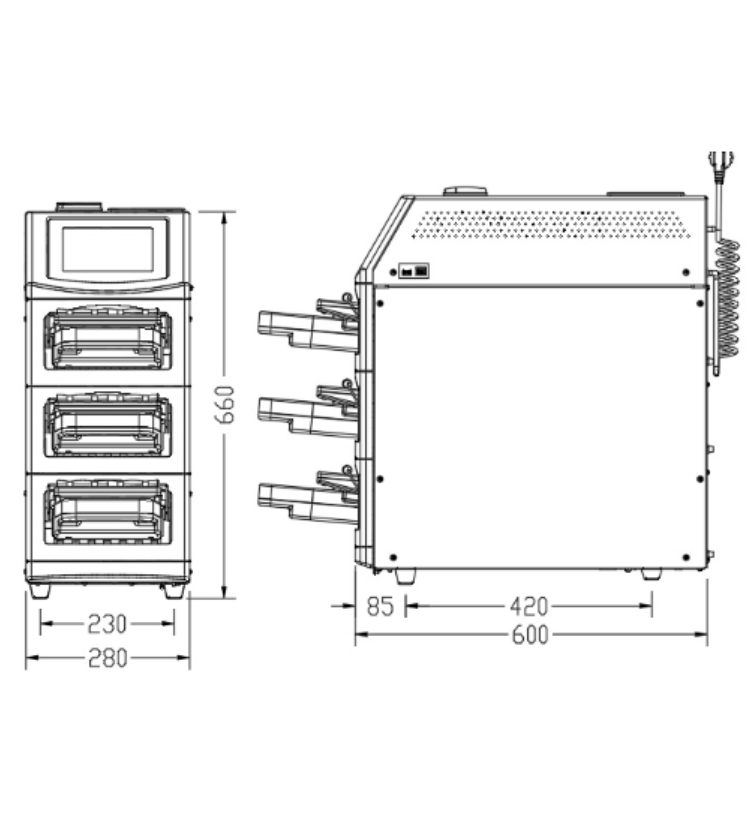

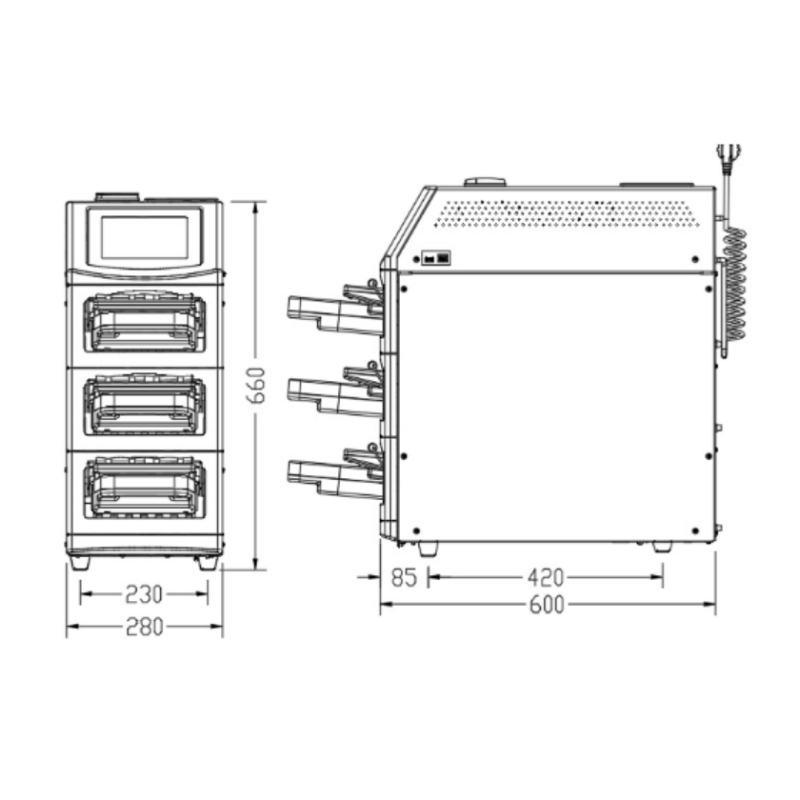

The WISDOM 6000 S3 three-layer cassette sterilizer measures 600×280×660mm and weighs 75kg. It is equipped with 3 cassettes (each 6.0L) with external dimensions of 570×196×80mm and internal dimensions of 480×180×78mm. It uses steam as the medium, operating at 138℃ and 242kPa.
Power: 3.9kVA; Water tank: 2.5L (with automatic water filling); Temperature range: 115℃-135℃; Maximum cycles: ≤6 per hour.
Power supply: AC 220V±22V, 50Hz±1Hz. Compatible with water sources like ultrapure water, distilled water, etc. Suitable for workshop use.

Equipment Length: 600mm
Equipment Width: 280mm
Equipment Height: 660mm
Net Weight of Main Body: 75kg
Power: 3.9kVA
External Dimensions of Cassette: 570×196×80mm
Internal Dimensions of Cassette: 480×180×78mm
Cassette Volume: Approximately 6.0L * 3
Rated Operating Temperature: 138℃
Rated Operating Pressure: 242kPa
Operating Temperature Range: 115℃～135℃
Water Tank Capacity: 2.5L (with automatic water filling function)
Power Supply Range: AC 220V±22V; 50Hz±1Hz
Working Medium: Steam
Water Source Supply: Ultrapure water, deionized water, laboratory water, distilled water, purified water
Working Mode: Intermittent operation (≤6 cycles/hour)
Normal Usage Place: Workshop
Atmospheric Pressure Range: 70.0kPa～106.0kPa
Ambient Temperature Range: +5℃～+40℃
Relative Humidity During Operation: ≤85%

Key Advantages

Space-Saving: Requires minimal space! One unit replaces three traditional units, with a footprint equivalent to that of a single conventional device.
Layered Independent Control: Each layer can be controlled independently.
