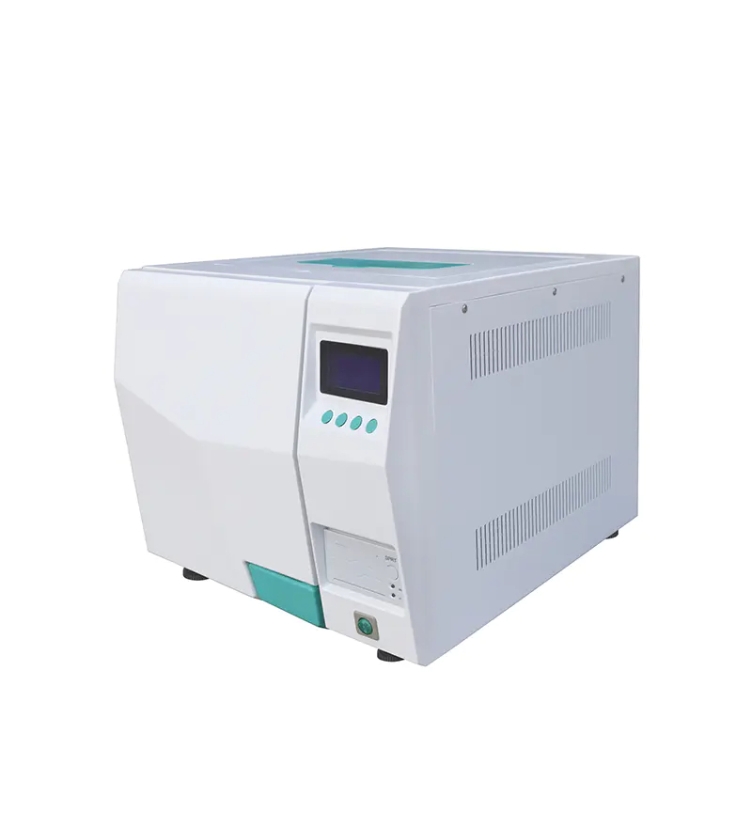

Table Top Pulse Vacuum Steam Sterilizer BJ

  • Class B table – type sterilizers (TM – 12DV, 12L; TM – 20DV, 18L; TM – 24DV, 24L) for medical, lab use. Offer 3 – cycle vacuum/drying, LCD touch control, – 0.8bar vacuum for full sterilization of varied instruments.

  • Equipped with BOWIE&DICK test, vacuum test, fast steam generator, mini printer. Safety features: valves, locks, overload protection, alarms. Efficiently inactivate pathogens like HIV, HBV. Open – tank design for easy water management.

  • Uniform specs: 134℃/0.22Mpa, 105 – 134℃ temp range, ≤±1℃ heat stability. Power 1.8 – 2KW, compact dimensions (480×600×400 to 480×680×455mm), ensure reliable, compliant sterilization.

Description

The table-type sterilizers are safely auto-controlled and are designed for dental clinics, hospitals, school labs, scientific research institutions, and laboratories. And suitable for sterilizing of surgical, dental, and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.

●Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instrument is less than 0.2%.
● LCD display working status, touch keys.
● The vacuum data can reach -0.8 bar, it fits various instruments, including package, unpackaged, solid, hollow, multi-apertures, and inset pipes. It makes sure the instrument can be sterilized completely.
● Fully computer-controlled LCD display bright show. The interface is a modularized panel for easy operation.
● It is installed with BOWIE&DICK which measures the penetration of water steam.
● It has a vacuum test which can ensure the ability of vacuum testing.
● Fast and independent steam generator.
● Built-in mini printer which can record the sterilizing information.
● Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection, and Alarm system.
● It inactivates the HIV, HBV, BSE, and bacillus efficiently.
● This product is designed for open water tanks, water purification, and sewage tank separation, convenient and intuitive.

MODEL/Technical Data TM – 12DV TM – 20DV TM – 24DV
Sterilizing chamber volume 12L 18L 24L
Φ200×370mm Φ250×360mm Φ250×470mm
Working pressure 0.22Mpa 0.22Mpa 0.22Mpa
Working temperature 134℃ 134℃ 134℃
Temperature adjust range 105 – 134℃ 105 – 134℃ 105 – 134℃
Timer range 0 – 99min 0 – 99min 0 – 99min
Heat average ≤±1℃ ≤±1℃ ≤±1℃
Power AC220V 50Hz/1.8KW AC220V 50Hz/2KW AC220V 50Hz/2KW
Dimension(mm) 480×600×400 480×680×455 480×680×455
Exterior package dimension 580×790×580 580×790×580 580×790×580
G.W/N.W 48kg/43Kg 56kg/47kg 57kg/53kg
