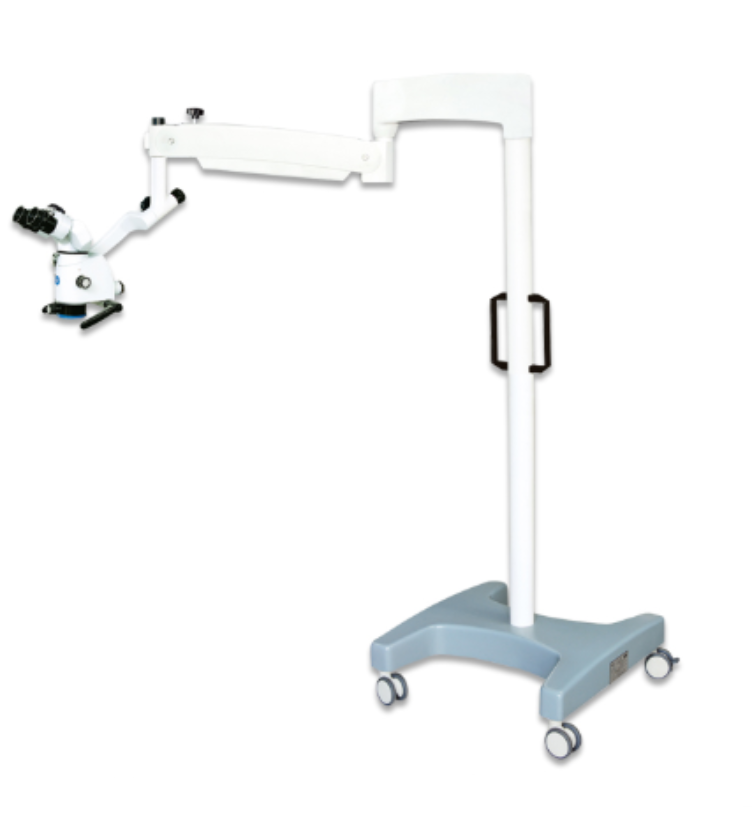

Surgical Microscope ZJ LZJ-6EL Basic Type Model A
-
Binocular tube: 0-180° optical hinge angle, 50-80mm interpupillary adjustment for dual – operator collaboration
-
Zoom & field: 5 – speed drum zoom (3.4x-20.5x), Φ66-10.4mm field suits delicate procedures
Description
Serial No. |
Standard Configuration |
Technical Parameters |
|---|---|---|
1 |
Binocular Tube |
0 – 180° Optical Hinge – type Variable – angle Binocular Tube |
2 |
Focal Length of Binocular Tube |
F = 170mm |
3 |
Rotary Pupil Distance Adjuster for Binocular Tube |
Adjustment Range: 50mm – 80mm |
4 |
Field of View Diameter |
Φ66mm – Φ10.4mm |
5 |
Eyepiece Magnification |
12.5X/18B |
6 |
Diopter Adjustment Range |
±6D |
7 |
Five – speed Drum Zoom System |
Magnifications: 3.4x, 5.1x, 8.3x, 13.5x, 20.5x |
8 |
Apochromatic Objective with Fine Focus |
Working Distance of Objective: 250mm, Adjustable Focus Range: 20mm |
9 |
Double Handgrips with Adjustable Angle |
– |
10 |
Illuminance of LED – illuminated Object Surface (F = 250) |
Maximum Illuminance ≥ 30000 – 60000lx, Adjustable Brightness, with Automatic Light – off and Power – off Switch Device |
11 |
Diameter of Illuminated Light Spot (F250) |
Φ85mm |
12 |
Color Filter Regulator |
Yellow Color Filter, Green (Achromatic) Color Filter, Heat – Insulating Sheet |
13 |
Floor – standing Movable Frame |
Including Base, Column, Large Horizontal Arm (510mm), Small Horizontal Arm (620mm), etc. Maximum Extension Reach: 1350mm, Height: 1750mm, Vertical Lifting Range ≥ 350mm |
14 |
120° Damping – type Balanced Cantilever |
Can Rotate with Damping Balance in Six Degrees of Freedom (Up, Down, Left, Right, Front, Back) |
